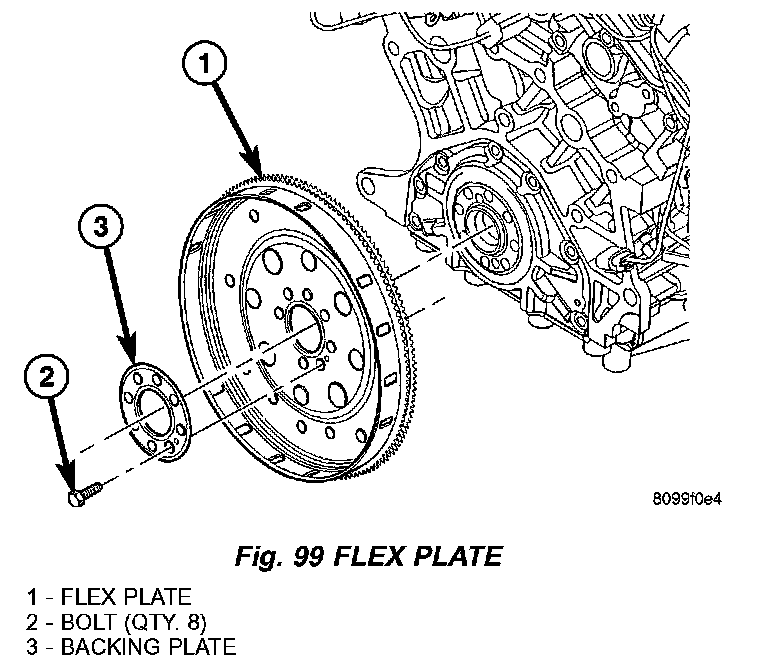

Flex Plate





Flex plate to Crankshaft 95 Nm (70 ft. lbs.)
Flex plate to Torque Converter 75 Nm (55 ft. lbs.)
