VTSS Will Not Arm

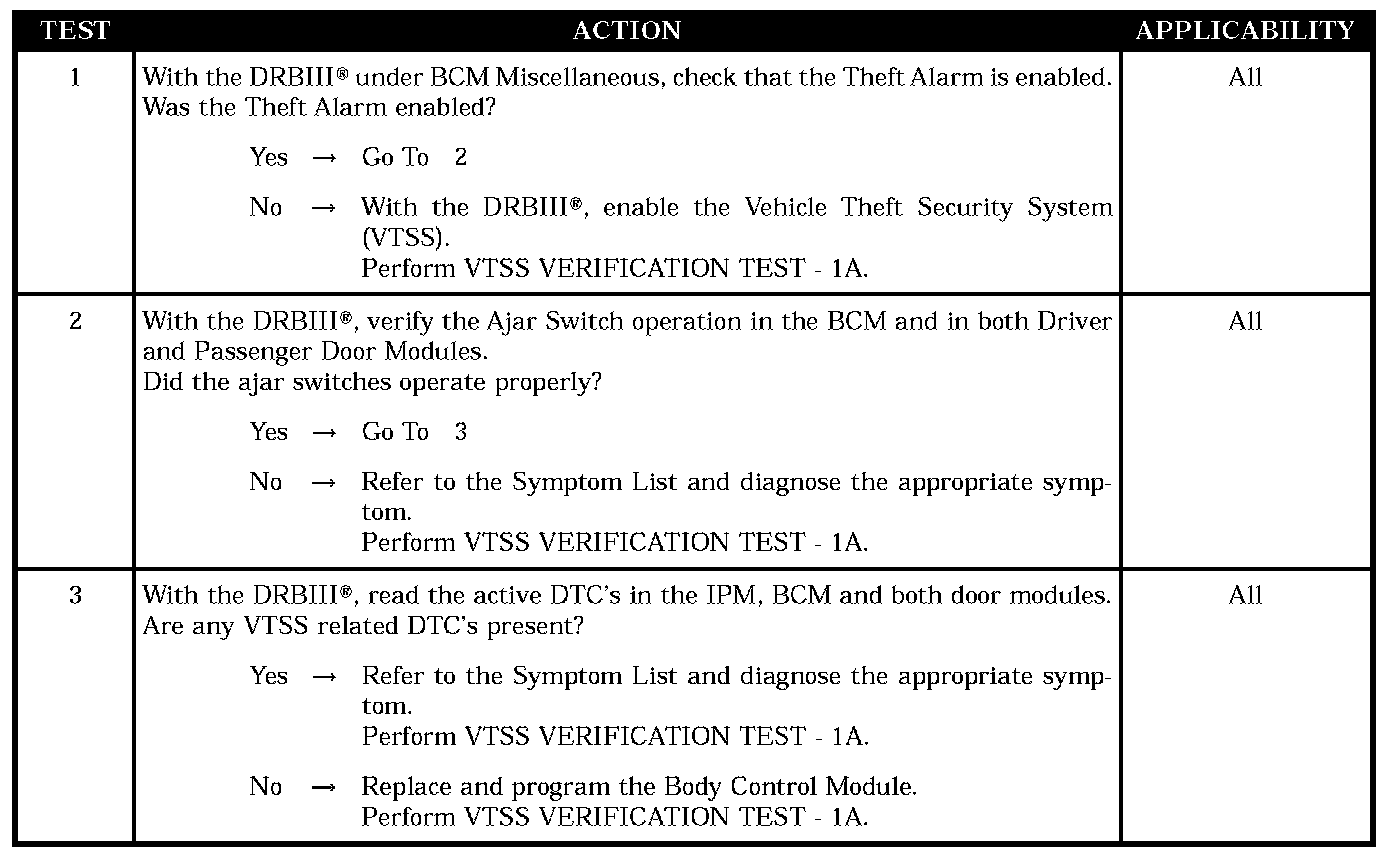

Test 1 - 3:






SYMPTOM
VTSS WILL NOT ARM

POSSIBLE CAUSES
- Check the VTSS status
- AJAR switch
- Check for DTCS
- Body control module - no alarm output
