Audio System
>>
Amplifier Pretest
Amplifier Pretest

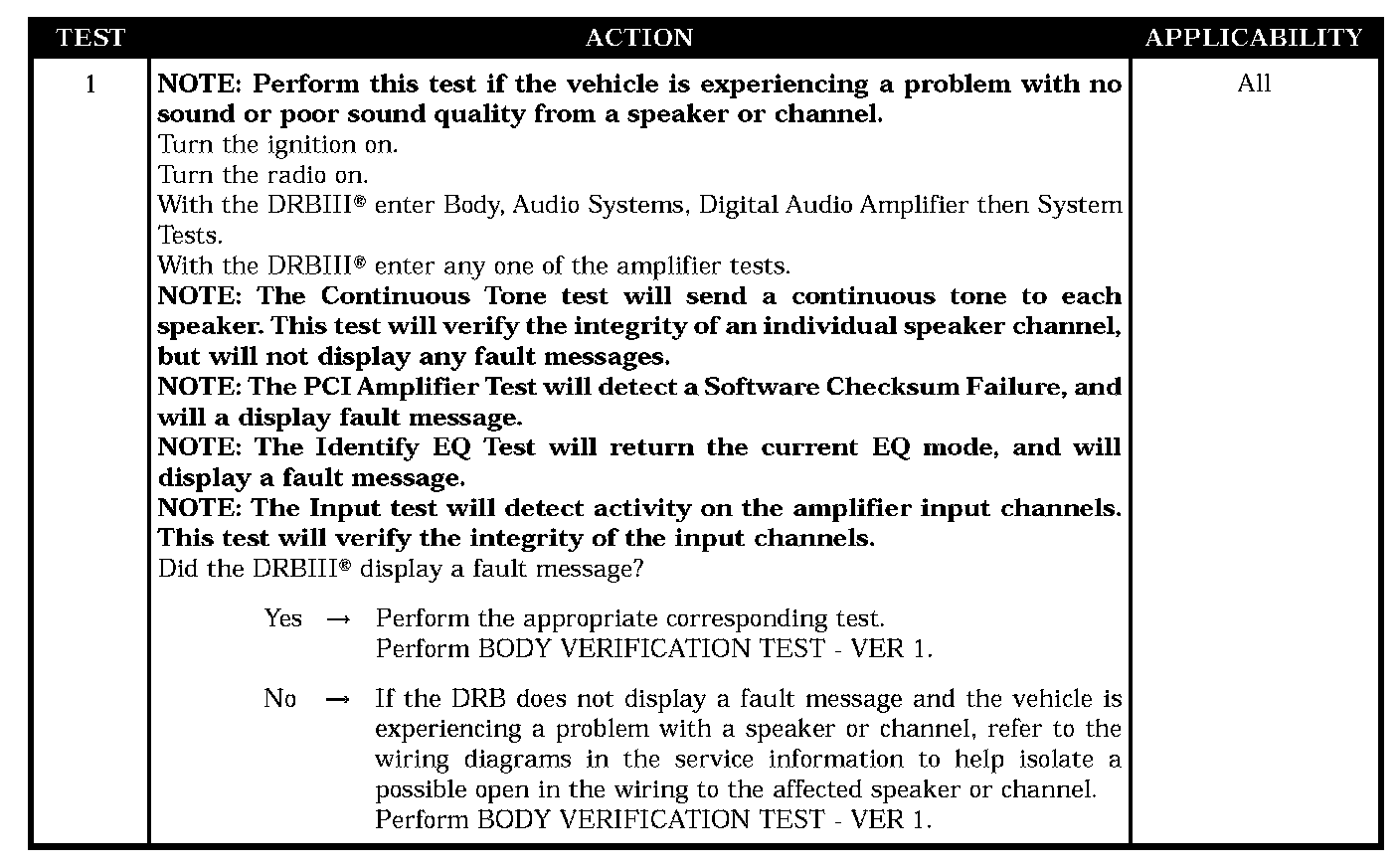

Test 1:
SYMPTOM
AMPLIFIER PRETEST
POSSIBLE CAUSES
-
Amplifier pretest
-
No fault message displayed
