Battery Temperature Sensor: Locations

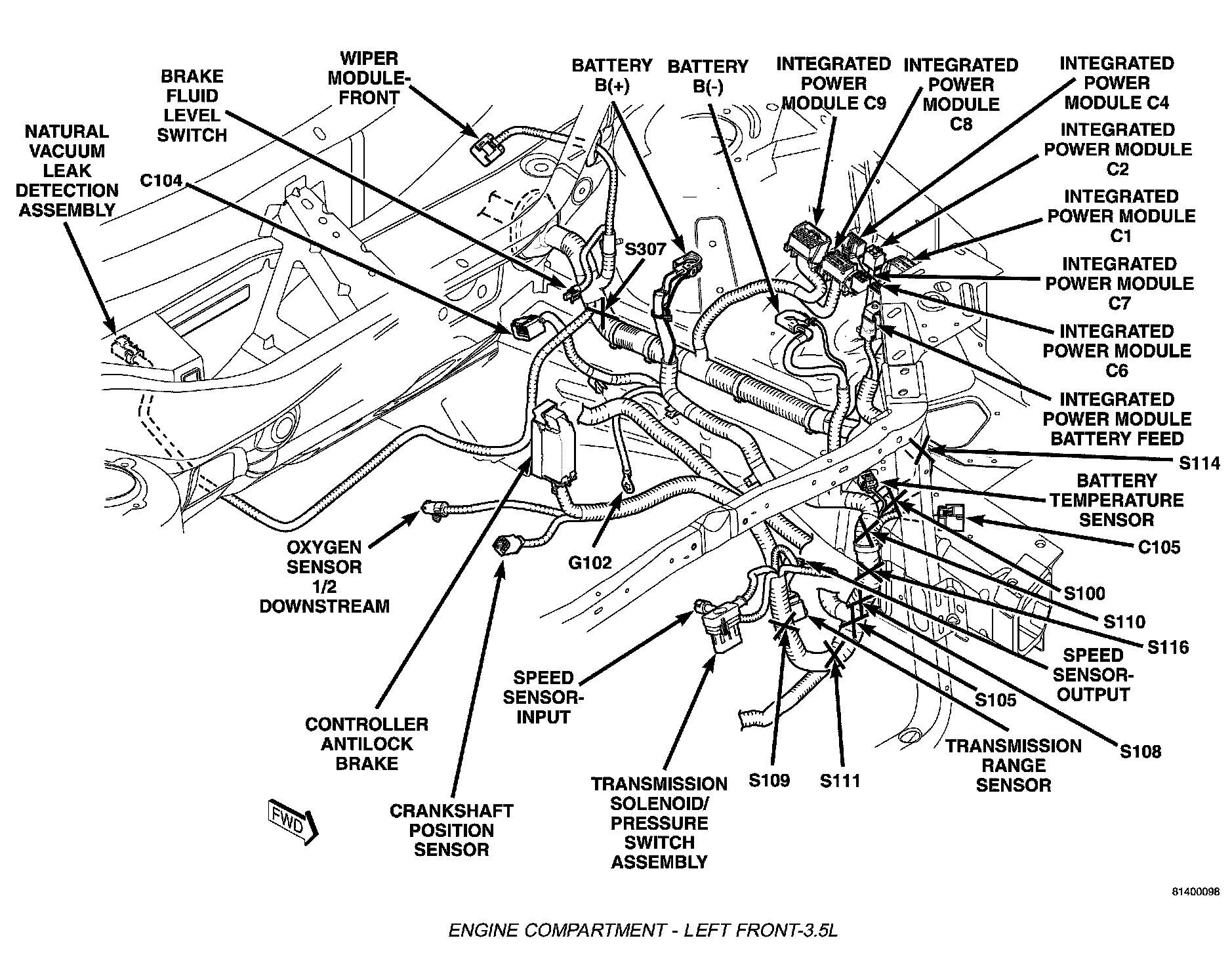

Engine Compartment - Left Front-3.5L:



Engine Compartment - Left Front And Rear:

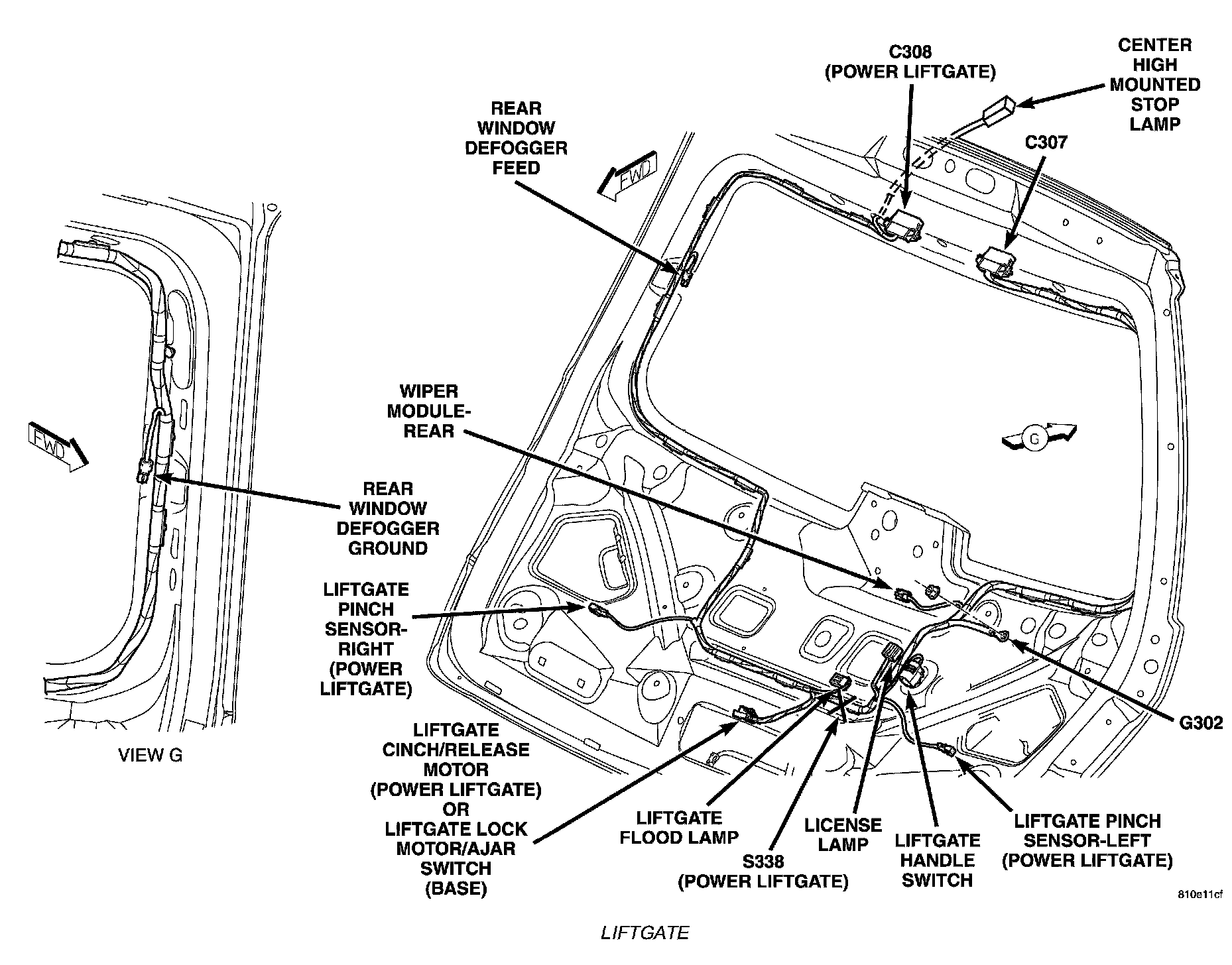

Liftgate:
