Wheel Speed Sensor
Wheel Speed Sensor

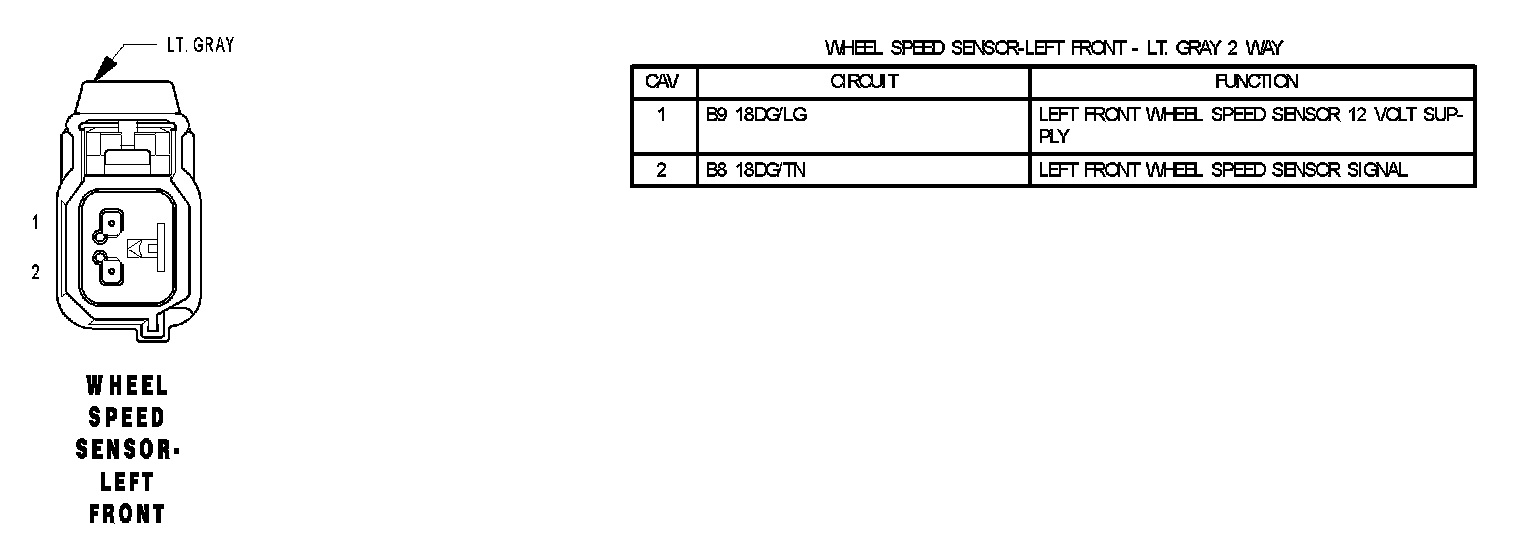

Wheel Speed Sensor - Left Front:

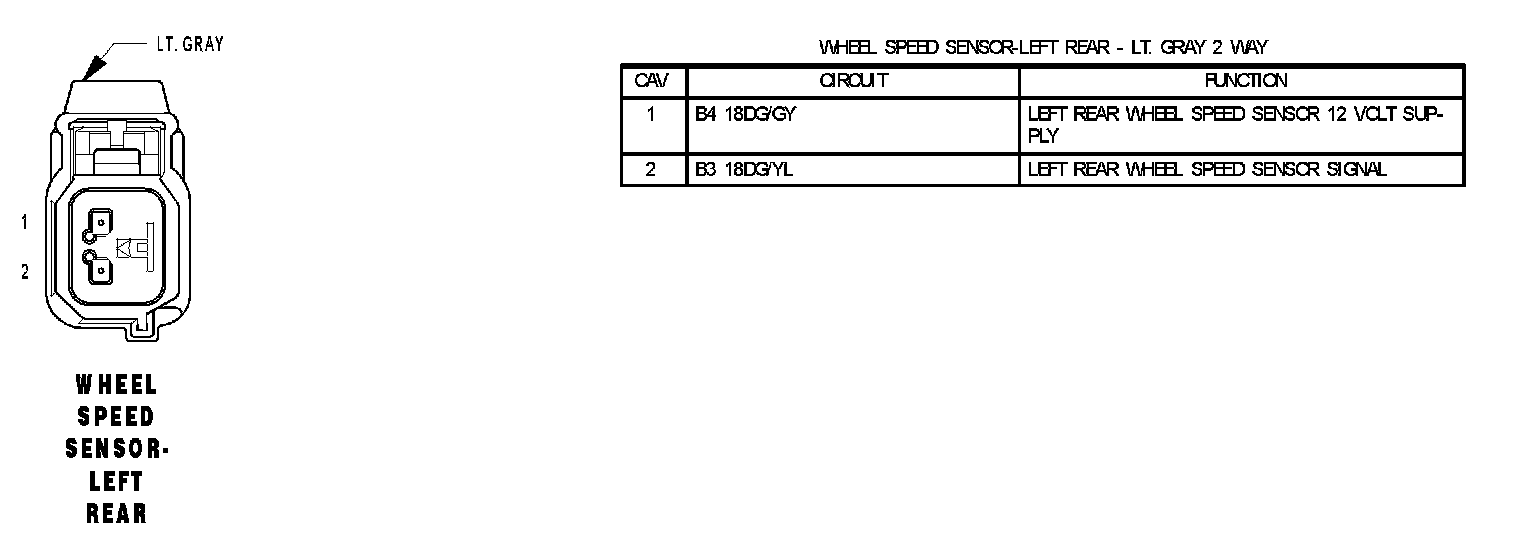

Wheel Speed Sensor - Left Rear:

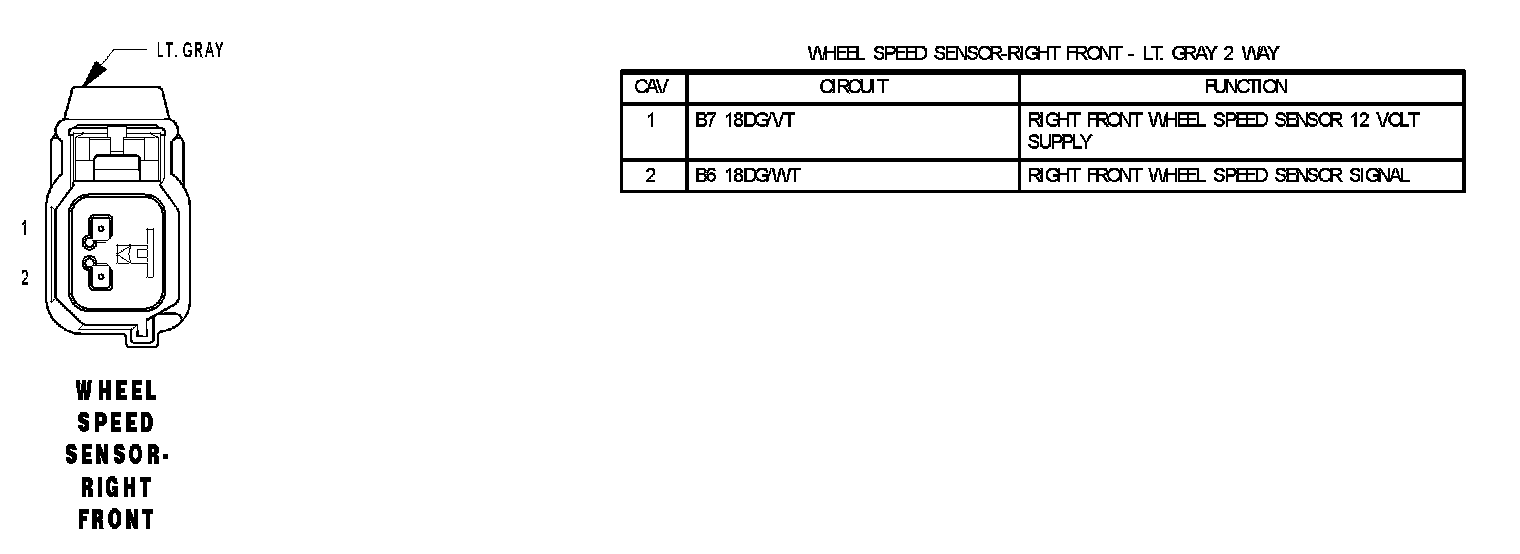

Wheel Speed Sensor - Right Front:

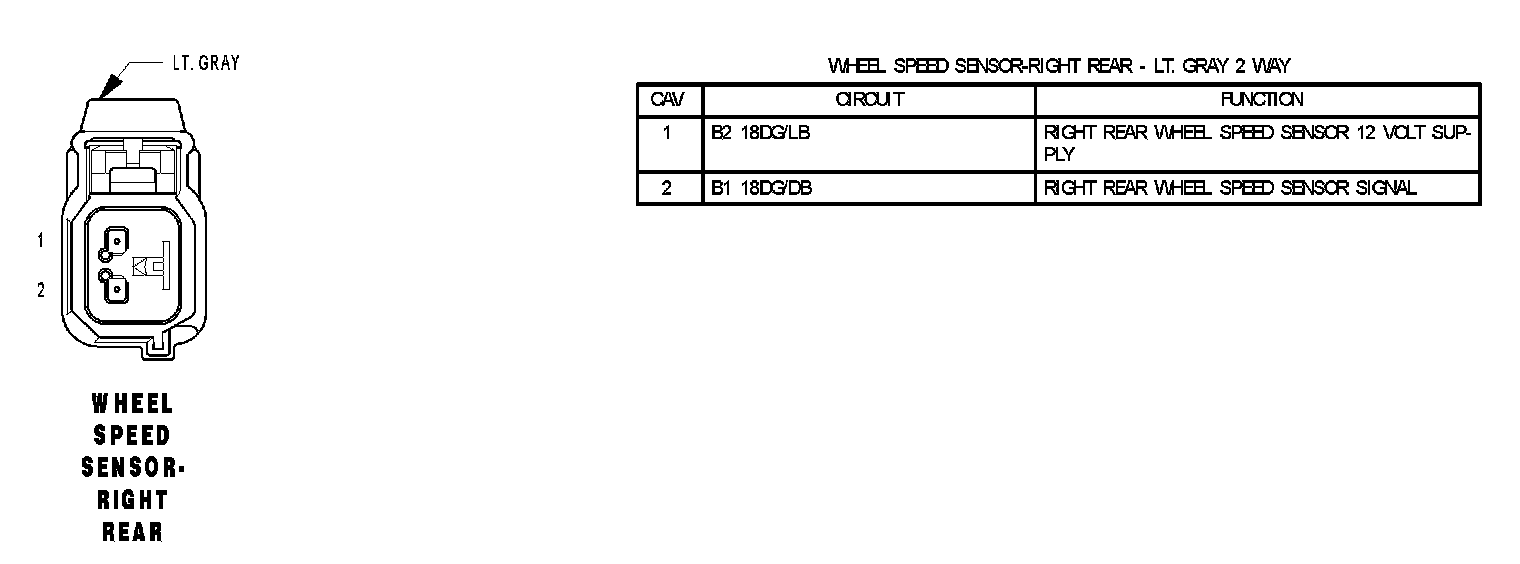

Wheel Speed Sensor - Right Rear:
