Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

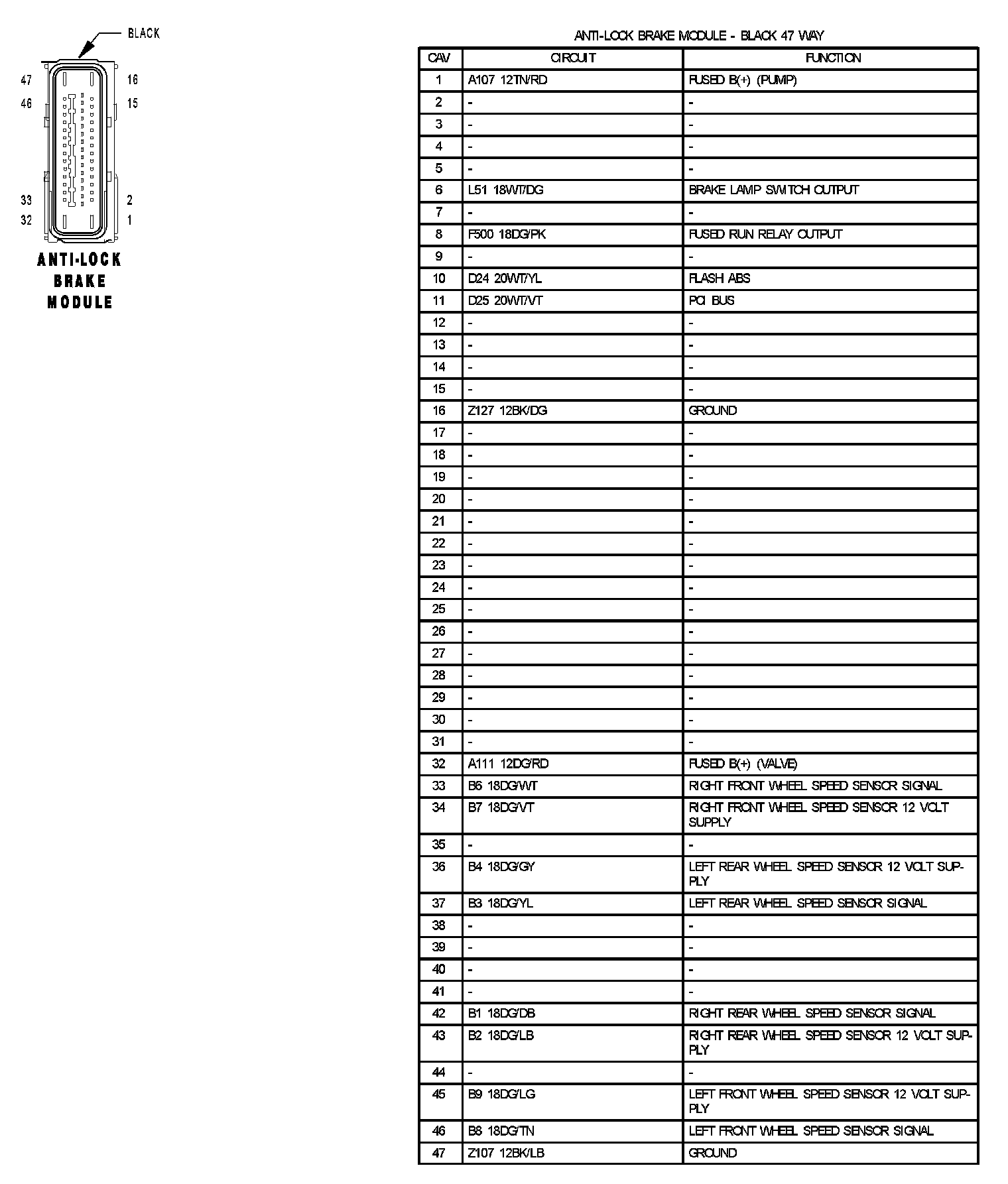

Electronic Brake Control Module
Electronic Brake Control Module
Anti-lock Brake Module:
