Component Locations

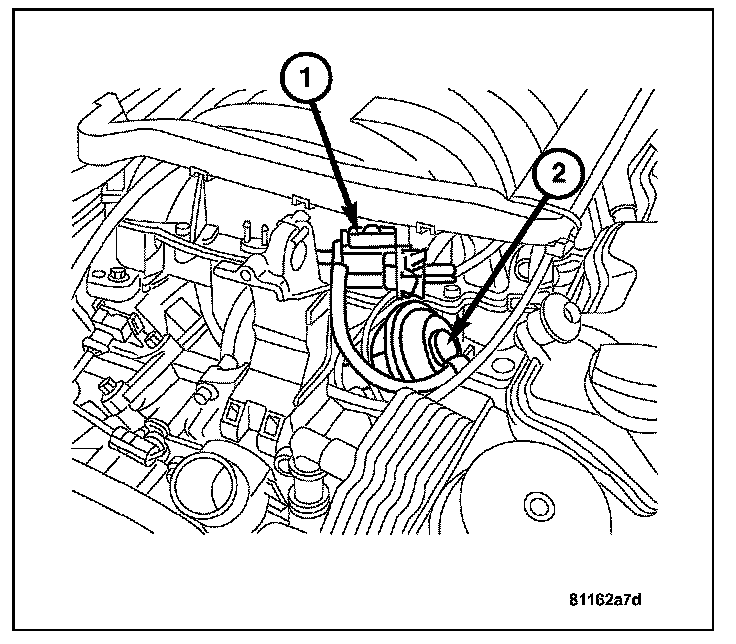

The Manifold Absolute Pressure (MAP) Sensor, is mounted to the front of the engine on the right side next to the air pump.
