Trunk / Liftgate Latch
Trunk / Liftgate Latch

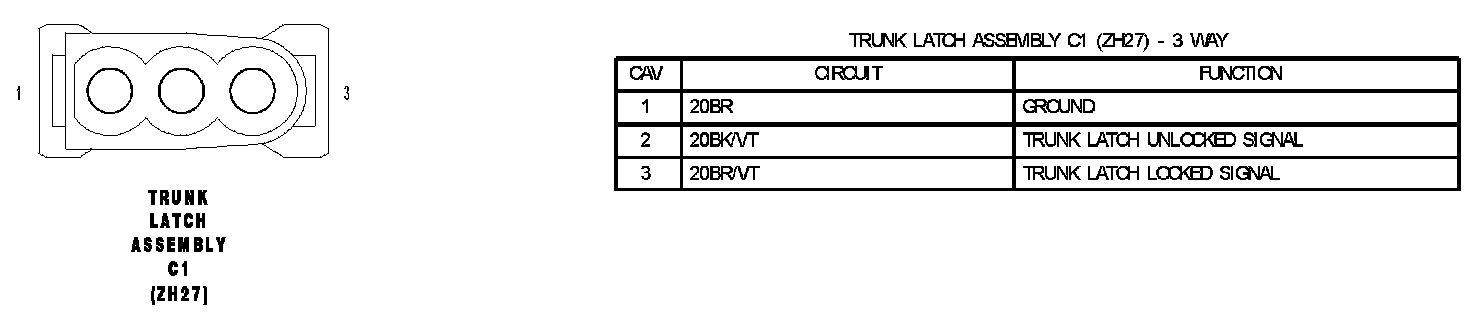

Trunk Latch Assembly C1 (ZH27):

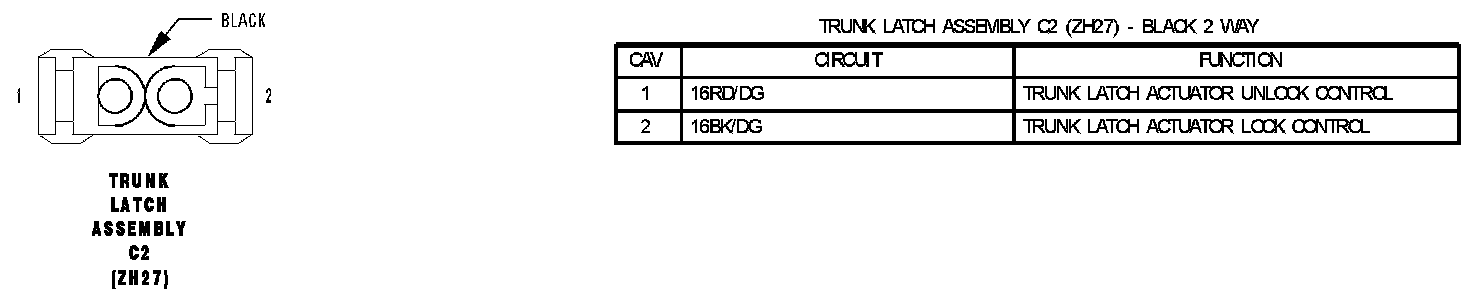

Trunk Latch Assembly C2 (ZH27):
