LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chrysler
>>
2005
>>
Crossfire V6-3.2L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
System Diagram

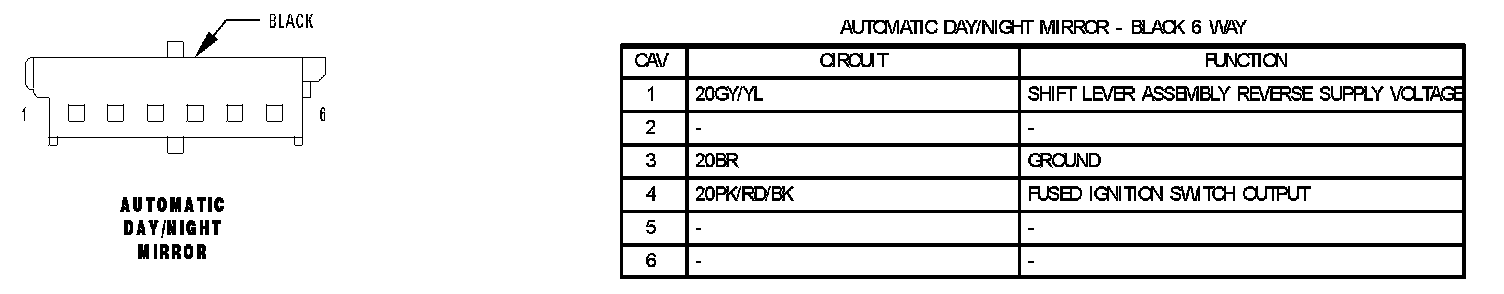

Automatic Day/Night Mirror:

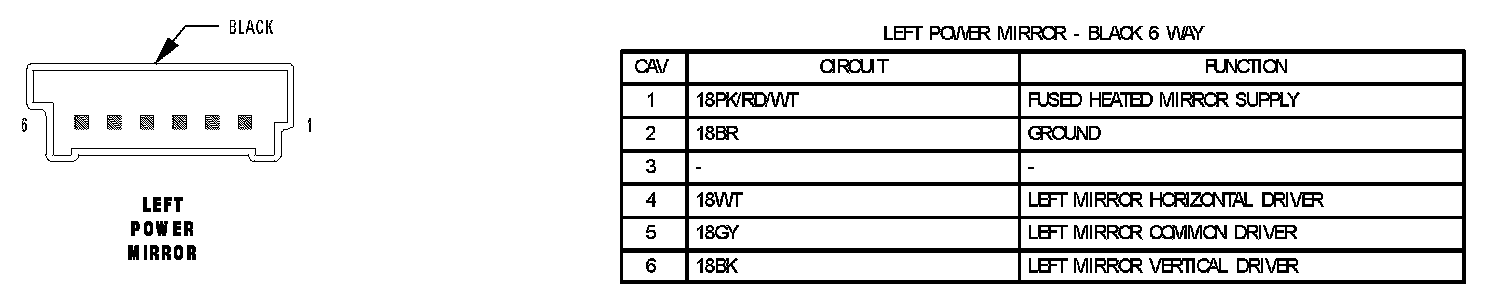

Left Power Mirror:

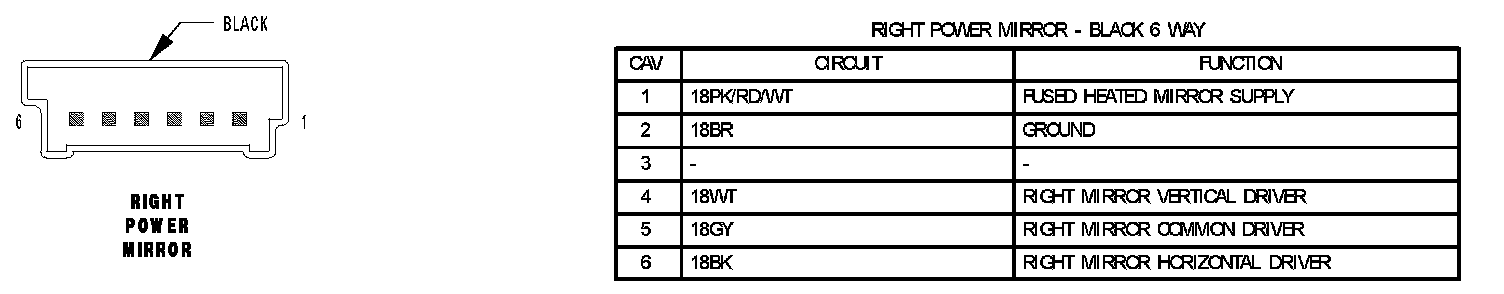

Right Power Mirror:
