Home >> Chrysler >> 2005 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lock Cylinder Switch

Lock Cylinder Switch

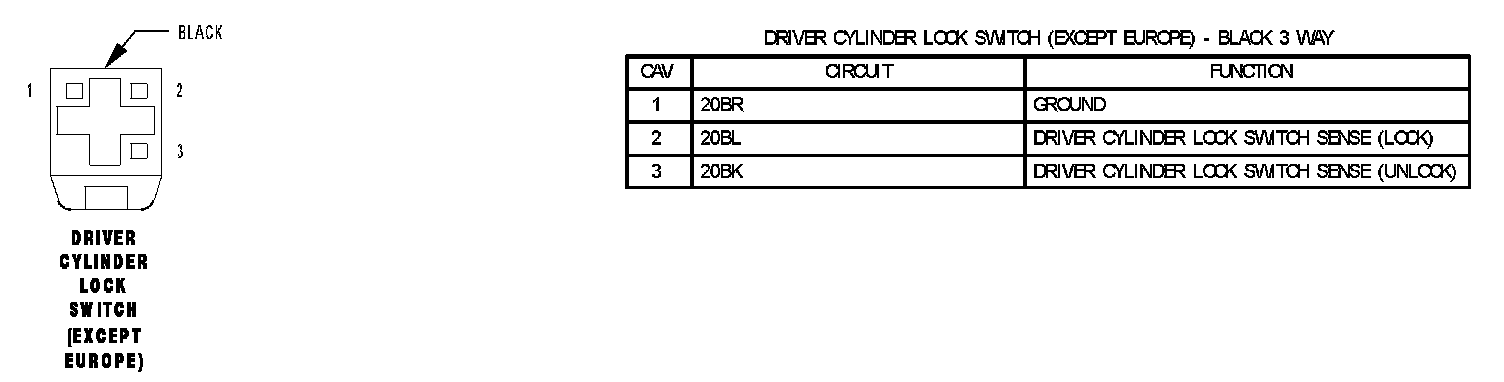

Driver Cylinder Lock Switch (Except Europe):
