Home >> Chrysler >> 2005 >> 300 V8-5.7L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light

Map Light

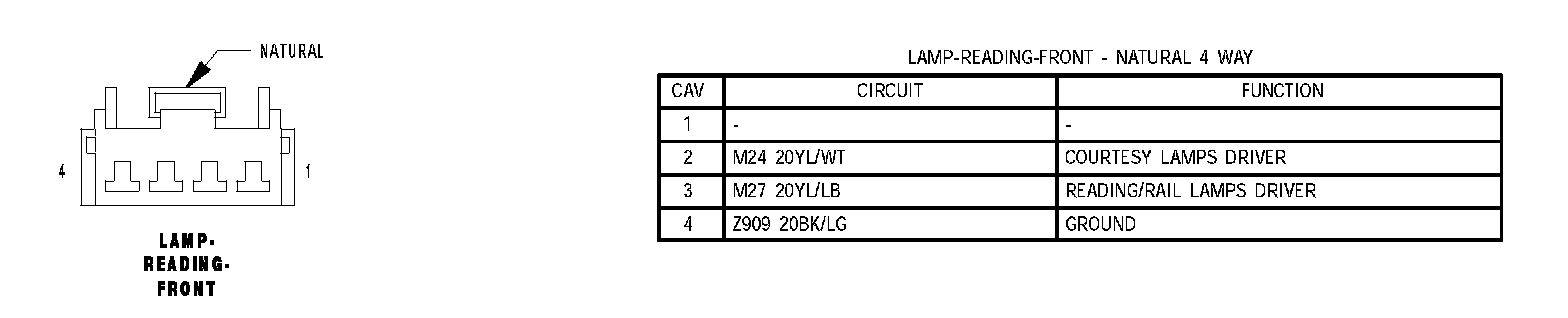

Lamp - Reading - Front:
