Door Module: Service and Repair

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

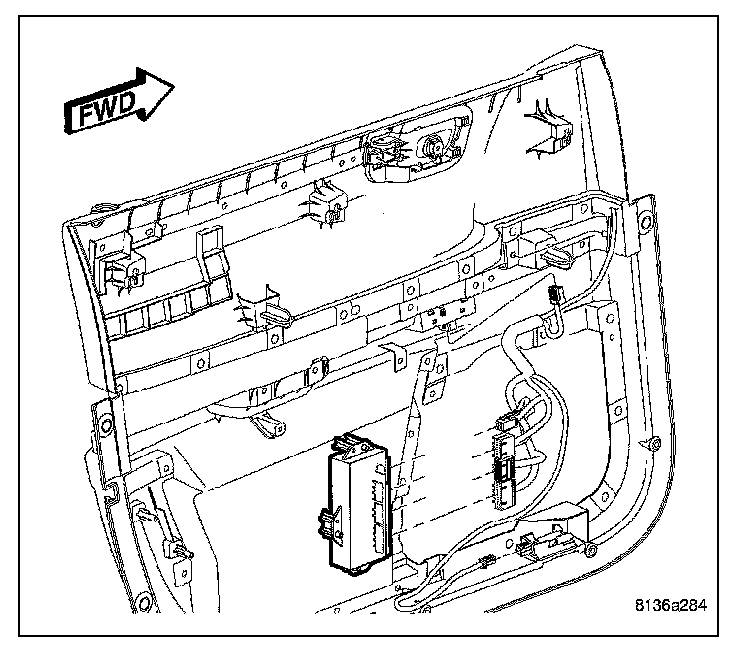

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel.
3. Disconnect electrical harness connectors.
4. Remove mounting fasteners and module.

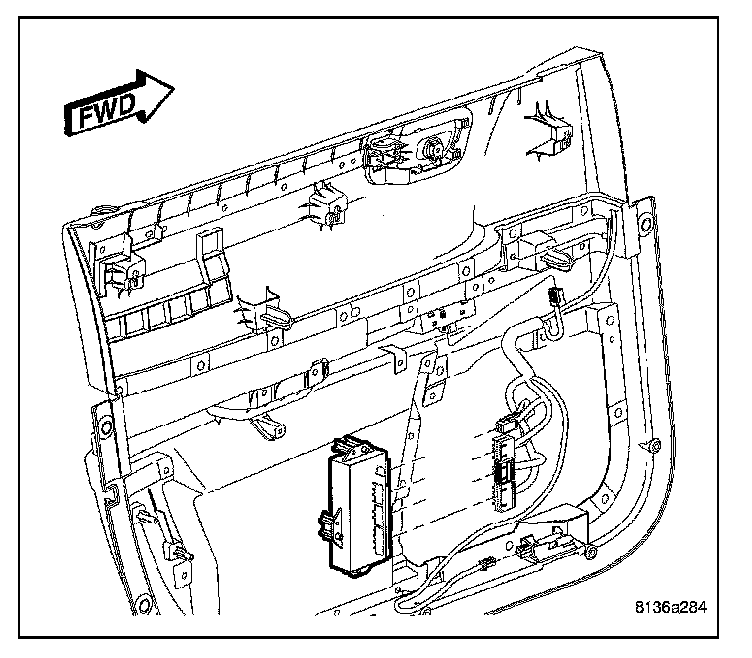

INSTALLATION




1. Position module.
2. Install and tighten mounting fasteners.
3. Connect electrical harness connectors.
4. Install door trim panel.
5. Connect battery negative cable.
