Seat Sensor/Switch
Seat Sensor/Switch

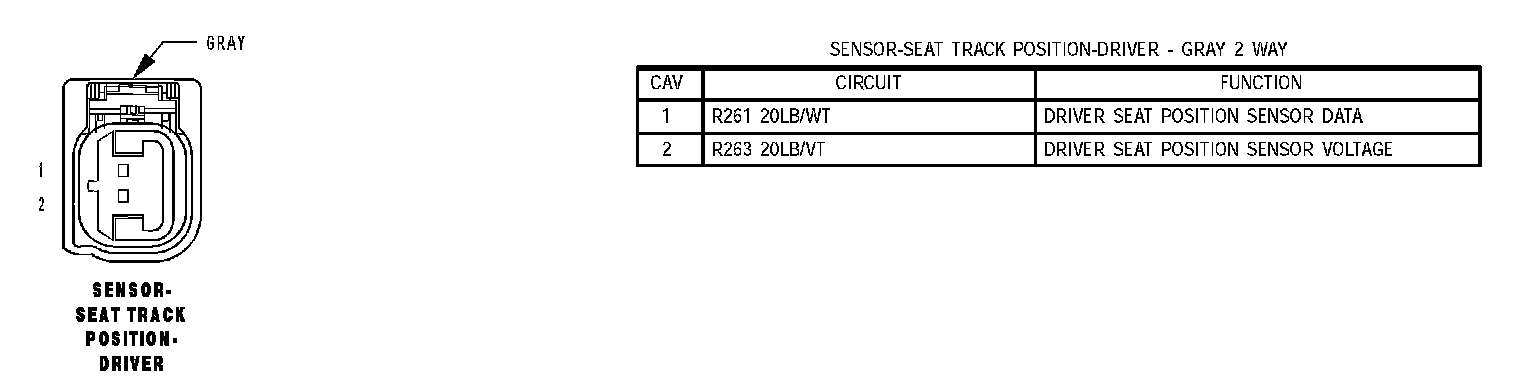

Sensor - Seat Track Position - Driver:

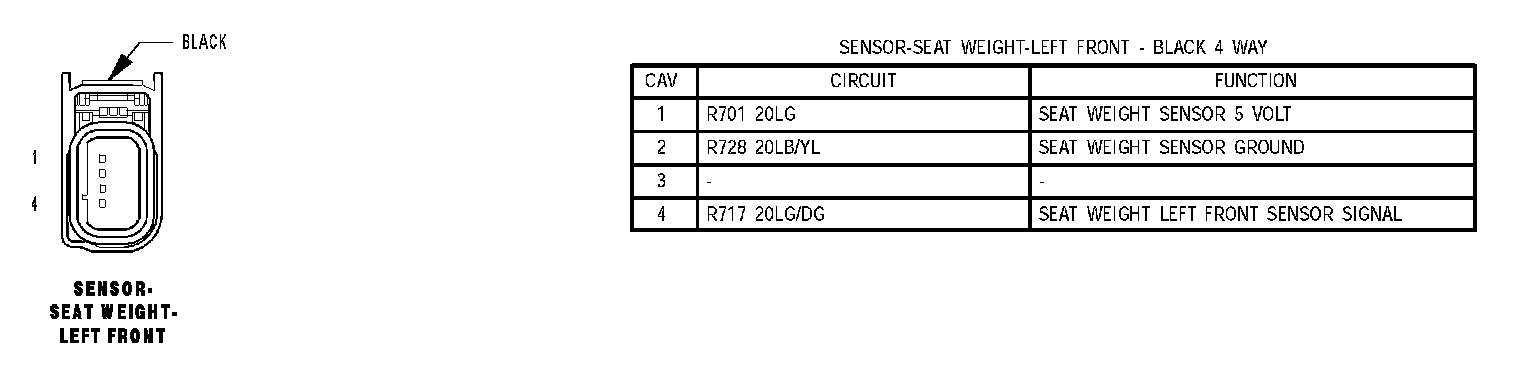

Sensor - Seat Weight - Left Fr4ont:

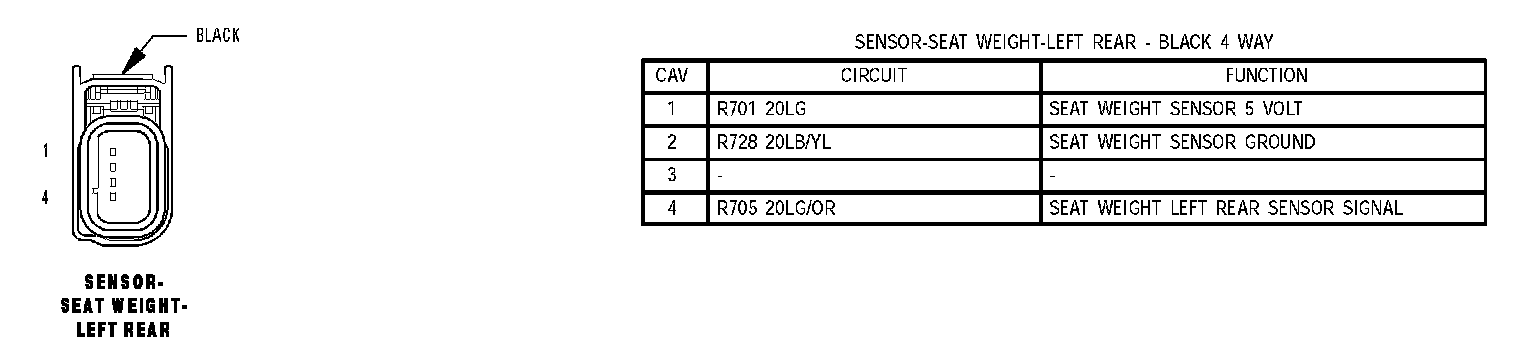

Sensor - Seat Weight - Left Rear:

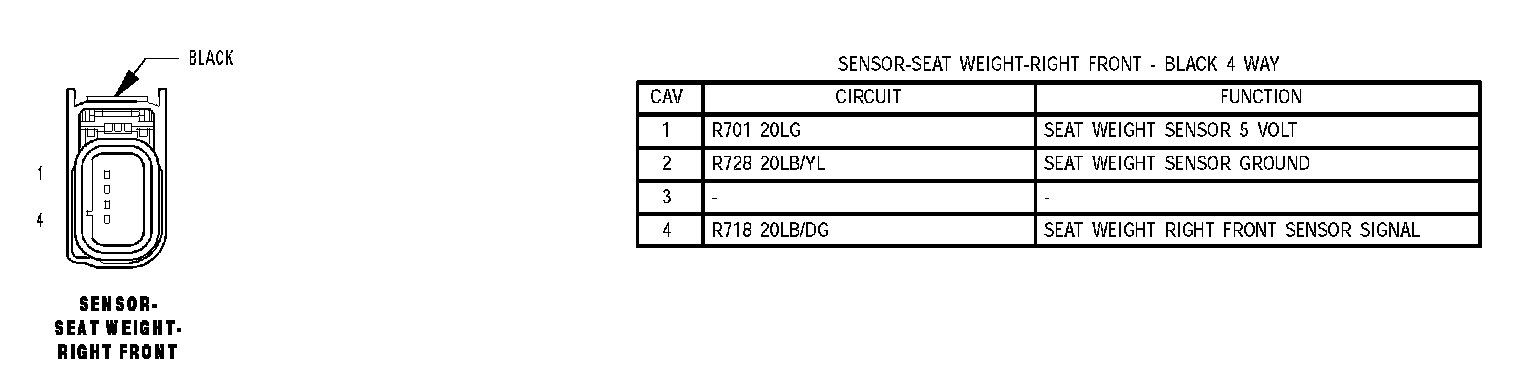

Sensor - Seat Weight - Right Front:

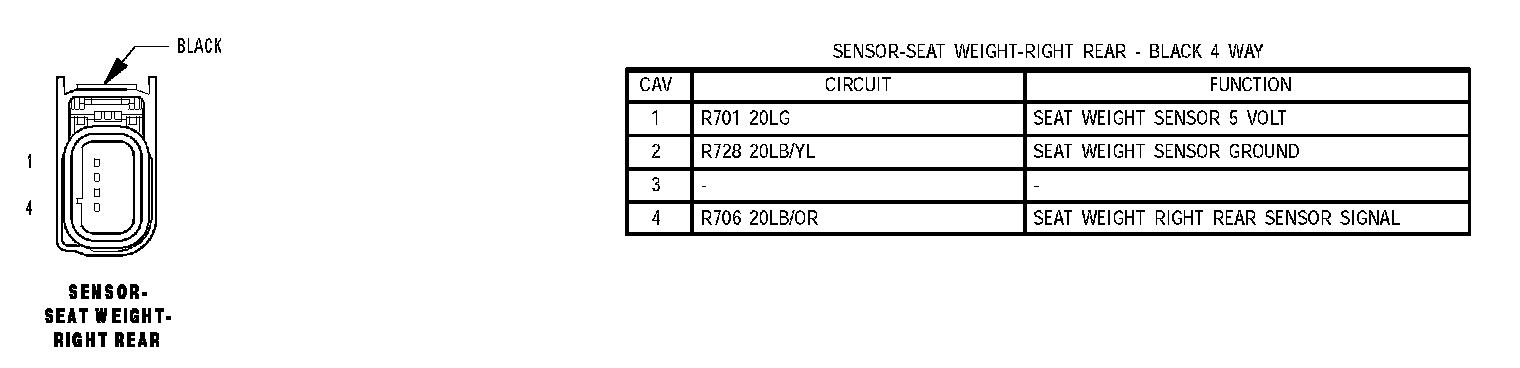

Sensor - Seat Weight - Right Rear:
