Impact Sensor
Impact Sensor

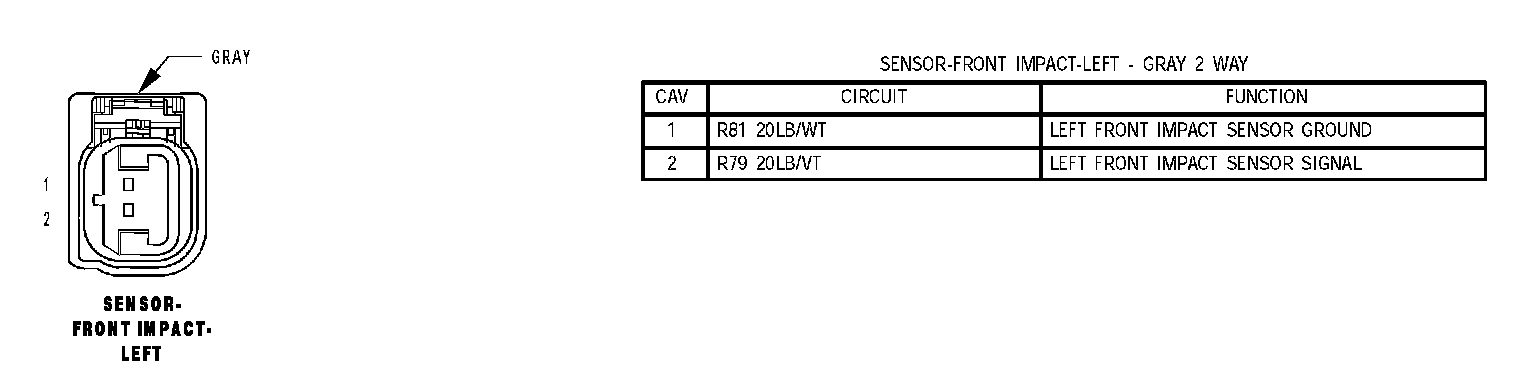

Sensor - Front Impact - Left:

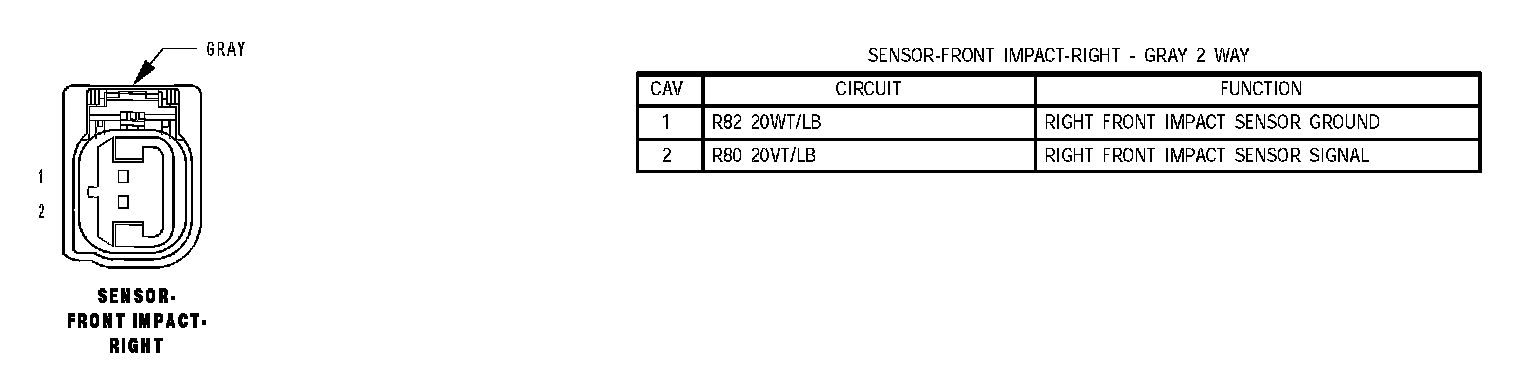

Sensor - Front Impact - Right:

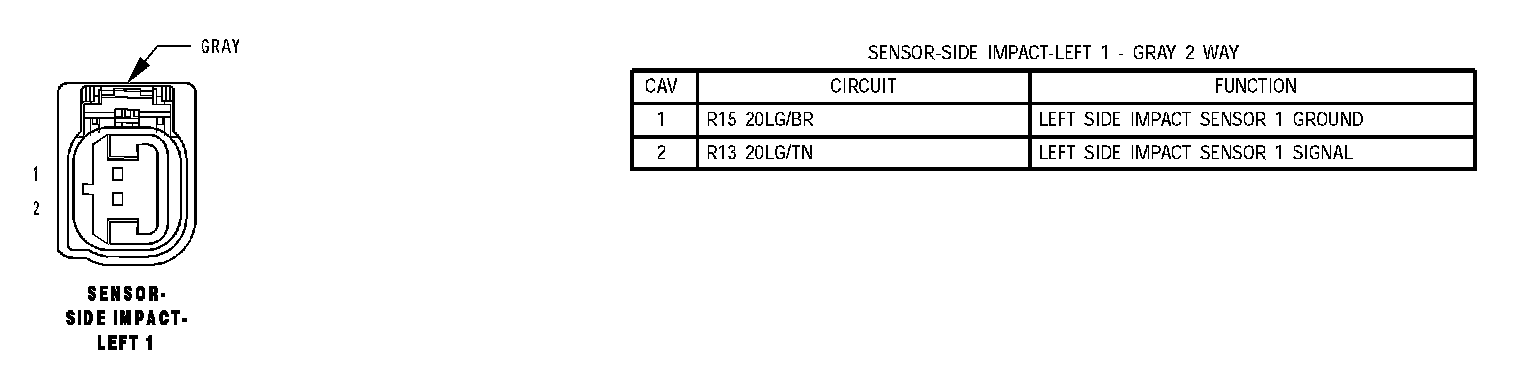

Sensor - Side Impact - Left 1:

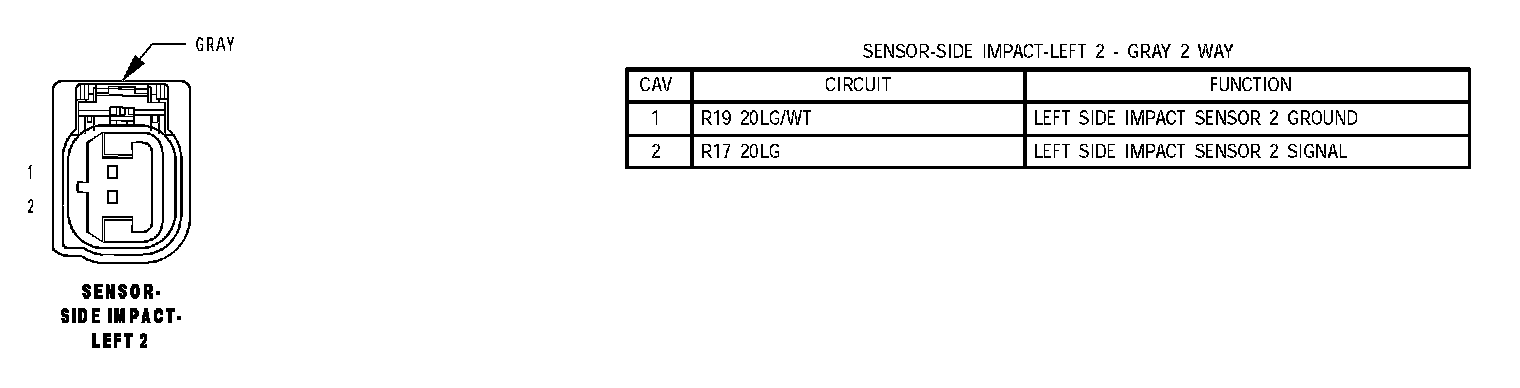

Sensor - Side Impact - Left 2:

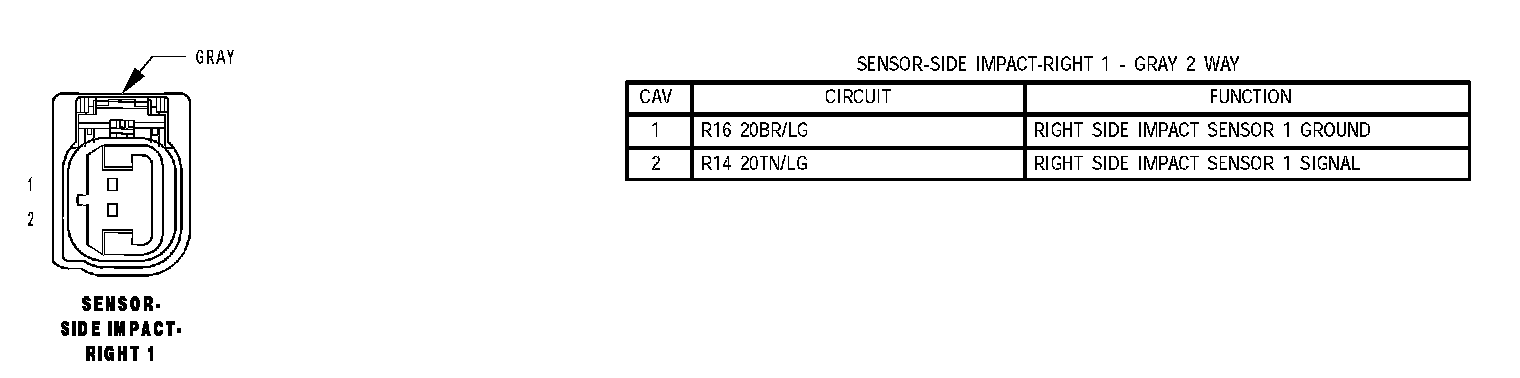

Sensor - Side Impact - Right 1:

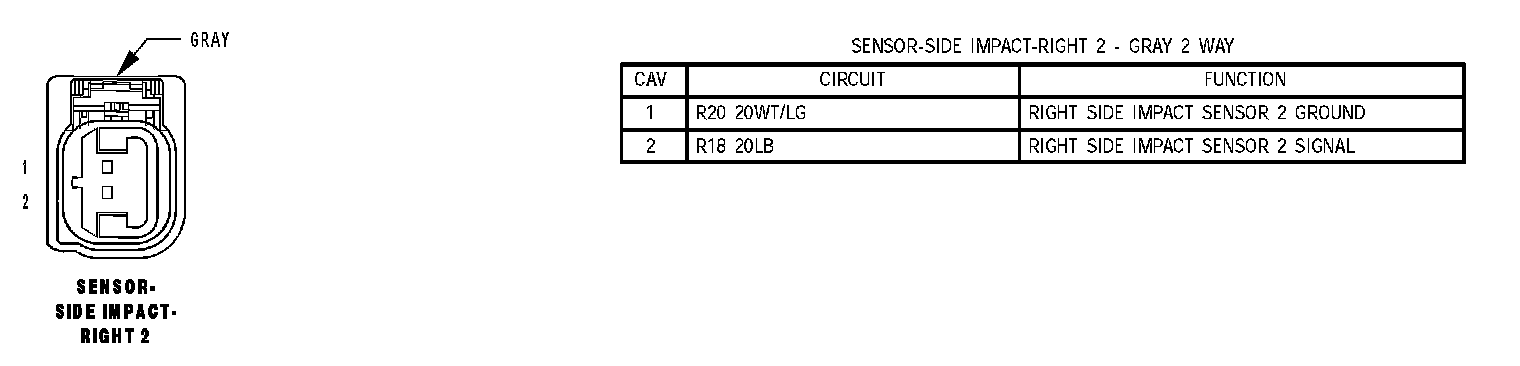

Sensor - Side Impact - Right 2:
