300 V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Braking Sensor/Switch
Braking Sensor/Switch

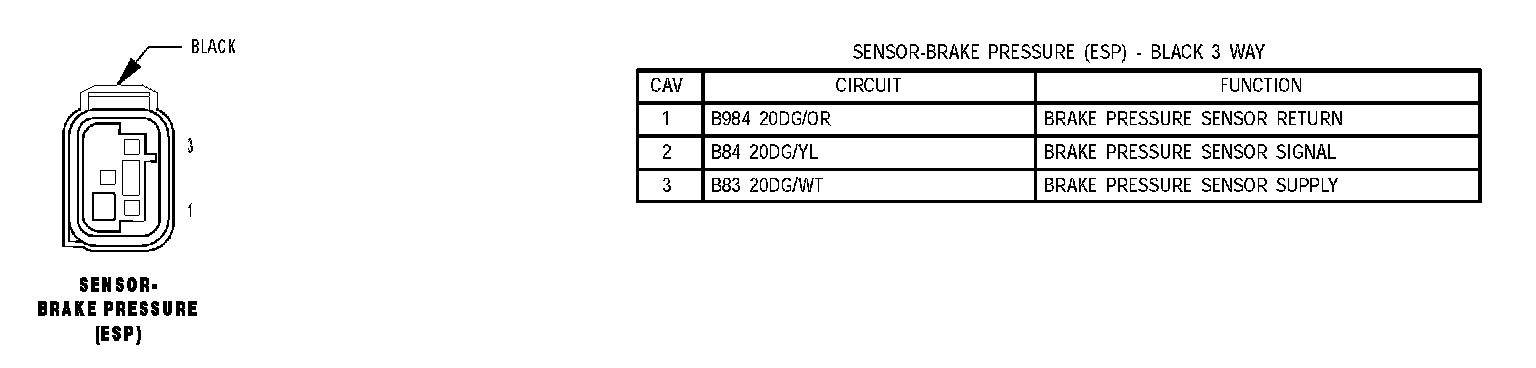

Sensor - Brake Pressure (ESP):

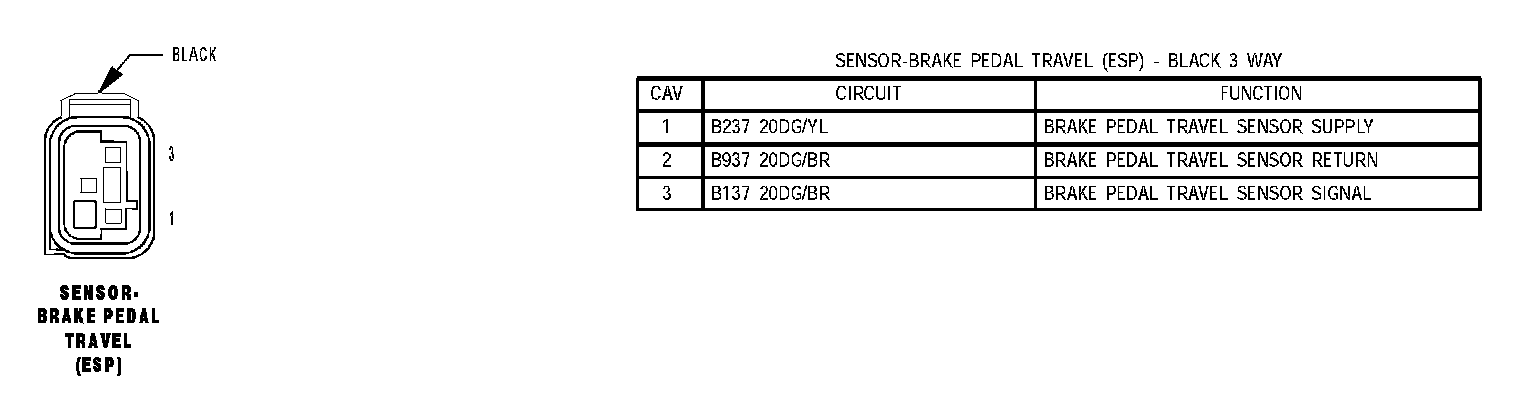

Sensor - Brake Pedal Travel (ESP):
