Air Bag Control Module

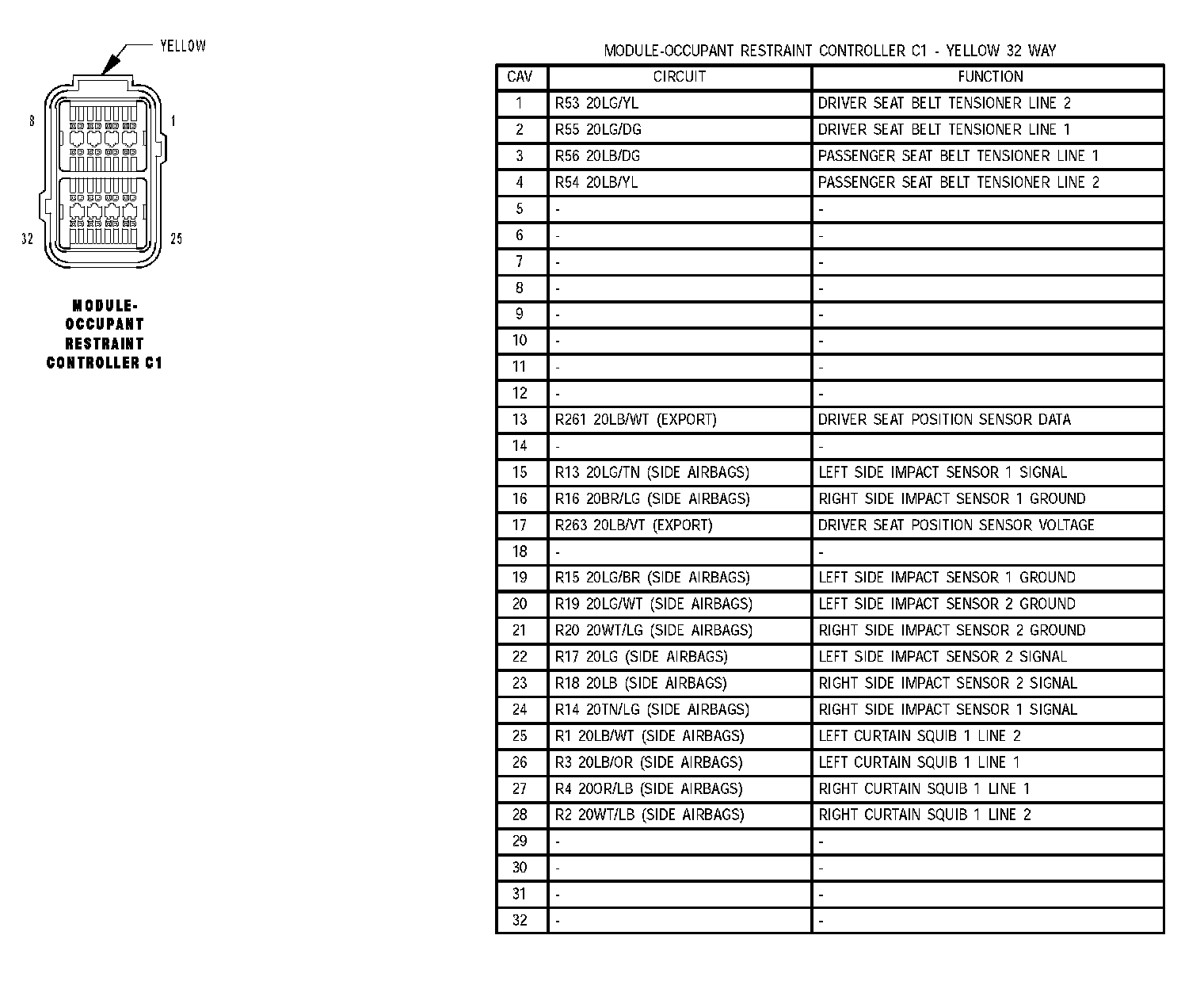

Module - Occupant Restraint Controller C1:

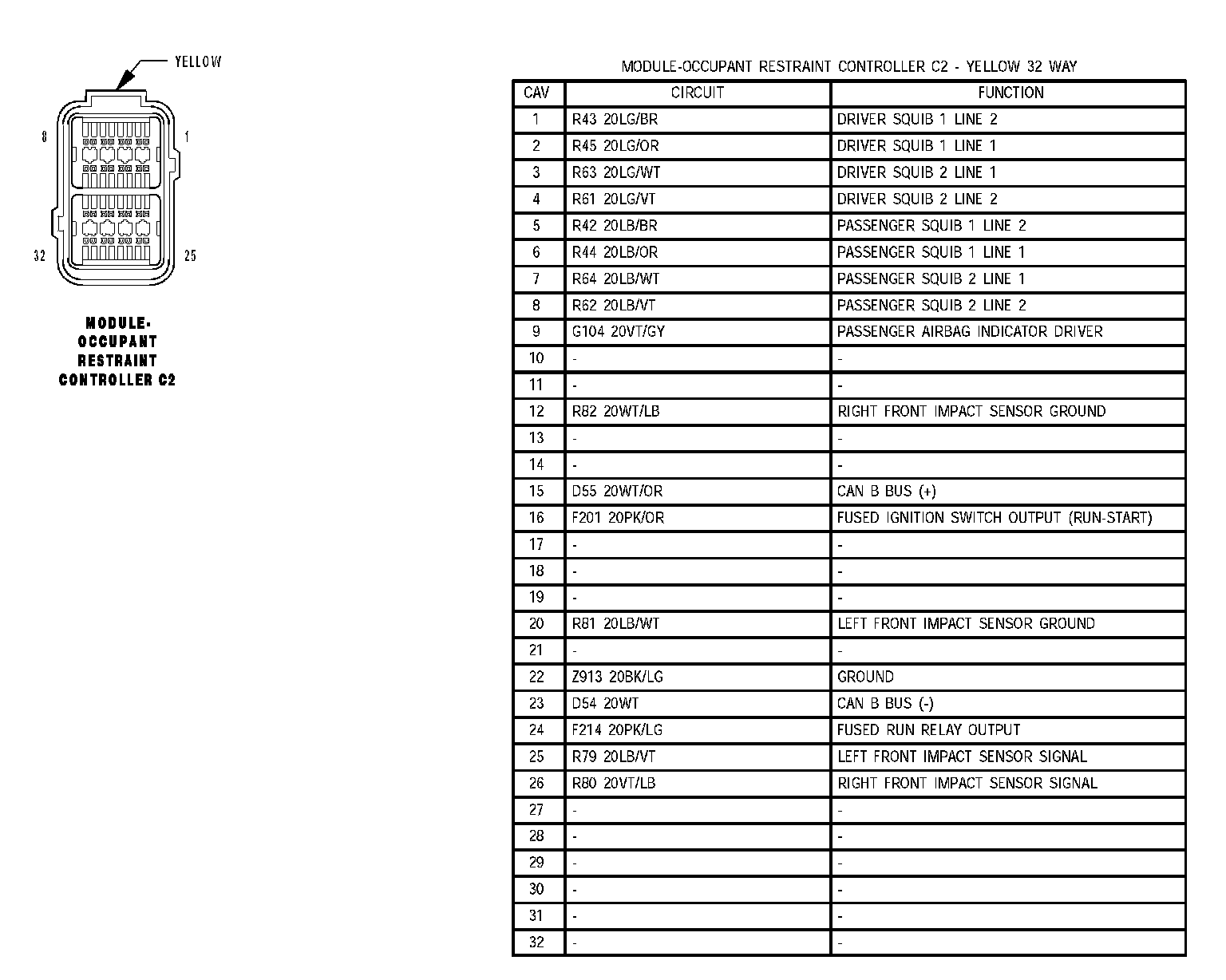

Module - Occupant Restraint Controller C2:
