Anti-Lock Brake System (Service Information): Sensor-Dynamics: Description

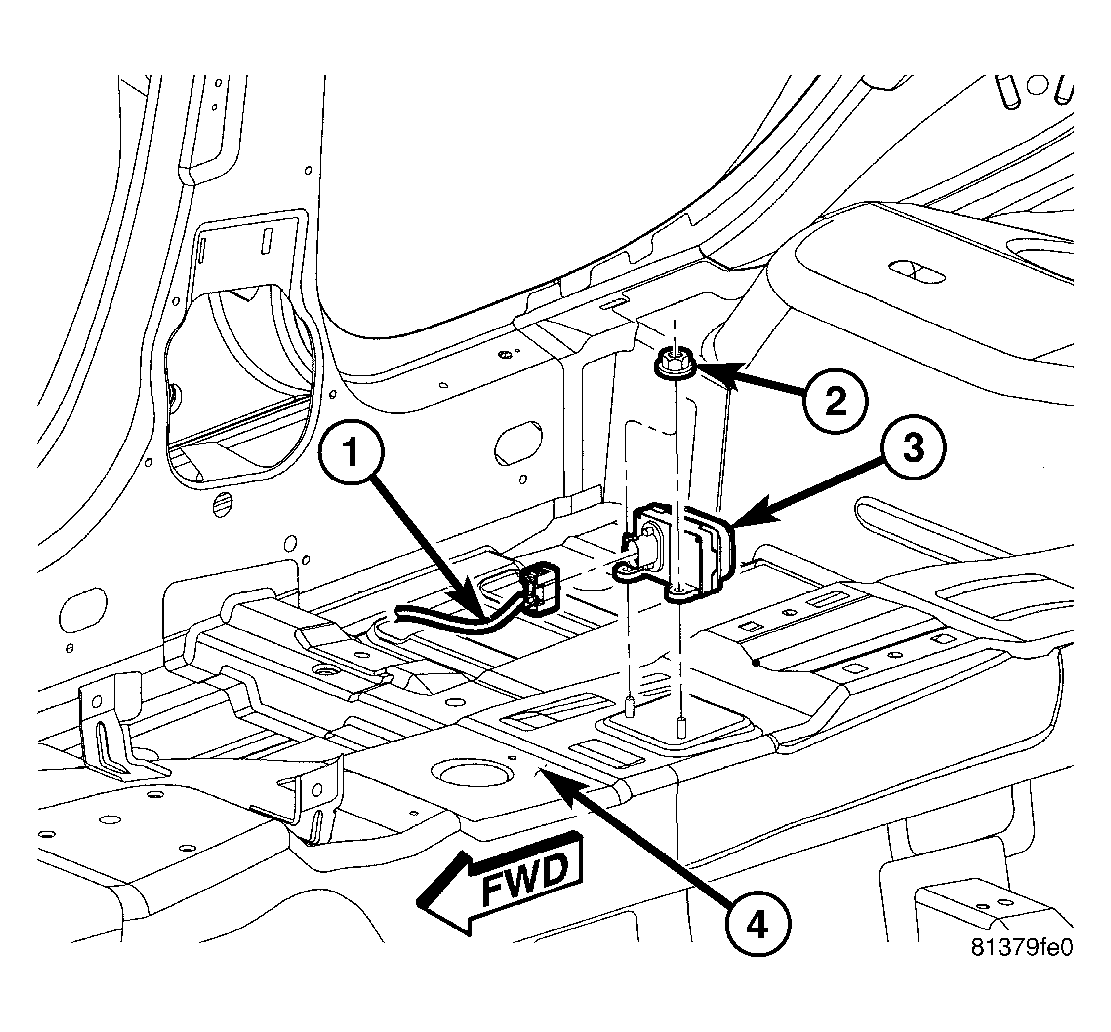

Fig 1: DYNAMICS SENSOR MOUNTING
GC0014635Courtesy of DAIMLERCHRYSLER CORP.

The Yaw Rate and Lateral Acceleration Sensors are housed into one unit known as the Dynamics Sensor. The sensor is used to measure side-to-side (Lateral) motion and vehicle rotational sensing (how fast the vehicle is turning - Yaw).

Yaw and Lateral Acceleration Sensors cannot be serviced separately. The entire Dynamics Sensor must be replaced when necessary.
