Engine Control Module

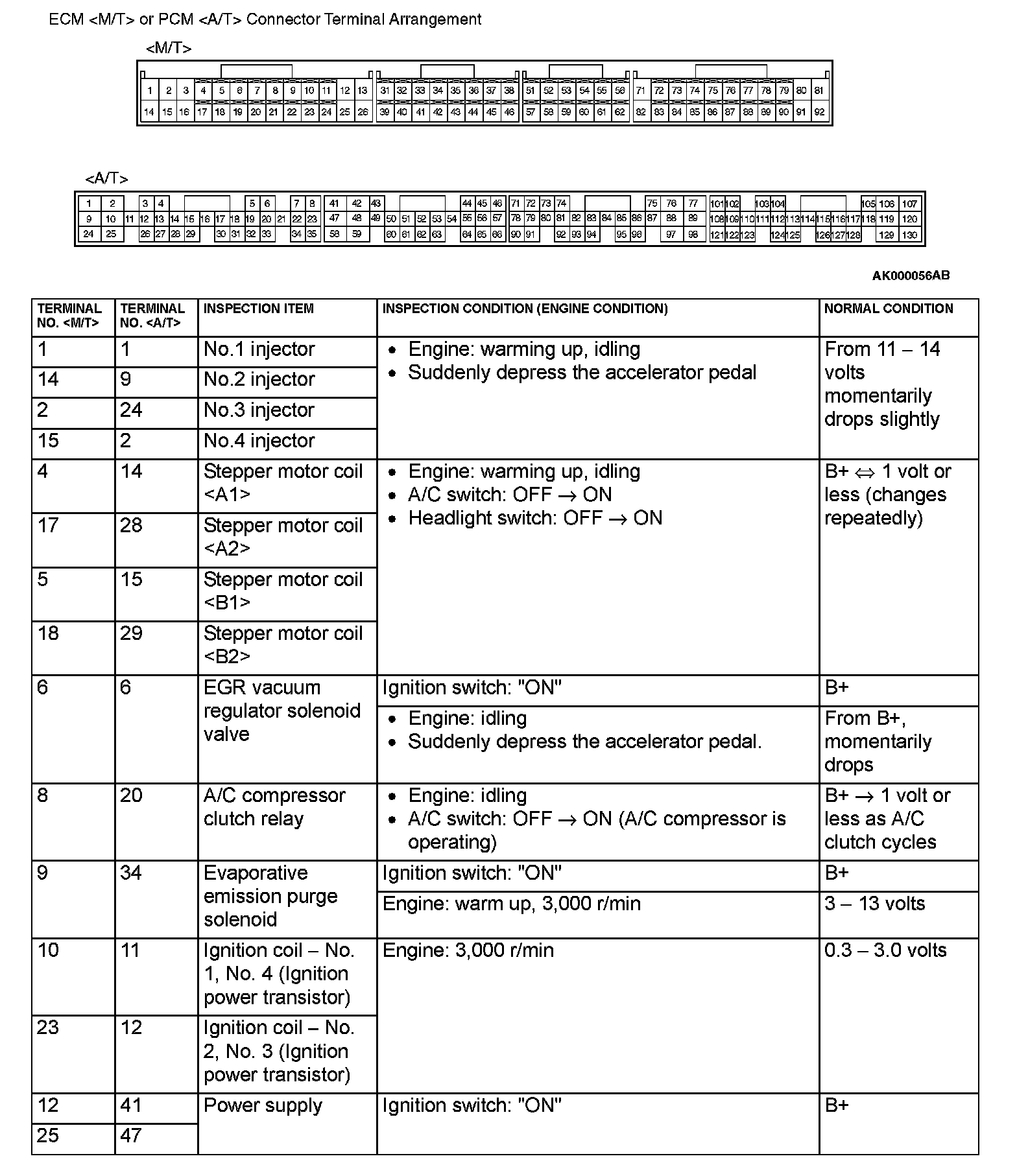

Terminal Voltage Check Chart Part 1:

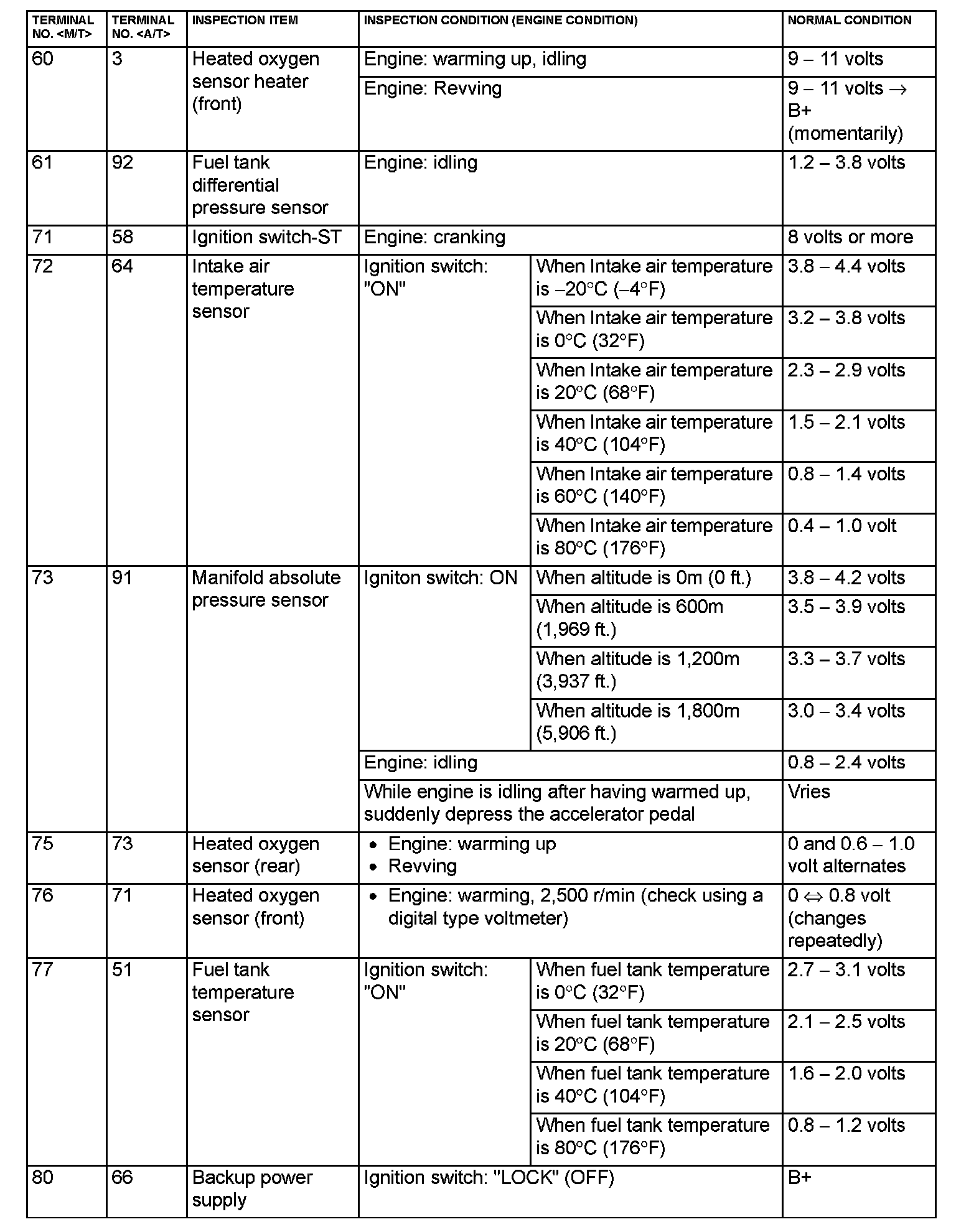

Terminal Voltage Check Chart Part 2:

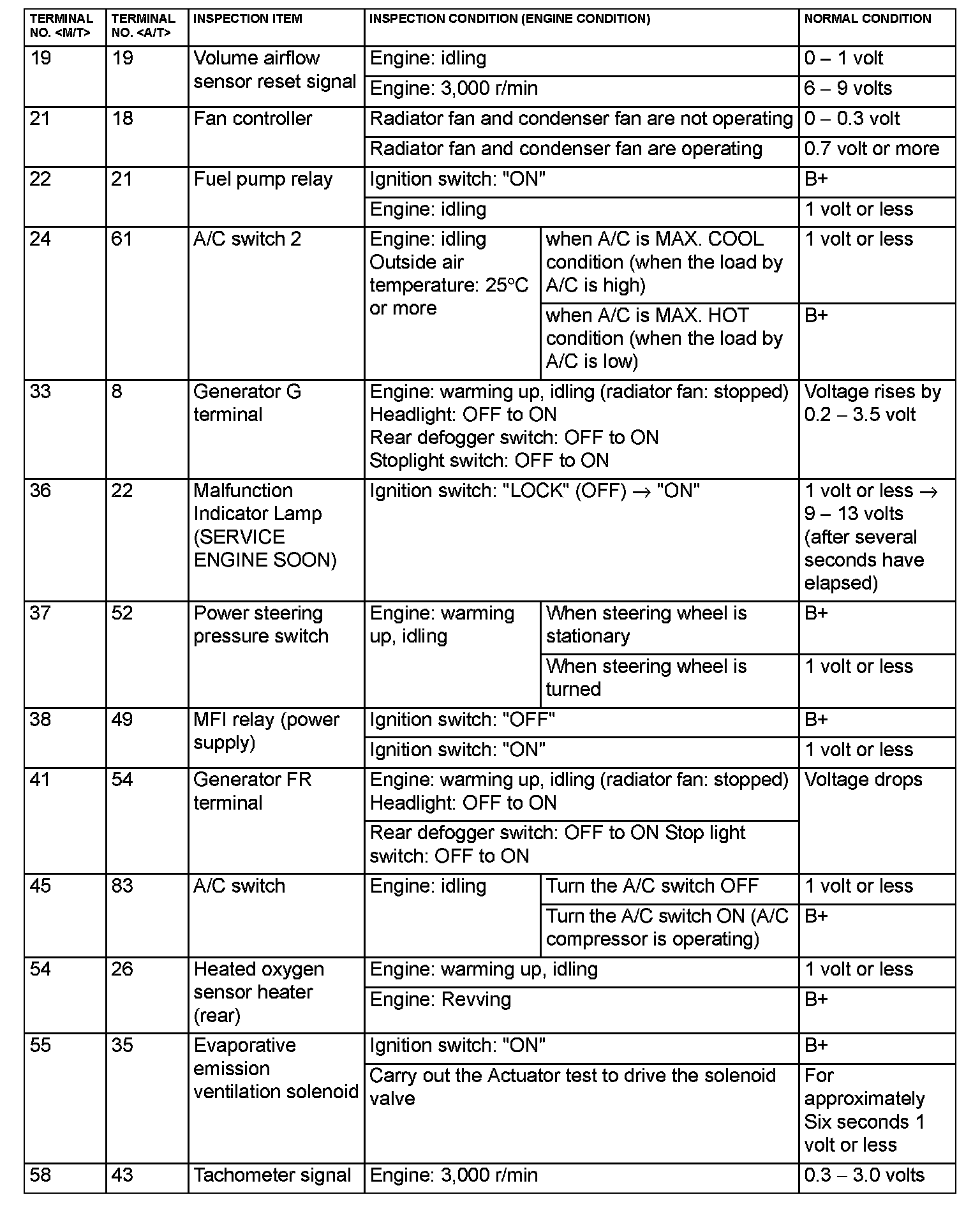

Terminal Voltage Check Chart Part 3:

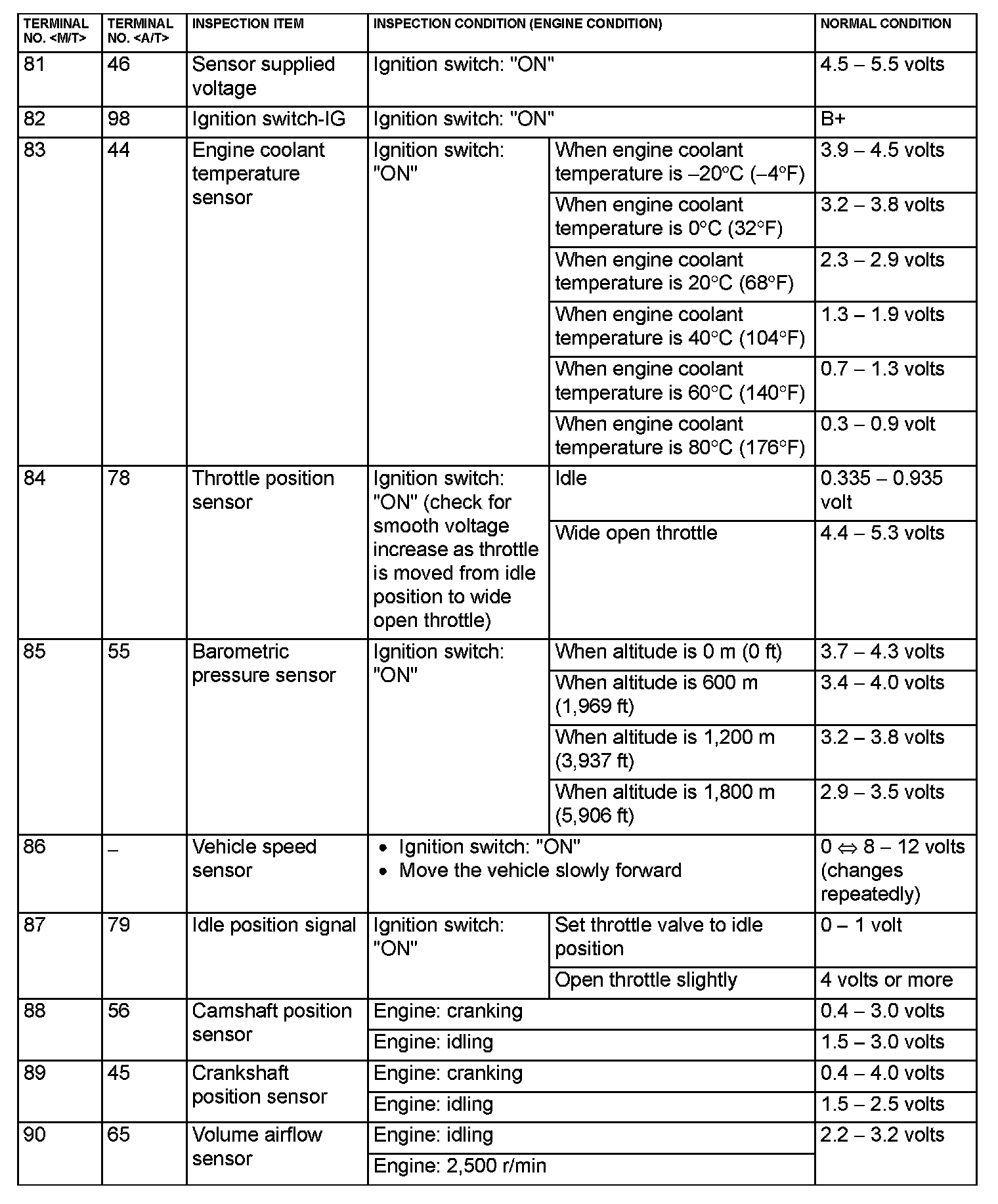

Terminal Voltage Check Chart Part 4:






TERMINAL VOLTAGE CHECK CHART
