Home >> Chrysler >> 2004 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

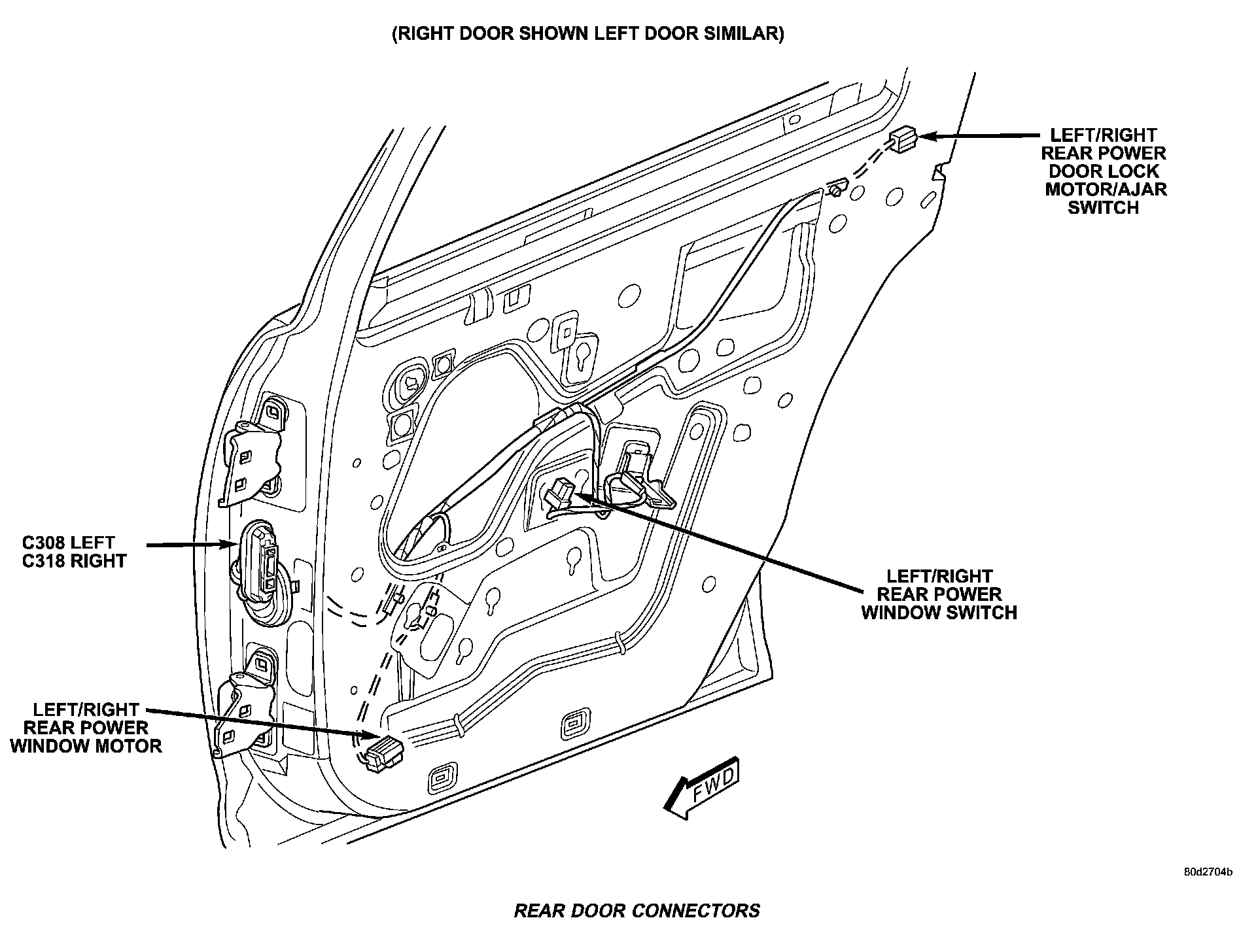

Rear Door Connectors:

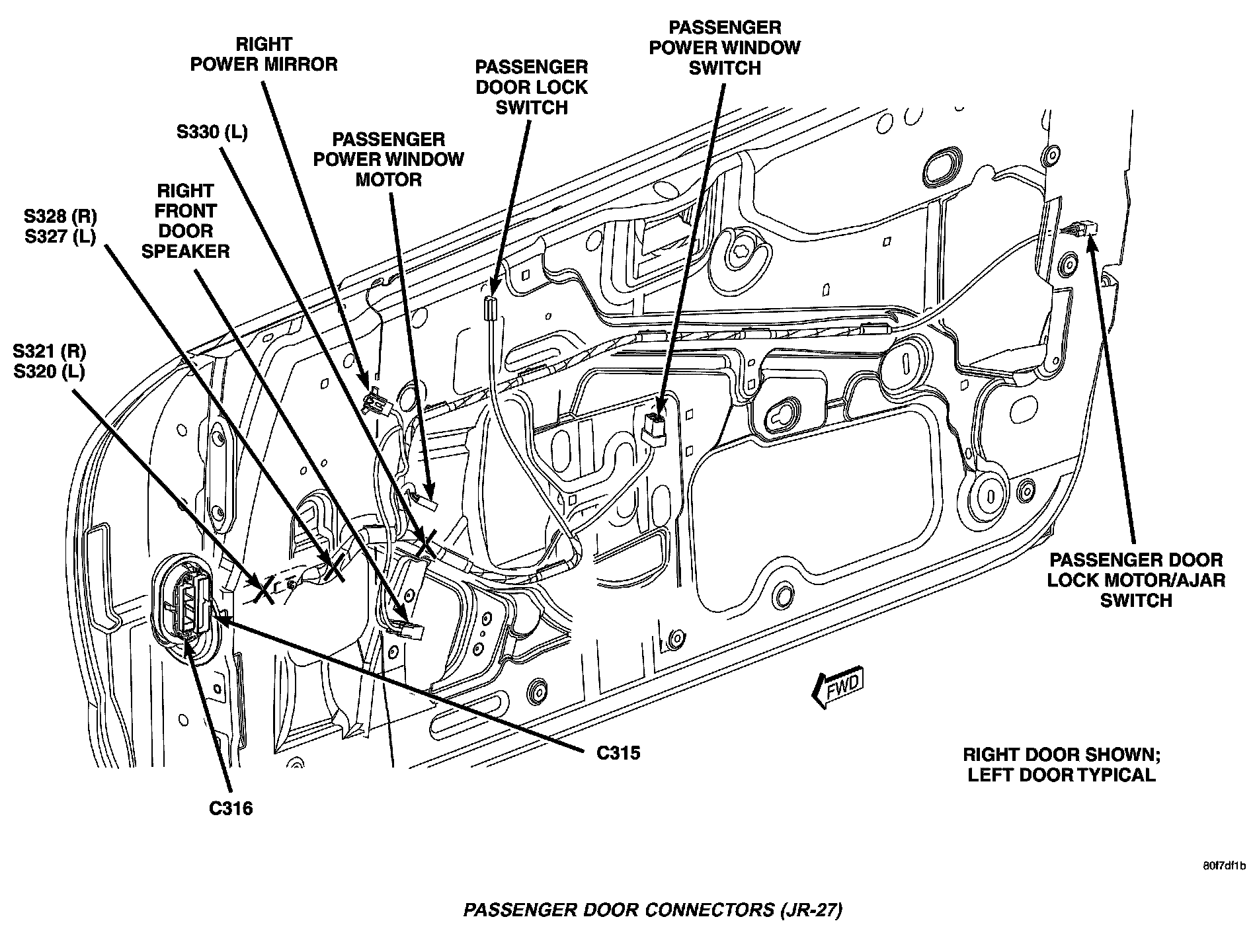

Passenger Door Connectors(JR-27):

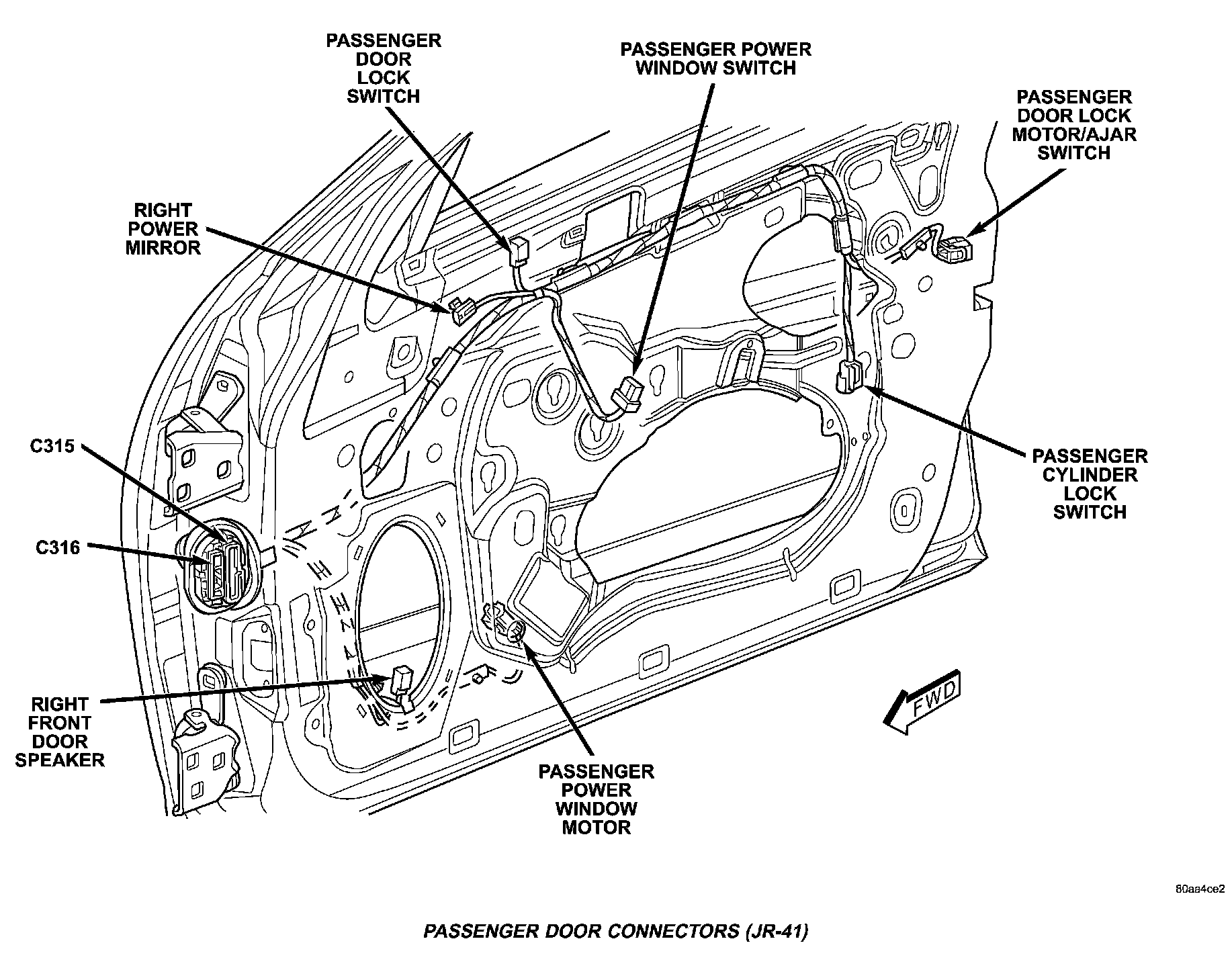

Passenger Door Connectors(JR-41):
