Base Brake Torque Specifications

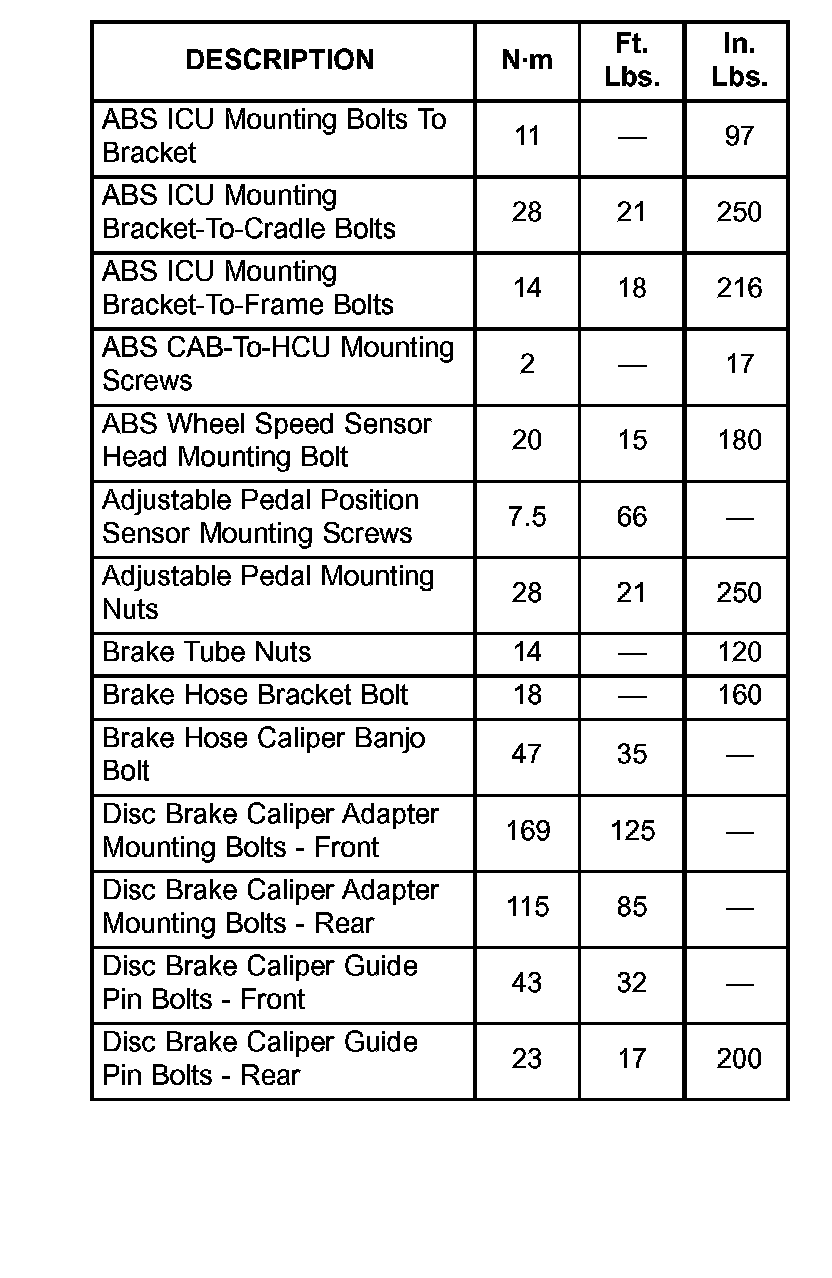

Brake Fastener Torque Part 1 of 2:

Brake Fastener Torque Part 2 of 2:
