Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove air cleaner box.

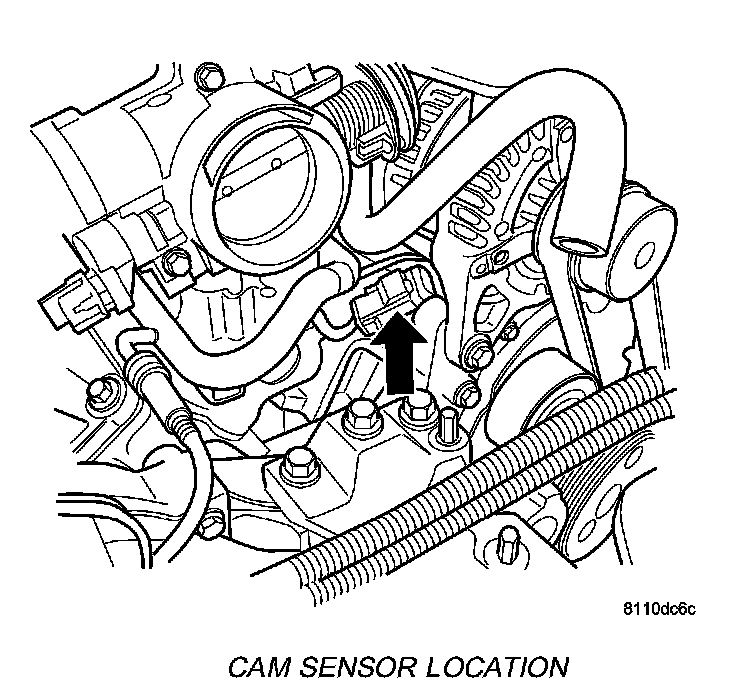

CAM Sensor Location:

3. Unlock the camshaft sensor electrical connector.
4. Disconnect the electrical connectors to the camshaft sensor.
5. Remove the mounting bolts.

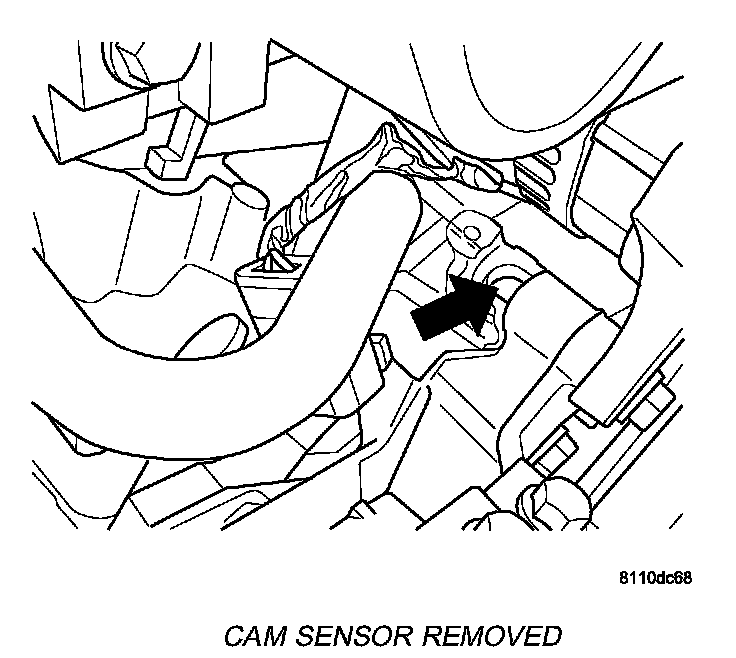

CAM Sensor Removed:

6. Remove camshaft sensor.

INSTALLATION
1. Install camshaft sensor.
2. Install the mounting bolts and tighten, refer to the torque chart for value.
3. Install and lock the camshaft sensor electrical connector.
4. Install air cleaner box.
5. Connect the negative battery cable.
