Home >> Chrysler >> 2004 >> Pacifica V6-3.5L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

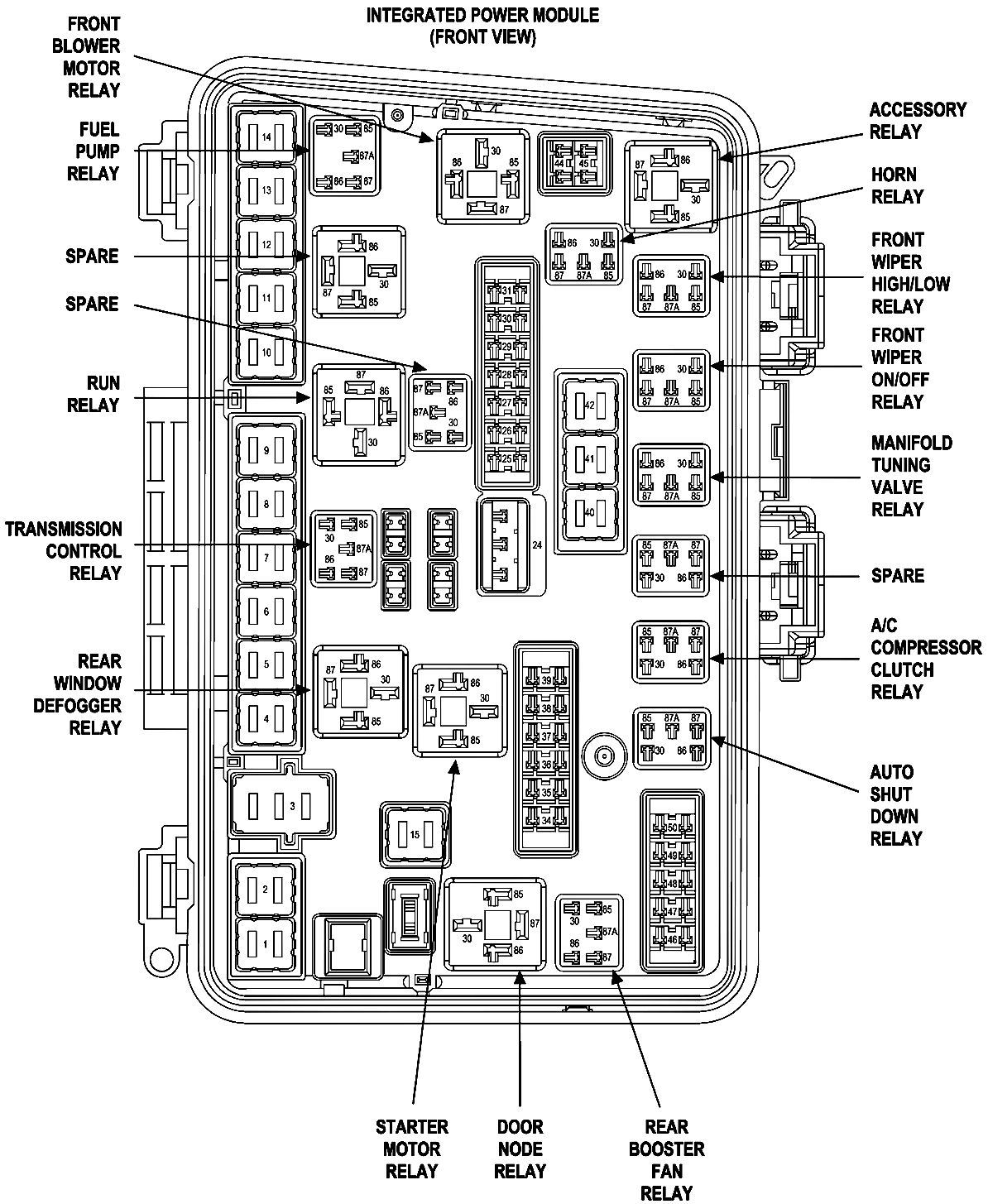

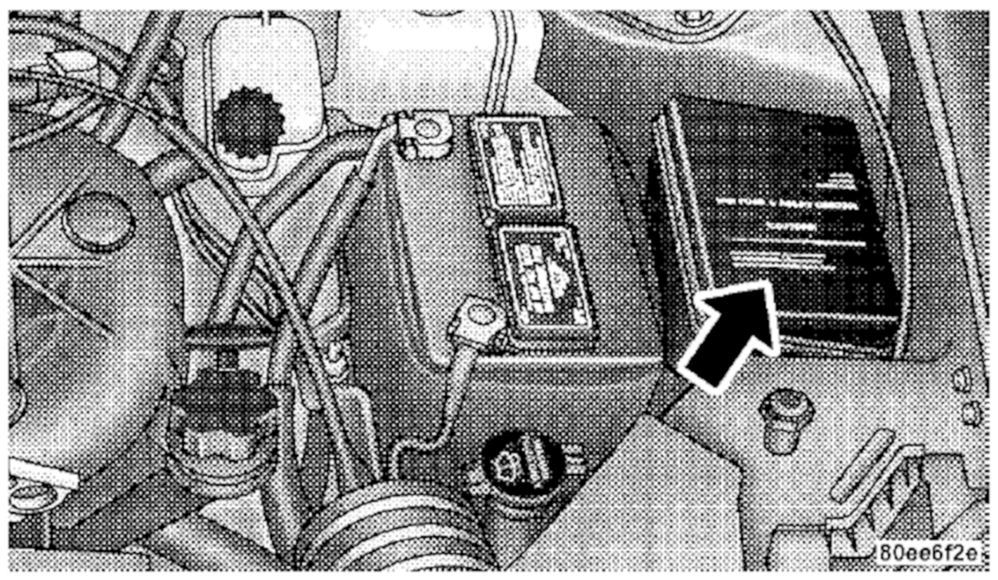

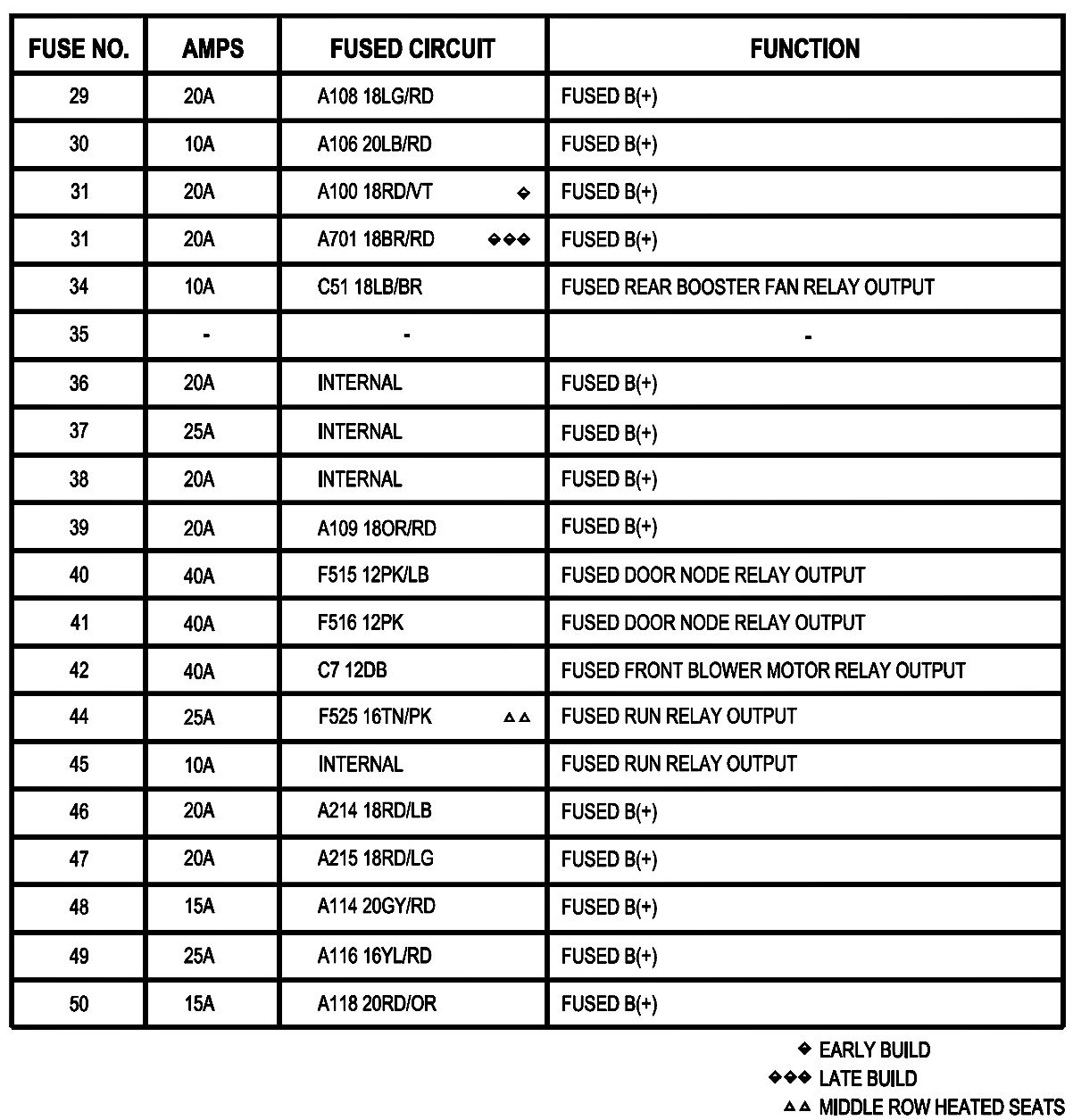

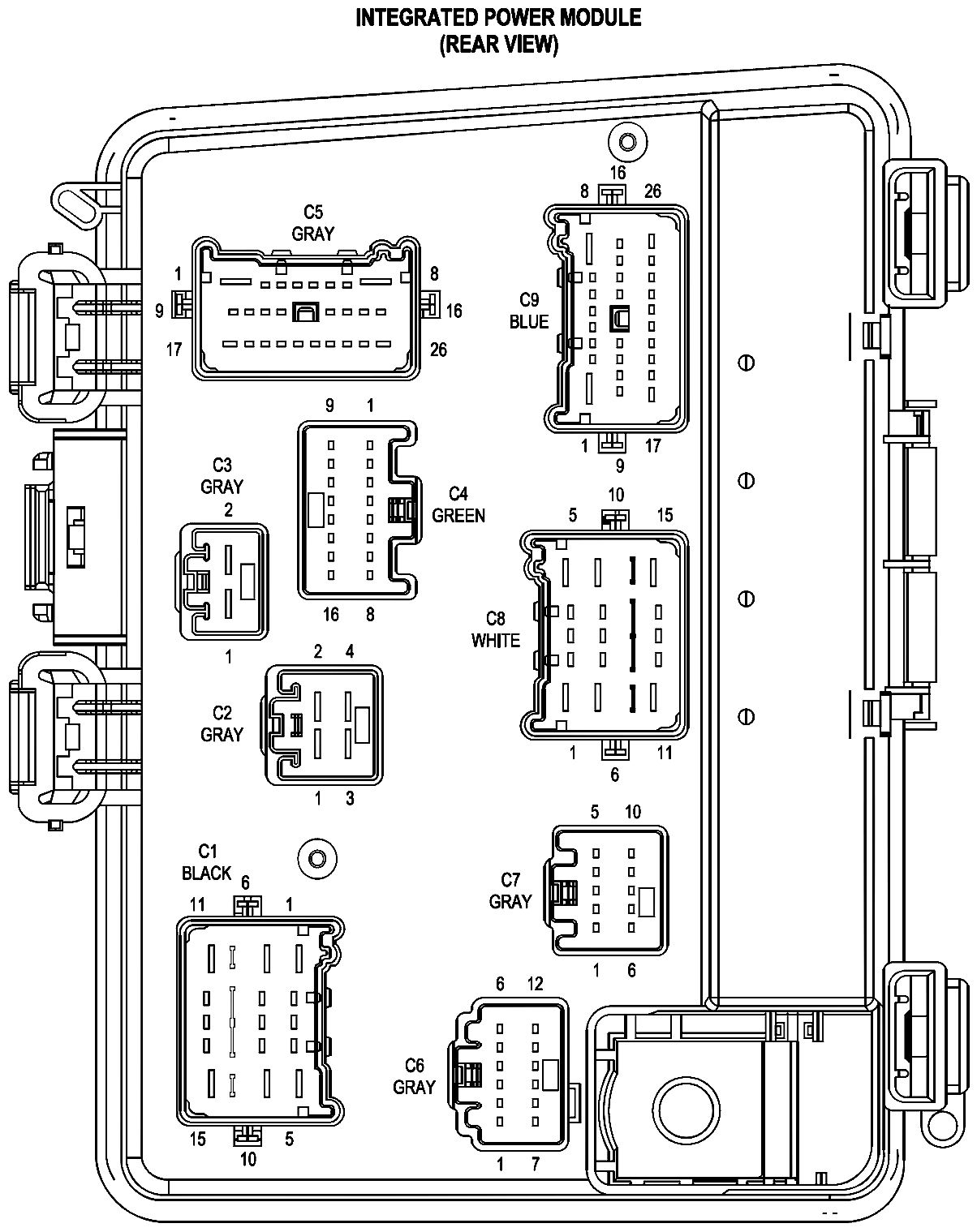

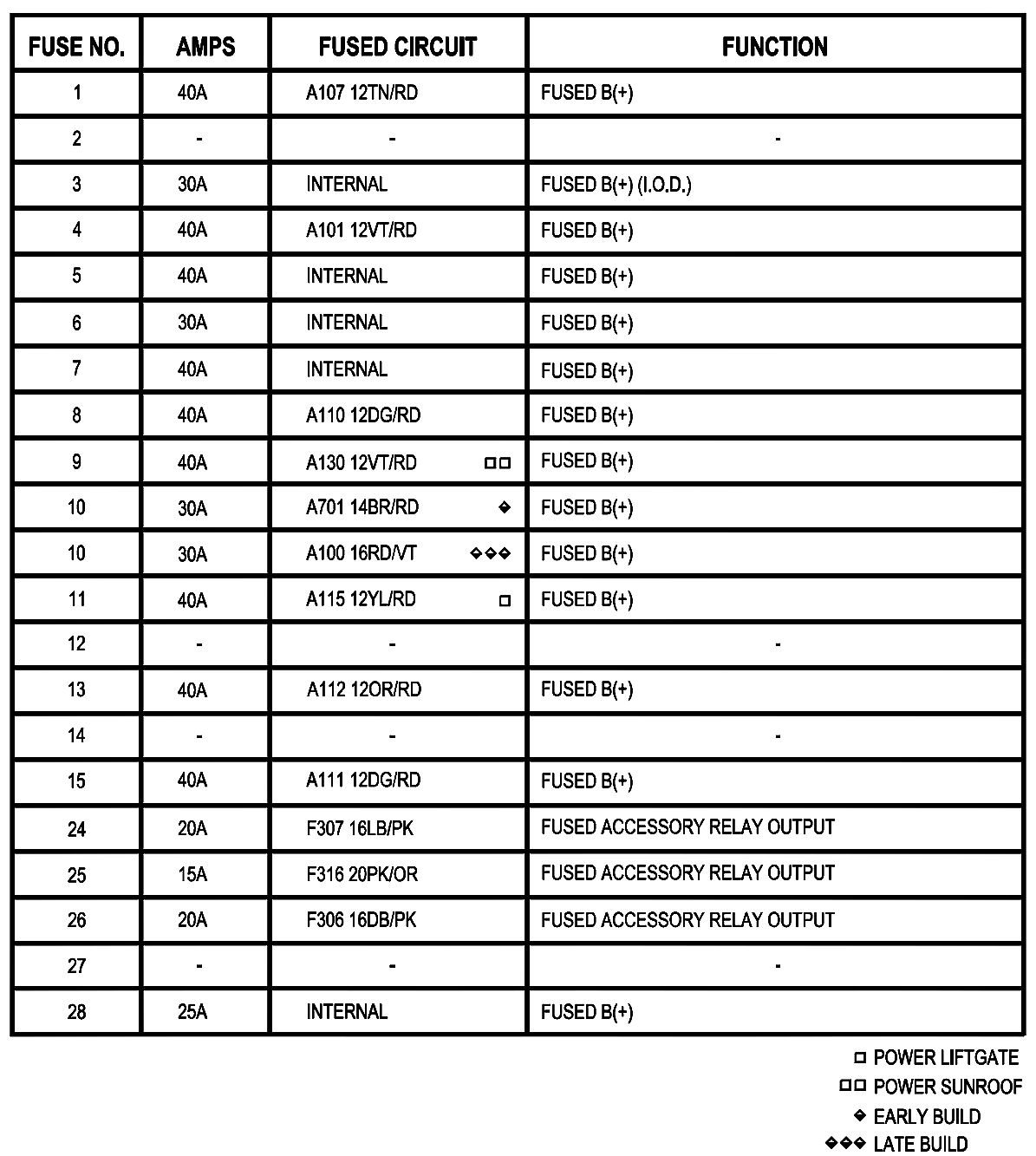

Fuse Block: Locations
