Home >> Chrysler >> 2004 >> Pacifica V6-3.5L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Trunk / Liftgate

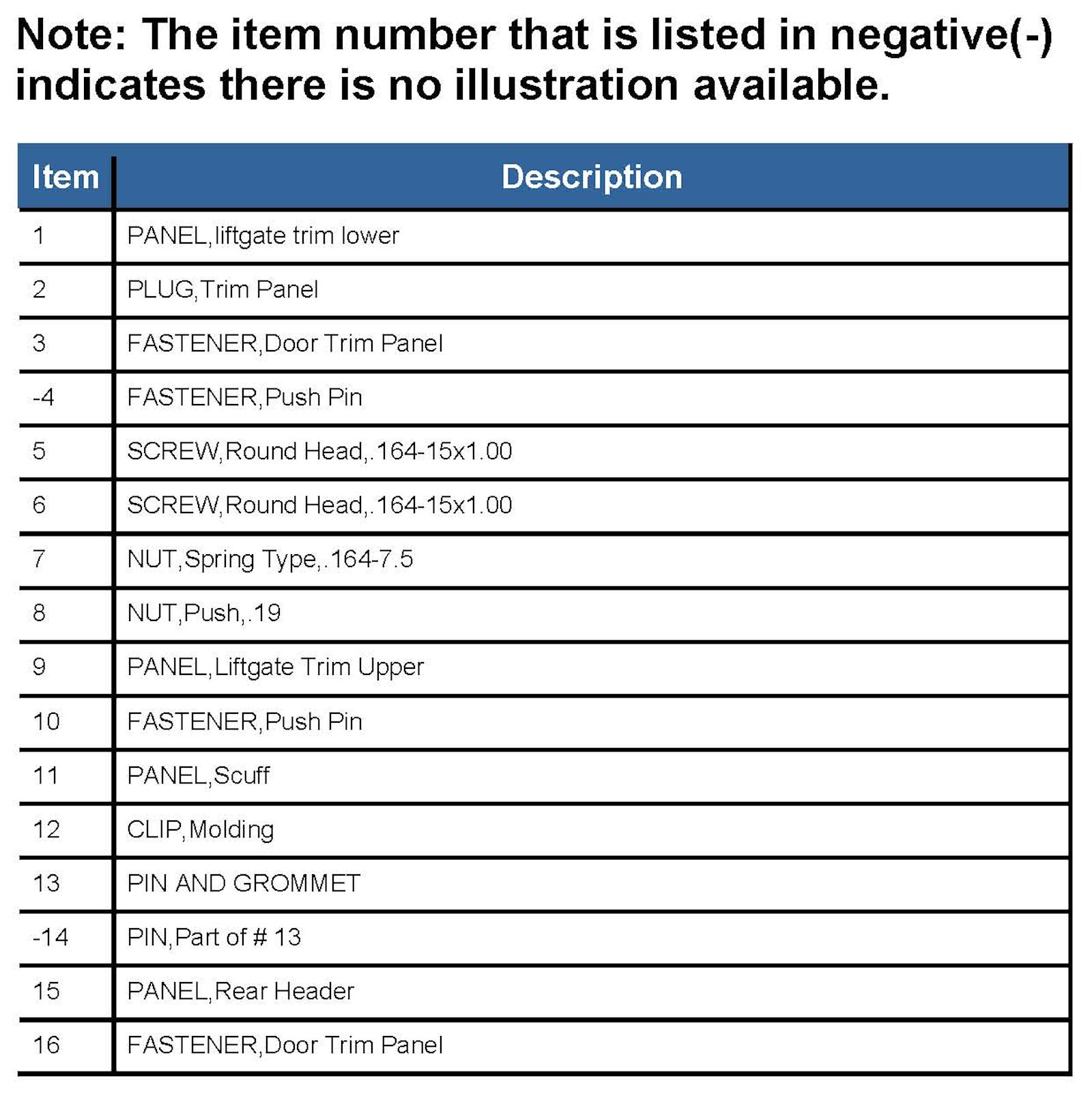

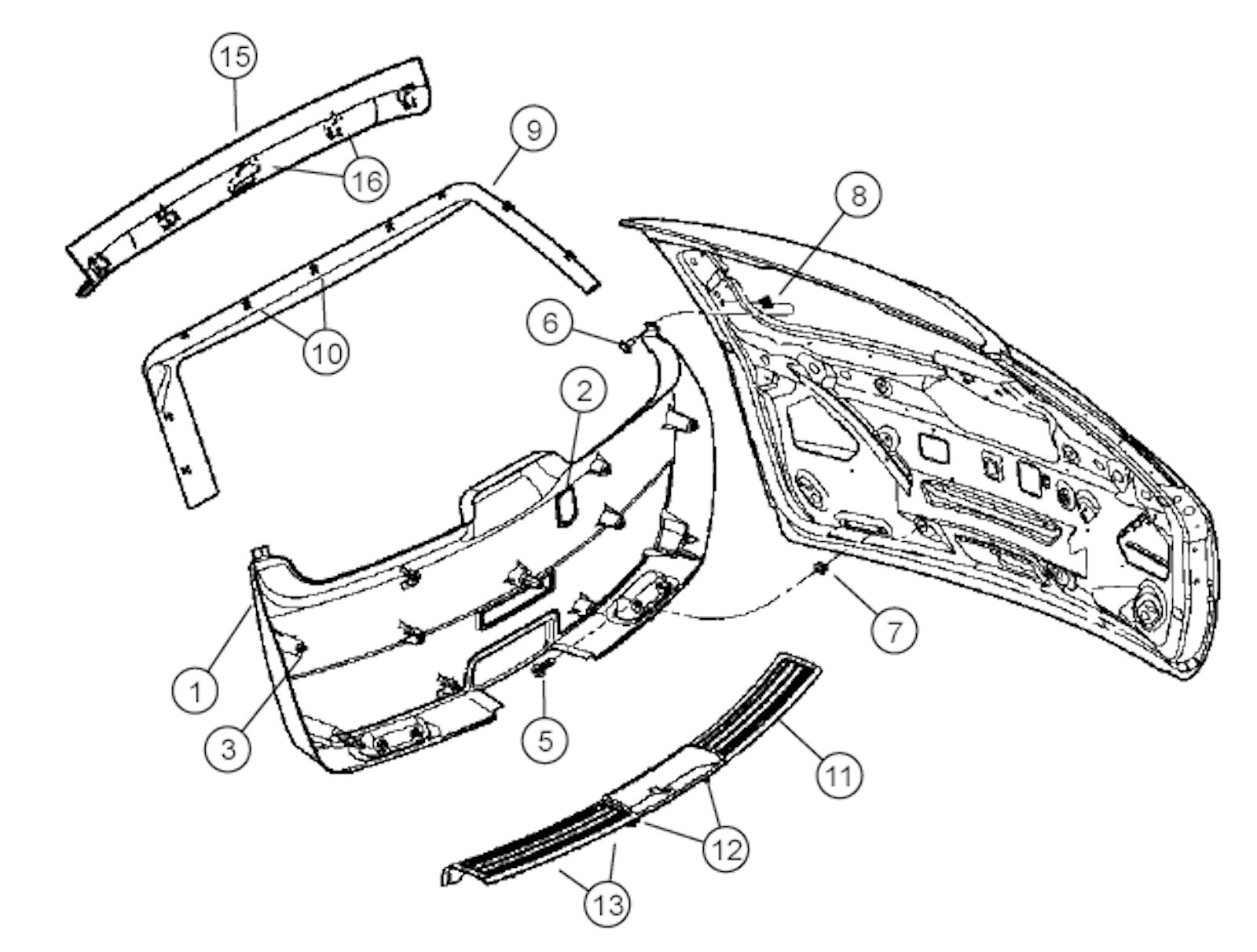

Trunk / Liftgate
