Trunk / Liftgate Lock

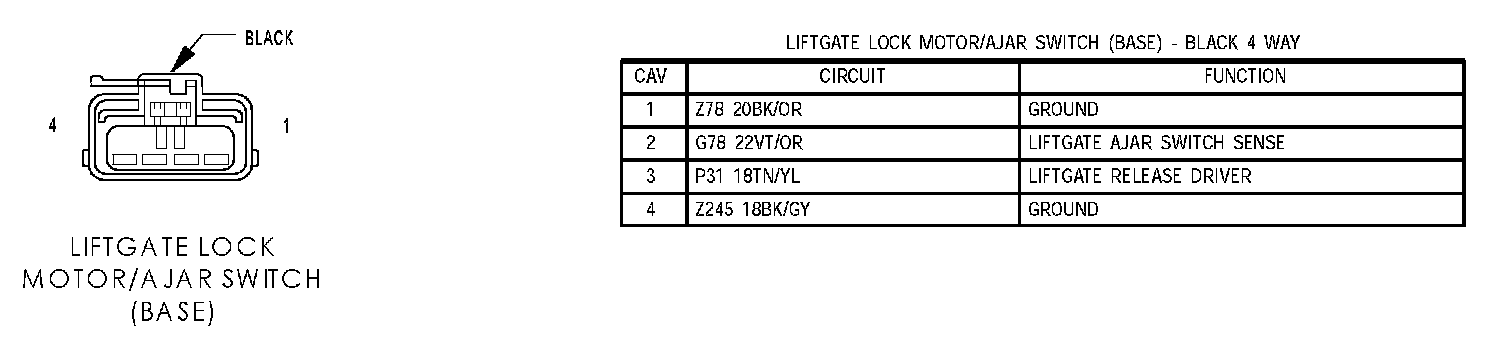

Liftgate Lock Motor/Ajar Switch (Base):

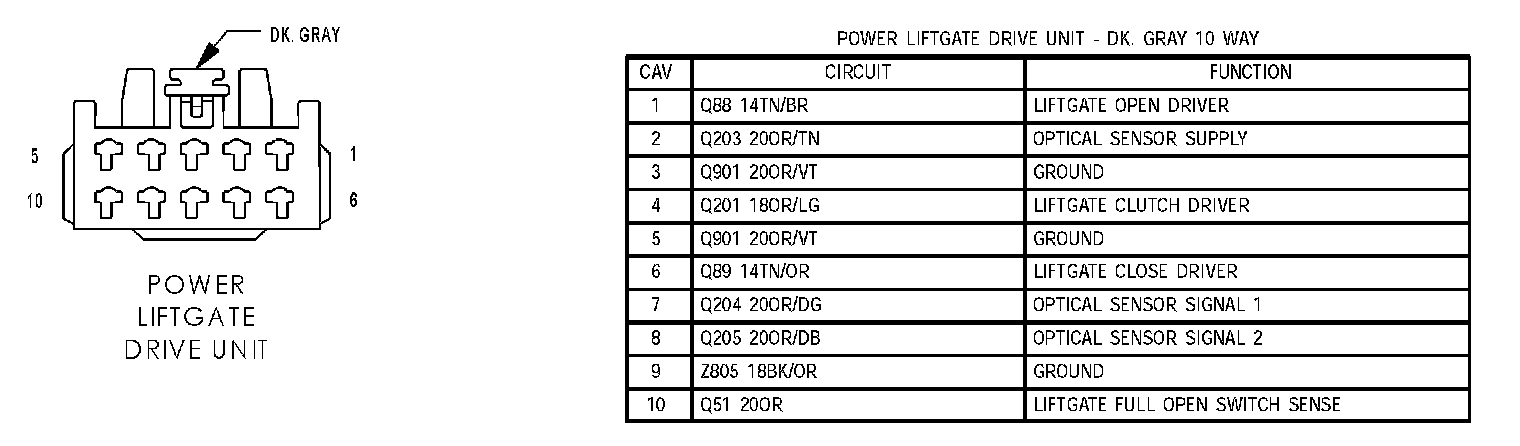

Power Liftgate Drive Unit:

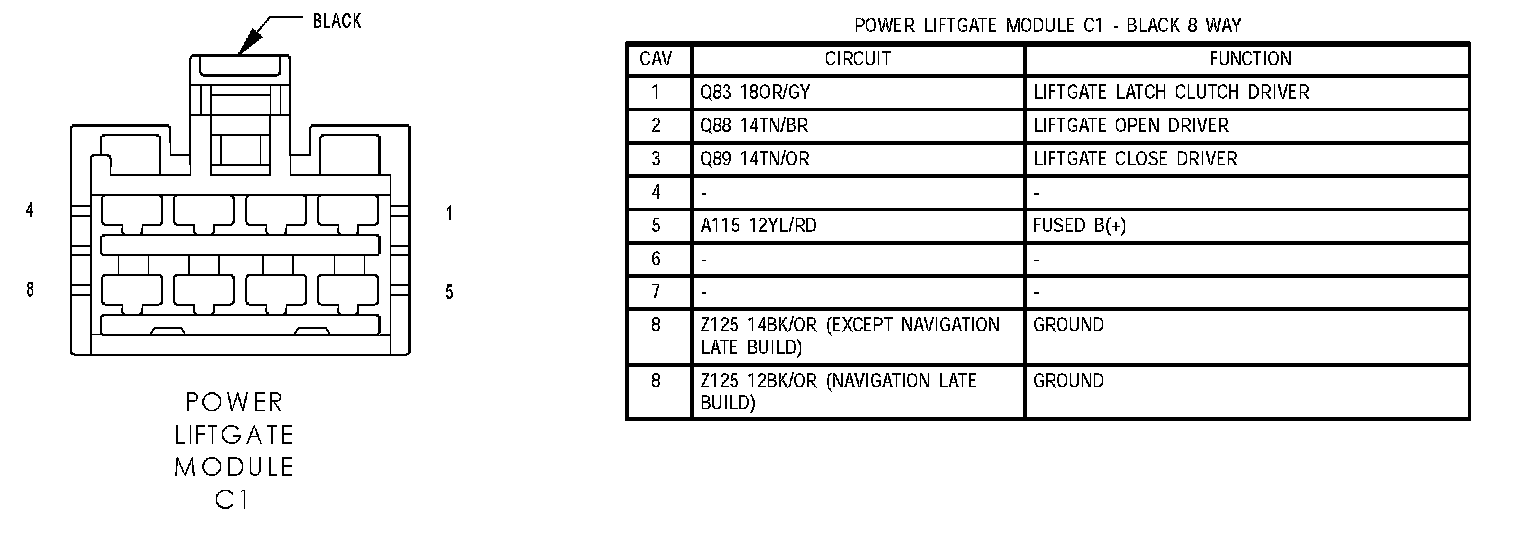

Power Liftgate Module C1:

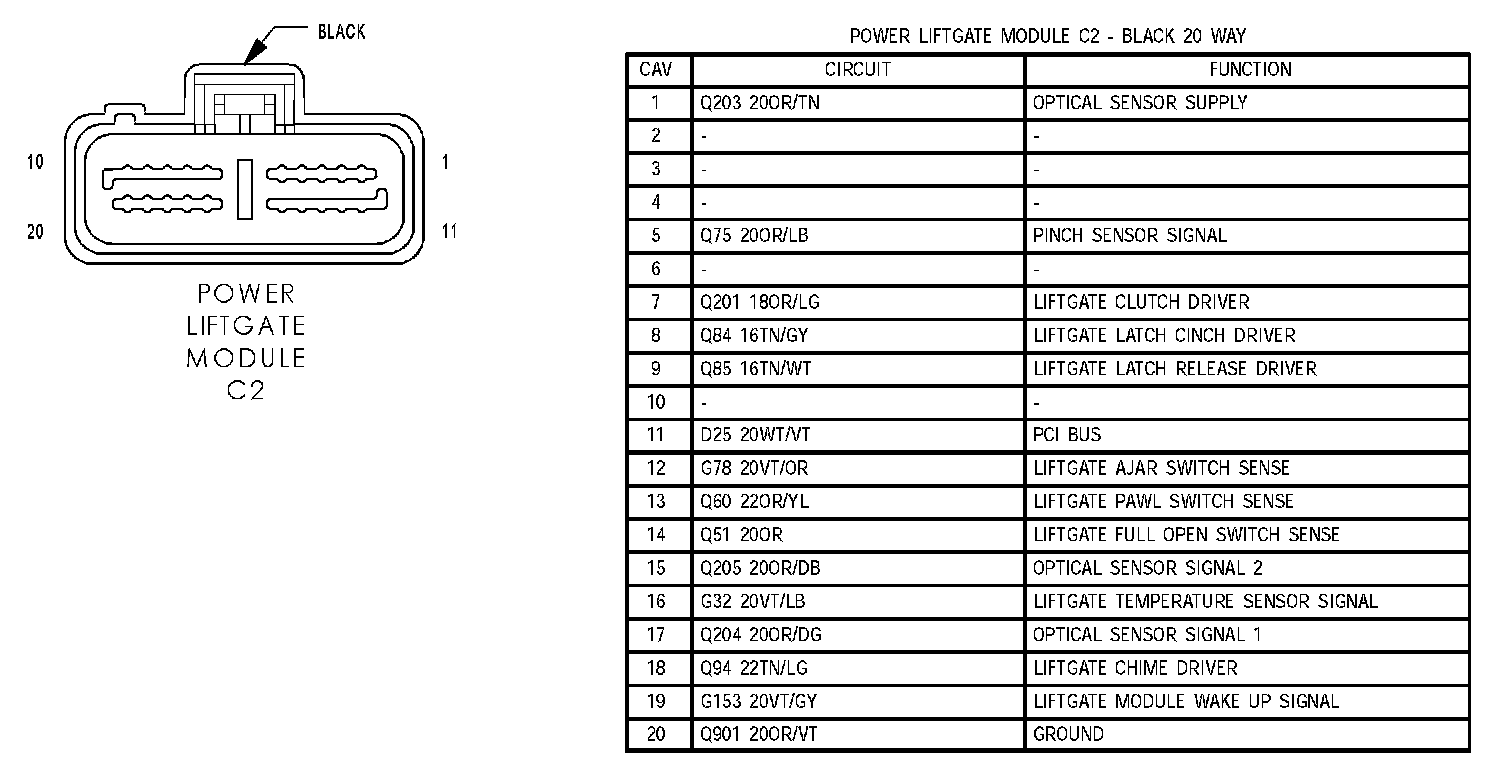

Power Liftgate Module C2:
