Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

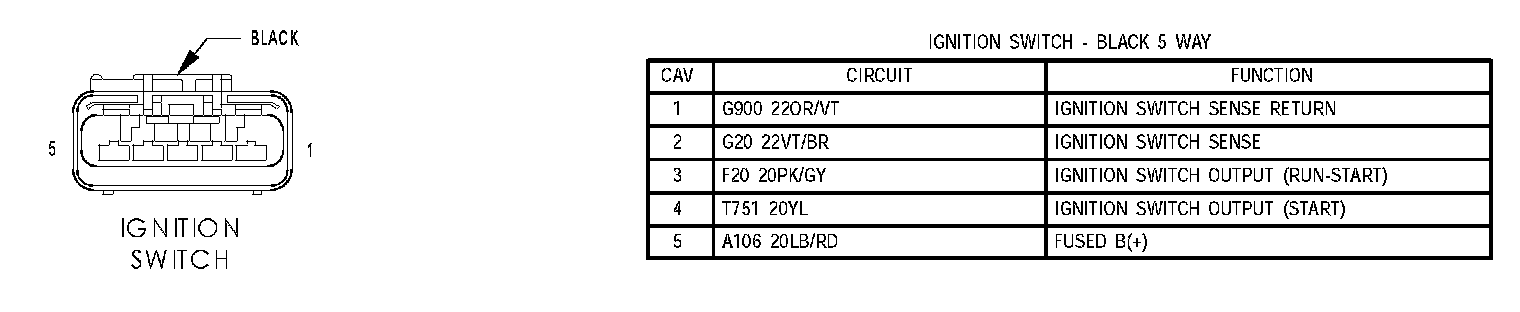

Ignition Switch
Ignition Switch
Ignition Switch:
