Air Bag Control Module
Air Bag Control Module

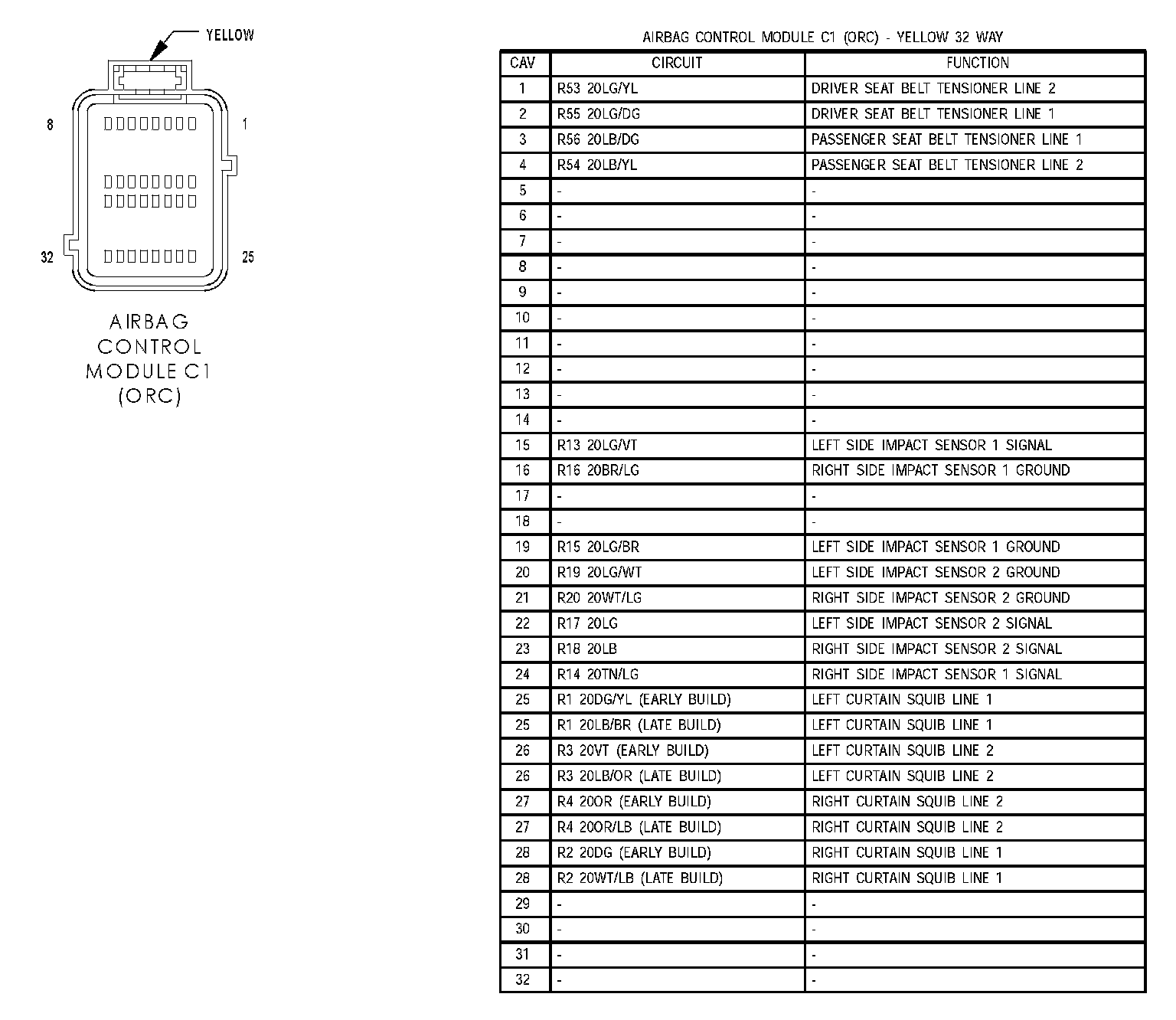

Air Bag Control Module C1 (ORC):

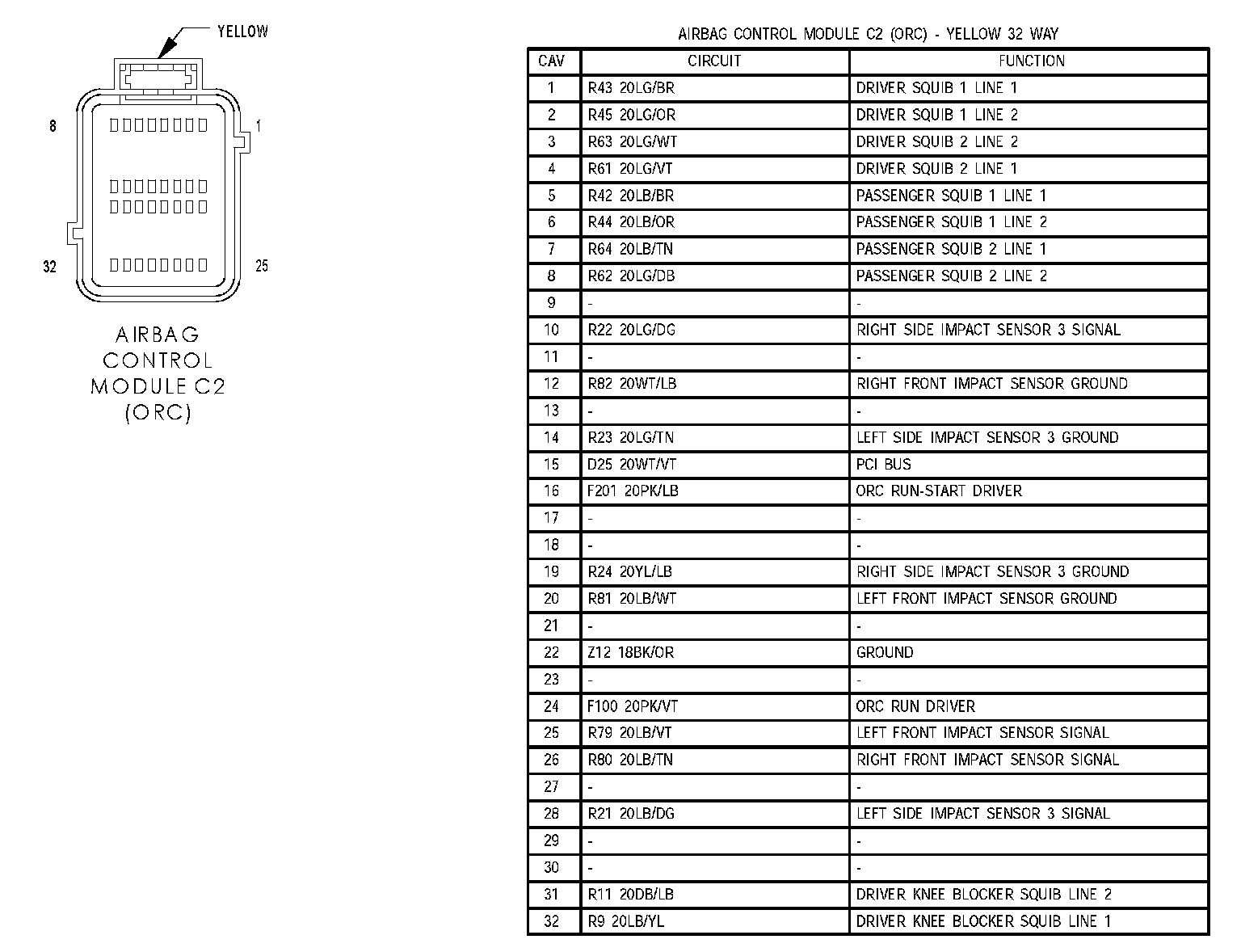

Air Bag Control Module C2 (ORC):
