Radiator Fan Motor Connector End Views

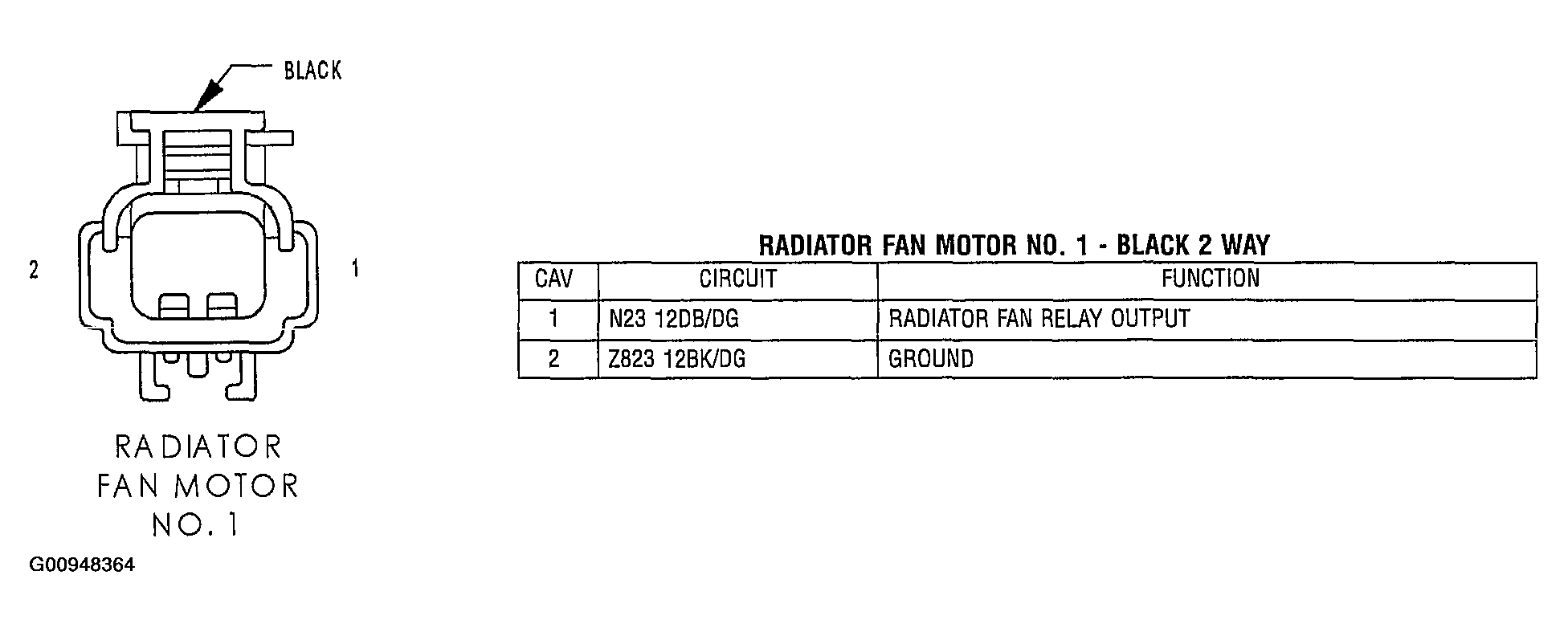

Fig 1: Identifying Radiator Fan Motor No. 1 - Black 2 Way Connector
G00948364Courtesy of DAIMLERCHRYSLER CORP.

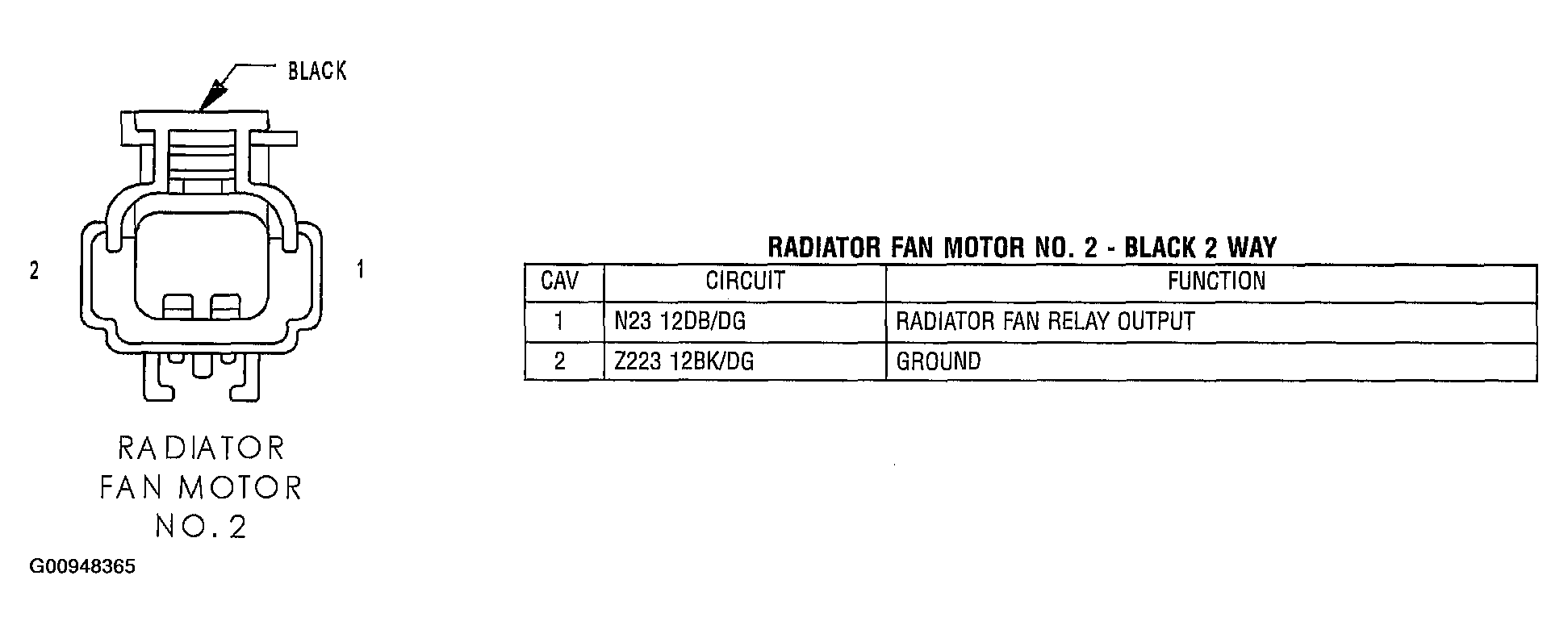

Fig 2: Identifying Radiator Fan Motor No. 2 - Black 2 Way Connector
G00948365Courtesy of DAIMLERCHRYSLER CORP.
