Integrated Power Module (IPM) FUES & Relays Locations

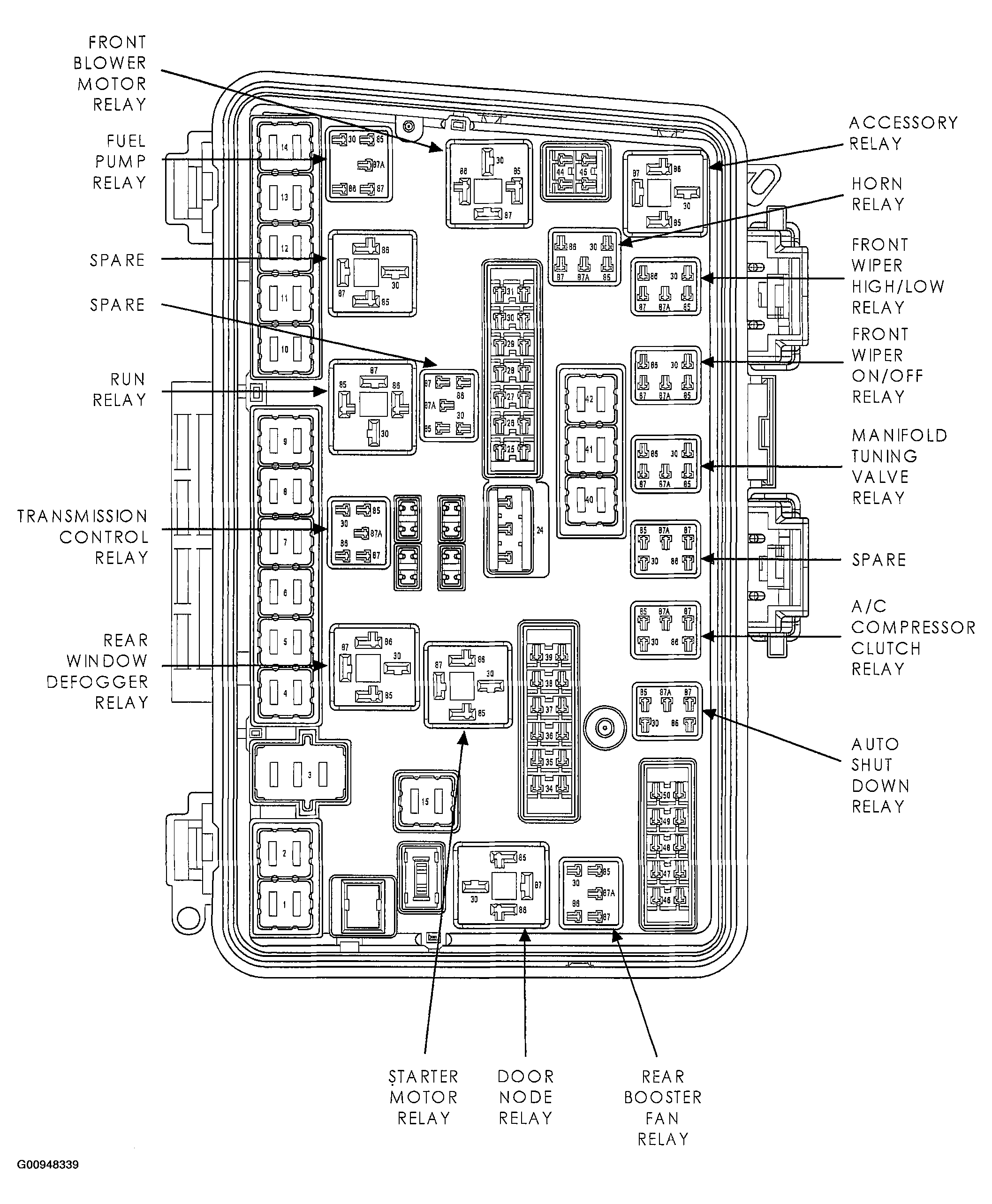

Fig 1: Identifying Integrated Power Module (Front View) Connector

Courtesy of DAIMLERCHRYSLER CORP.

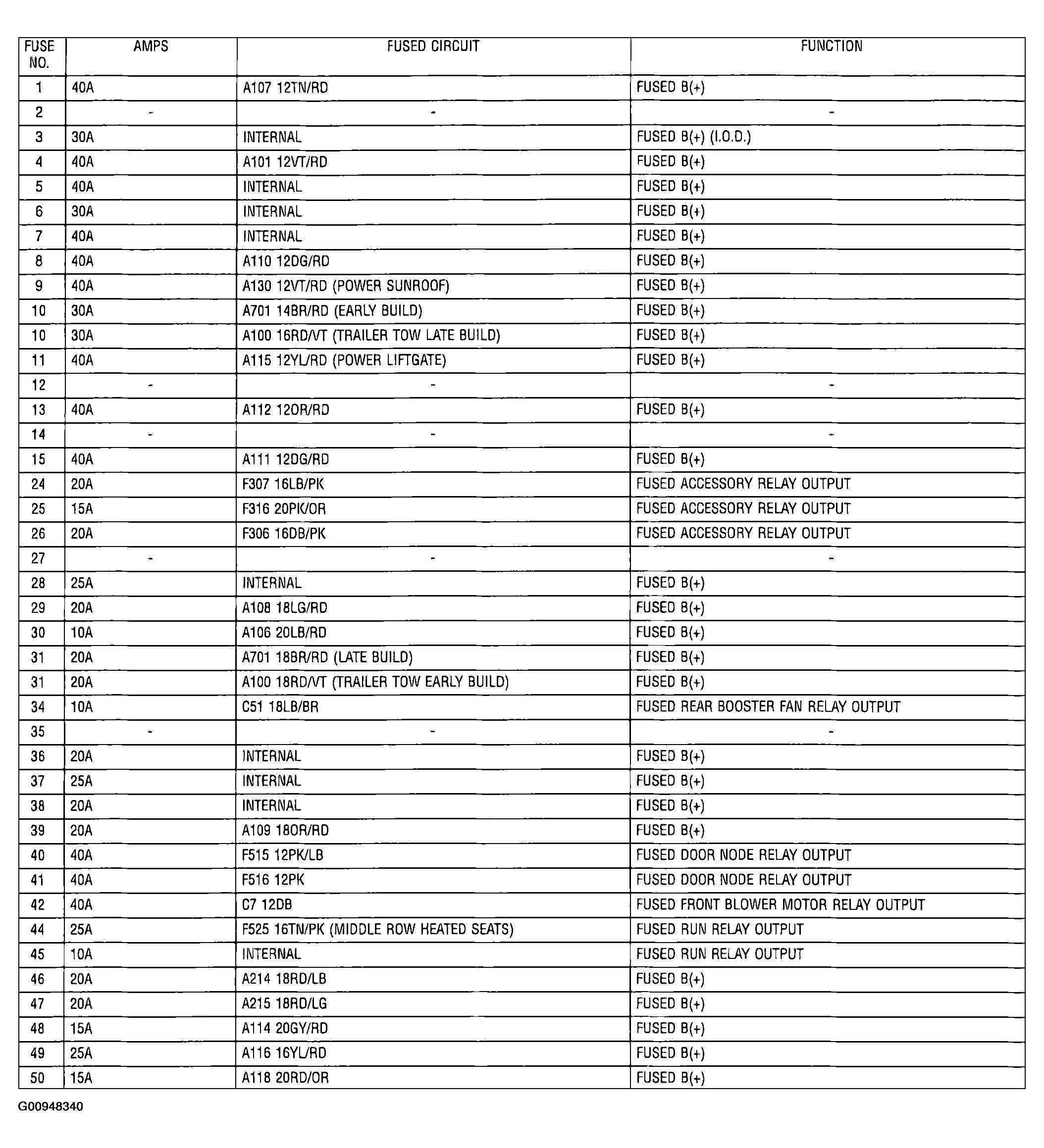

Fig 2: Identifying Integrated Power Module Fuses (IPM)

Courtesy of DAIMLERCHRYSLER CORP.
