Window Regulator: Installation

Place regulator into inner door panel (Fig 4).

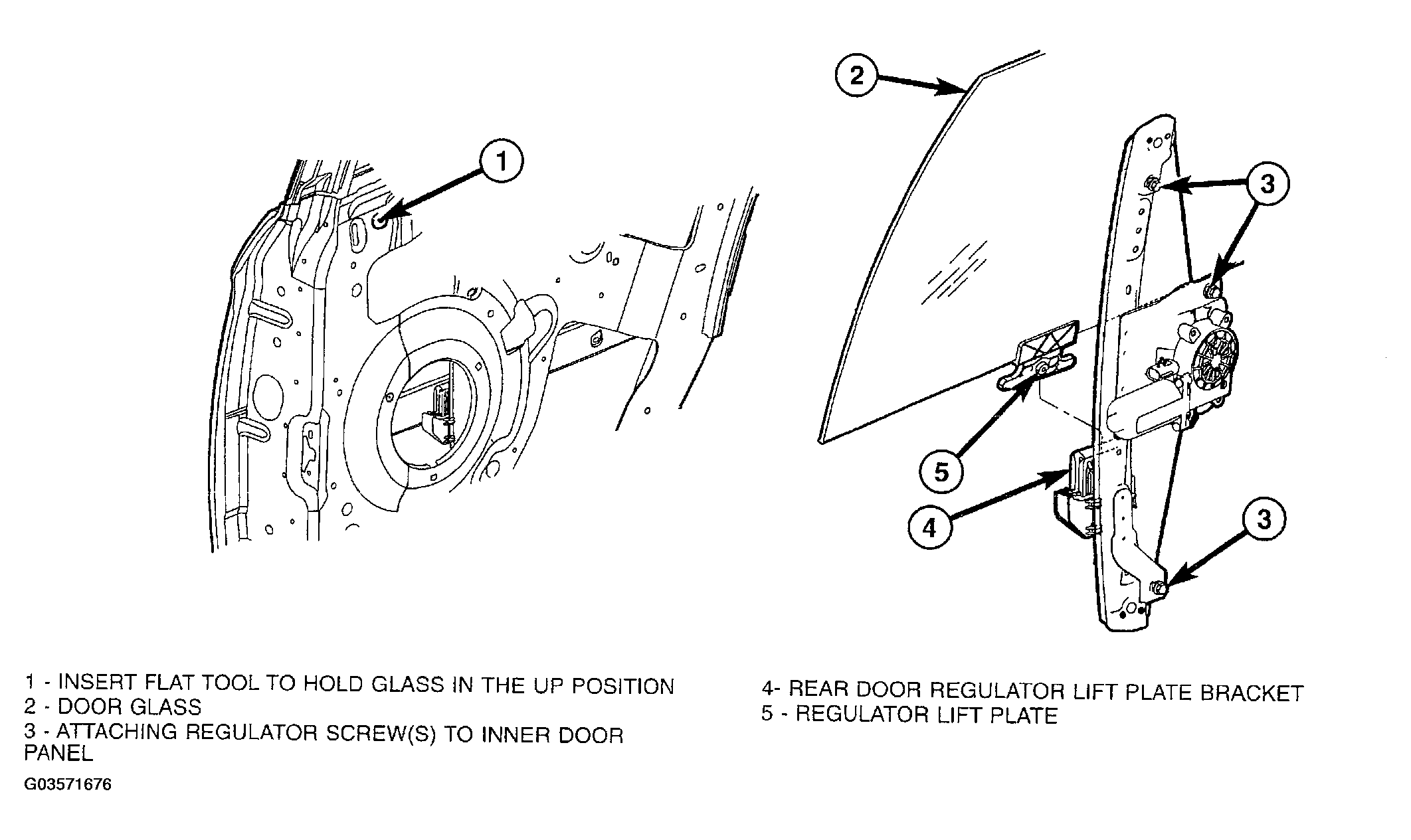

Fig 1: Identifying Regulator Lift Plate And Spring Clip
Courtesy of DAIMLERCHRYSLER CORP.

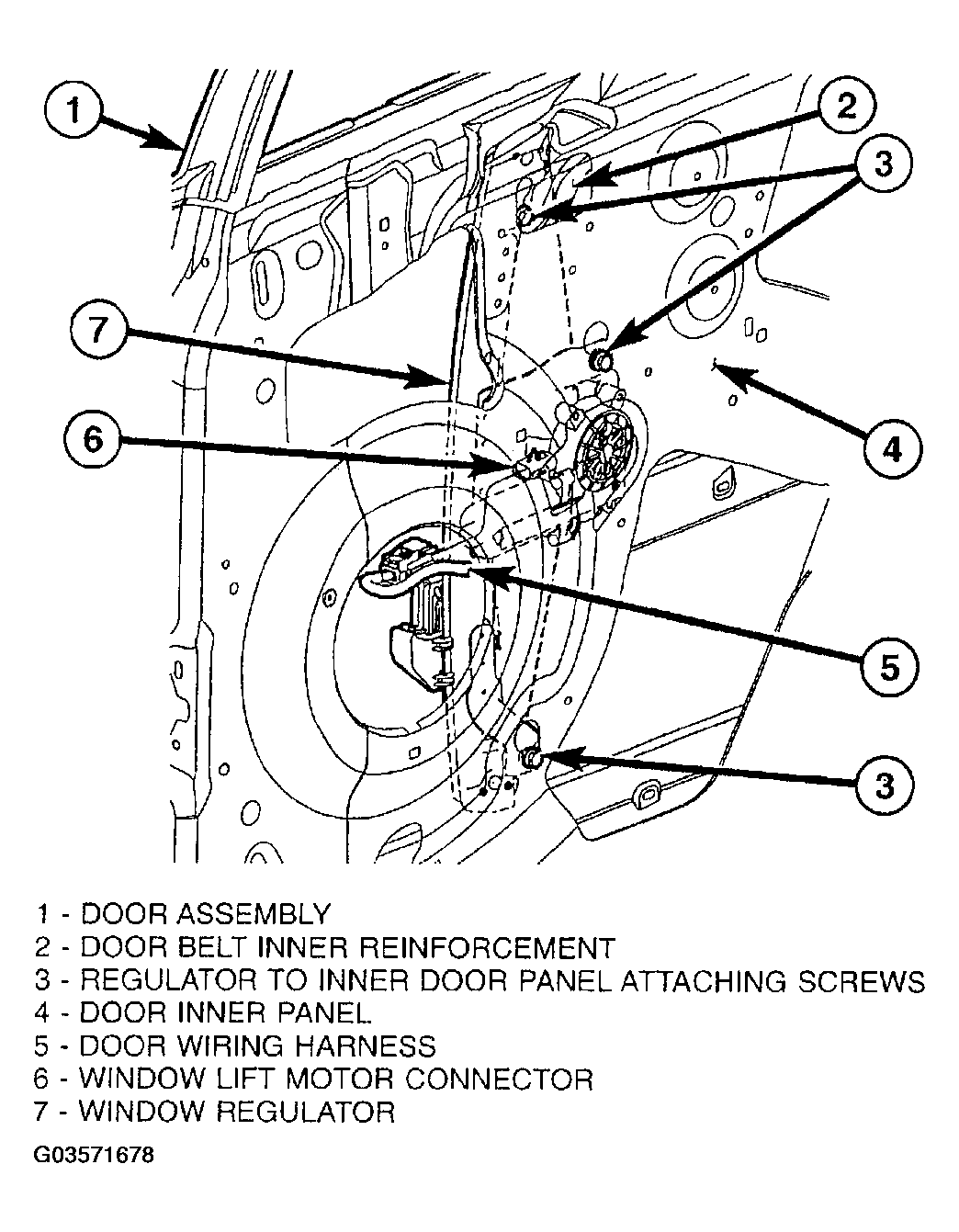

Fig 2: Identifying Components Of Power Window Regulator
Courtesy of DAIMLERCHRYSLER CORP.

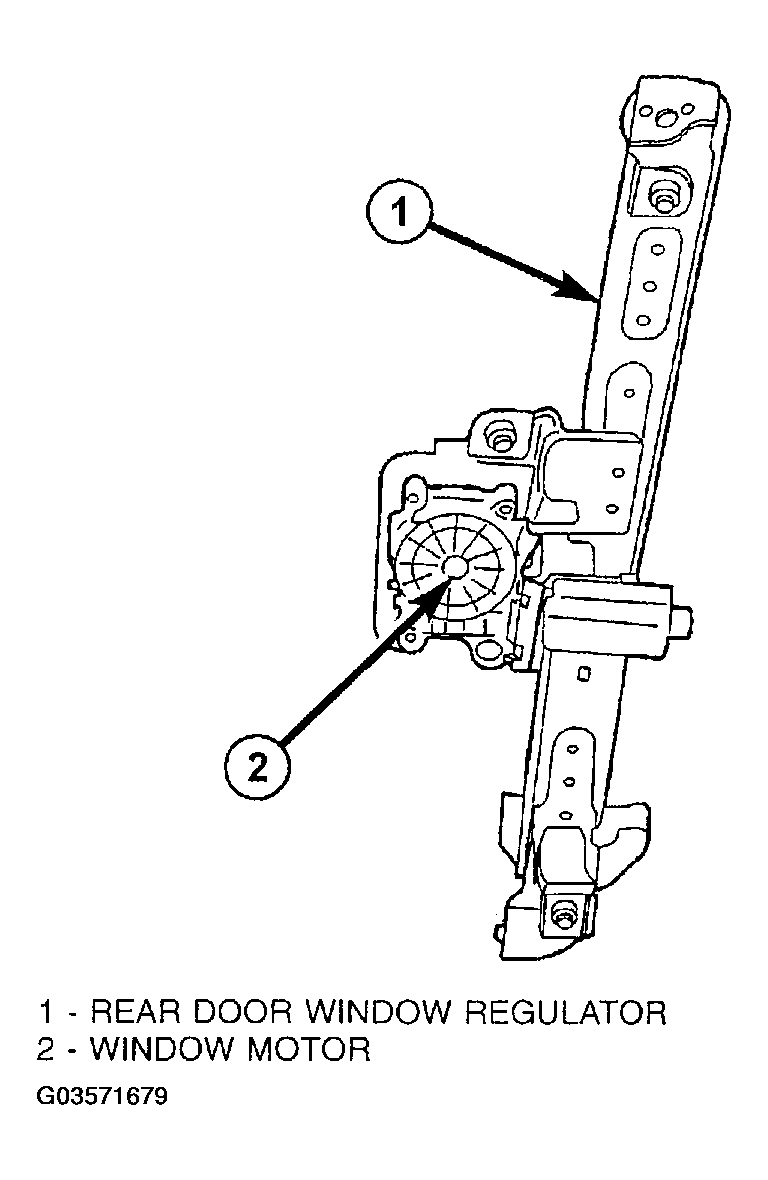

Fig 3: Identifying Components Of Power Window Regulator And Motor
Courtesy of DAIMLERCHRYSLER CORP.
Tighten screws attaching regulator and window motor to inner door panel (Fig 3).
Connect wire connector to power window motor (Fig 2).
Connect door glass to lift plate bracket (Fig 1). (Refer to INSTALLATION ).

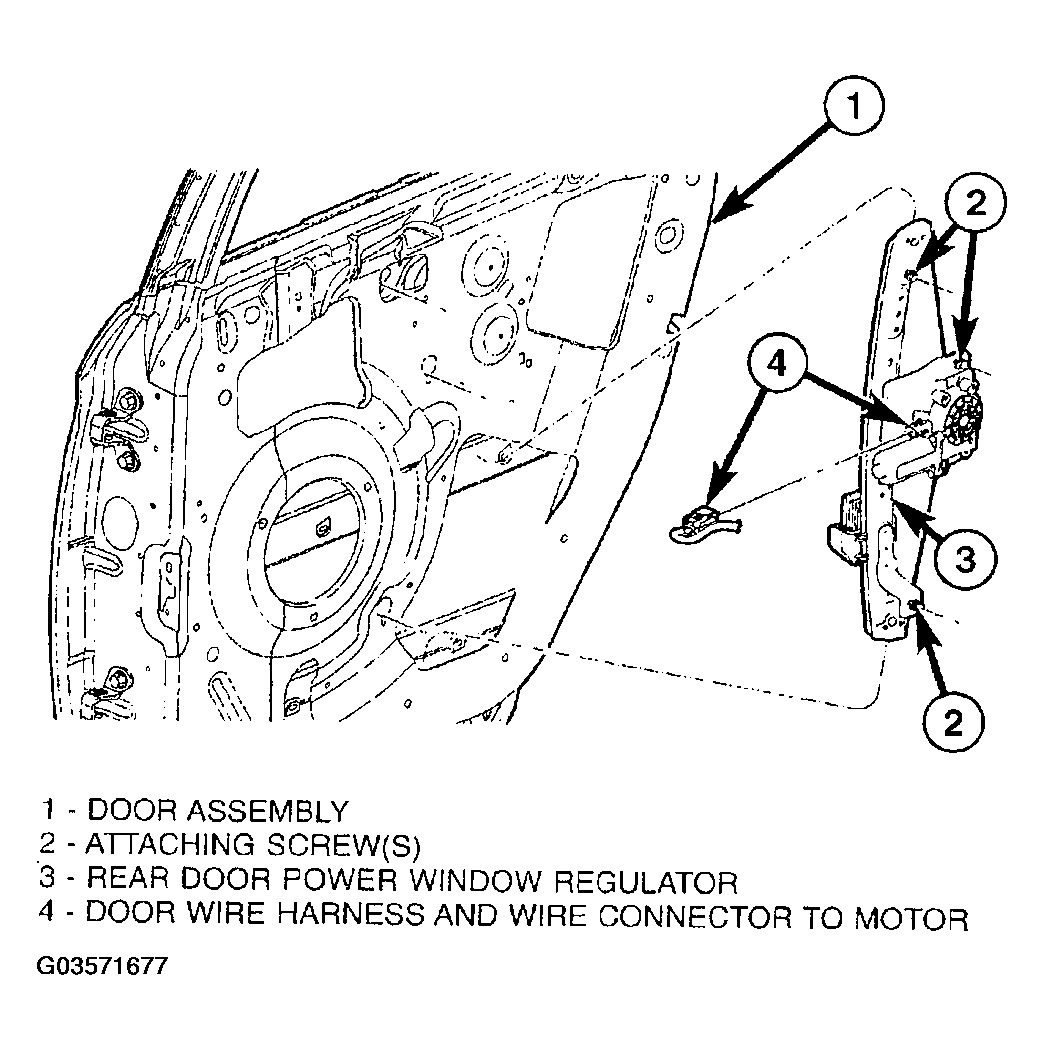

Fig 4: Identifying Rear Door Window Regulator
Courtesy of DAIMLERCHRYSLER CORP.
Install inner belt molding. (Refer to REAR DOOR INNER BELT MOLDING WEATHERSTRIP ).
Install watershield. (Refer to INSTALLATION ).
Install door trim panel. (Refer to INSTALLATION ).
