Low Oil Pressure Indicator Always on

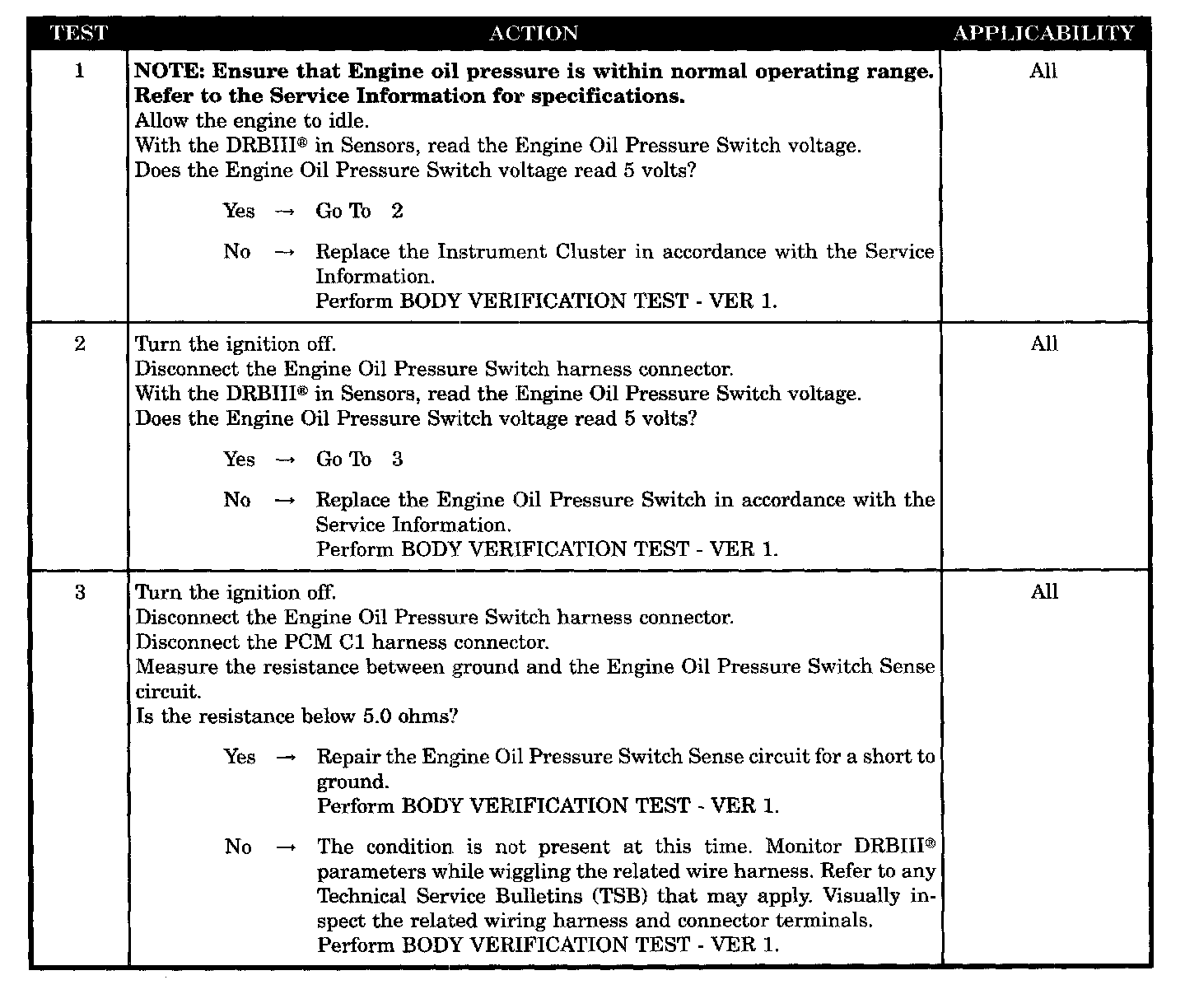

Test 1 - 3:






SYMPTOM
LOW OIL PRESSURE INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Engine oil pressure switch
- Intermittent condition
- Engine oil pressure switch sense circuit short to ground
- Instrument cluster
