Instrument Cluster Dimming Inoperative

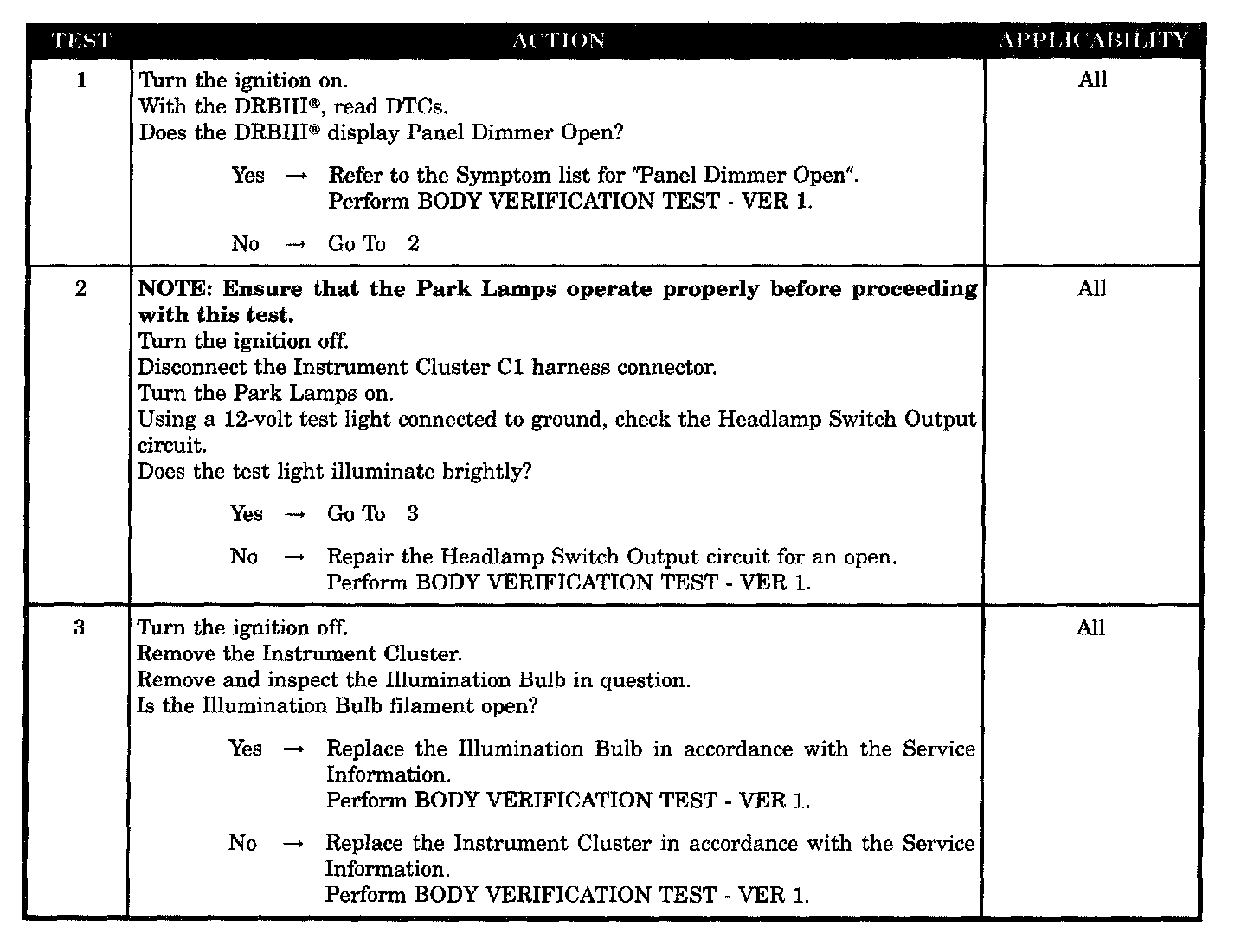

Test 1 - 3:






SYMPTOM
INSTRUMENT CLUSTER DIMMING INOPERATIVE

POSSIBLE CAUSES
- DTC present
- Headlamp switch output circuit open
- Illumination bulb
- Instrument cluster
