Home >> Chrysler >> 2004 >> PT Cruiser L4-2.4L VIN B >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

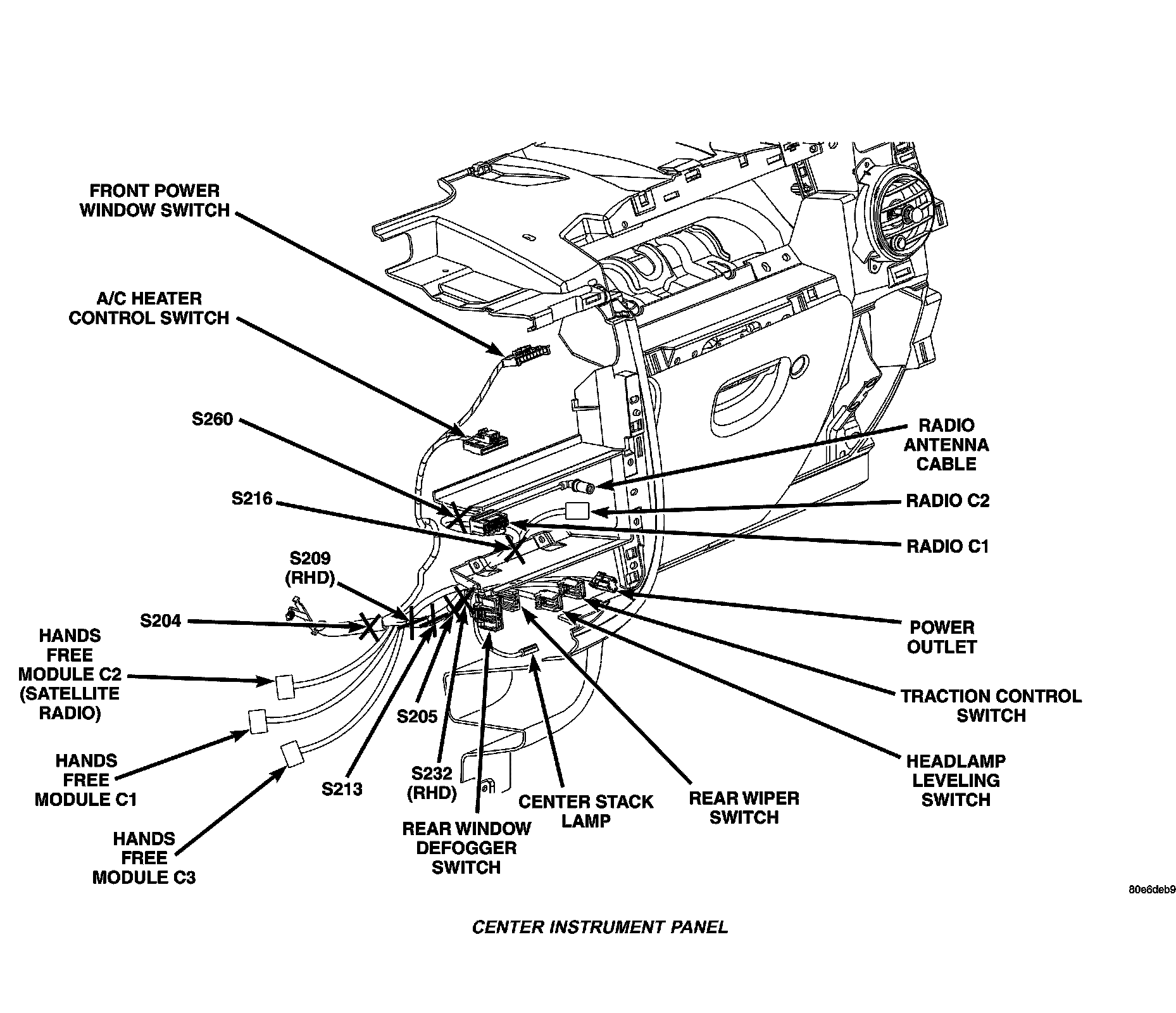

Center Instrument Panel:

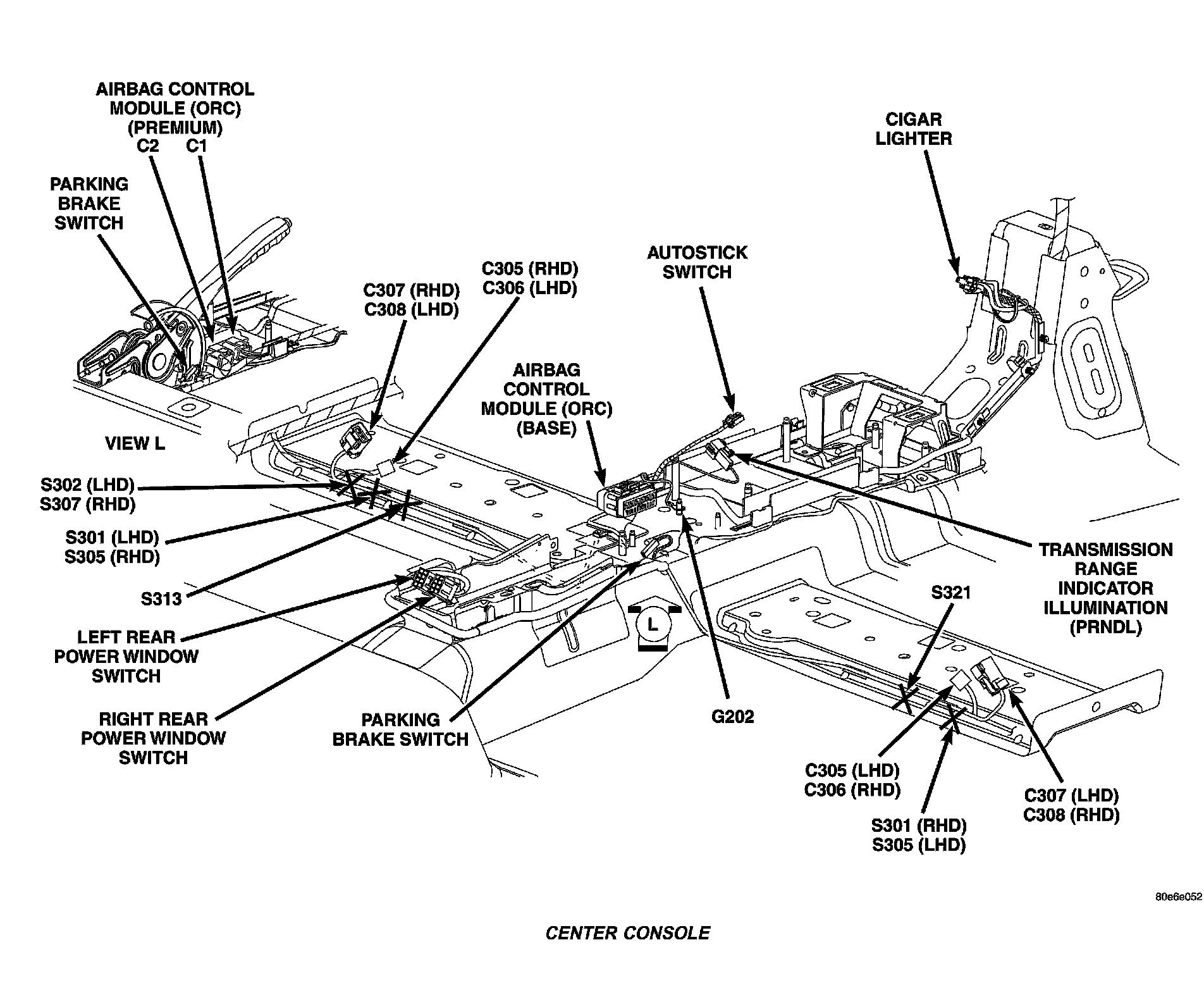

Center Console:
