Chrysler
>>
2004
>>
PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

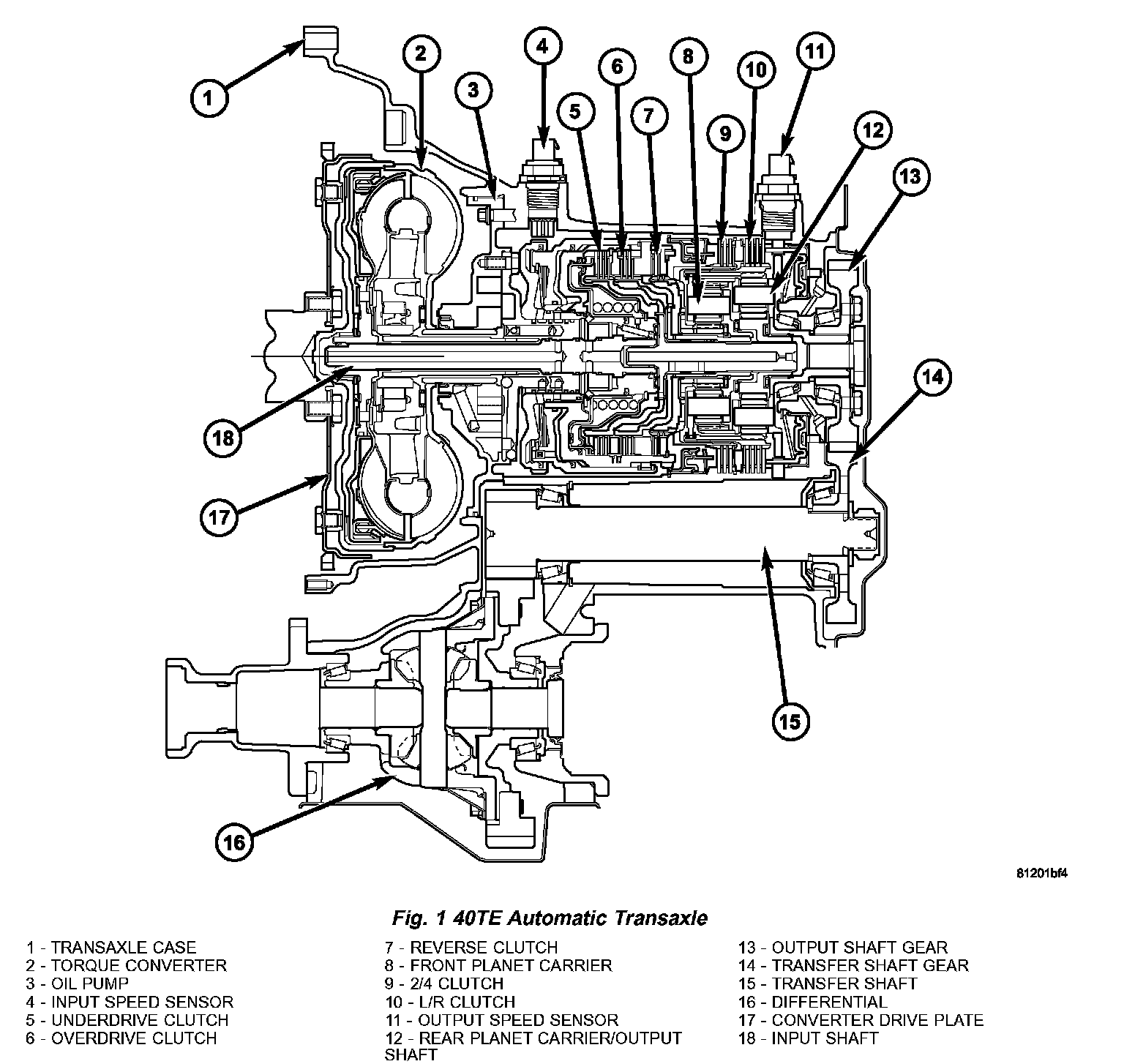

System Diagram
System Diagram
