Power Sunroof Module C2 Connector End View

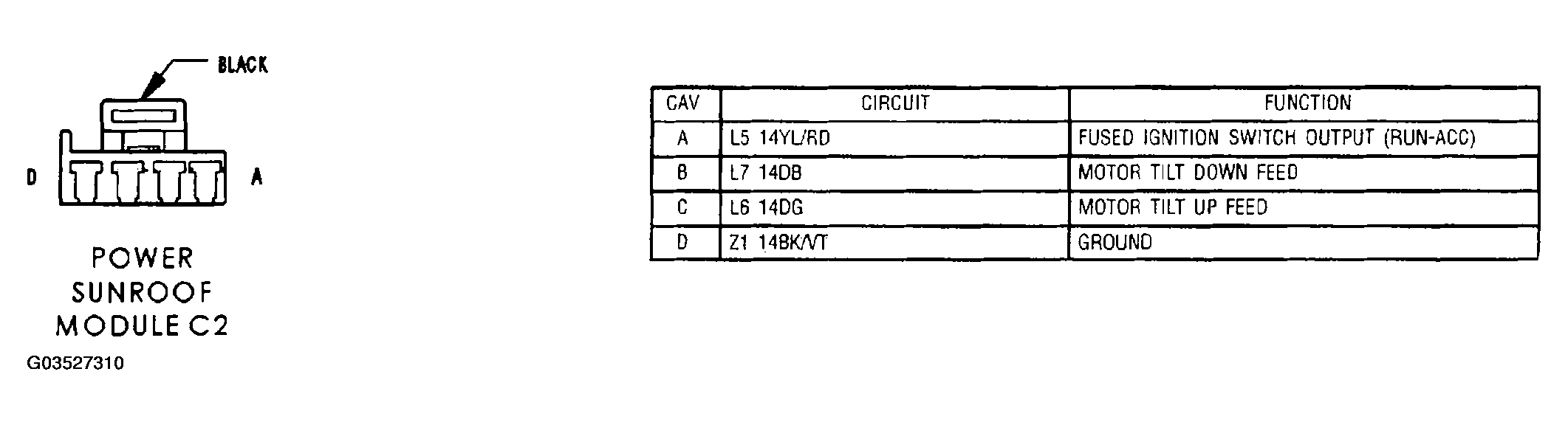

Fig 1: Power Sunroof Module Connector End View (C2)

G03527310

Courtesy of DAIMLERCHRYSLER CORP.
