A/C Heater Control Switch Connector End View

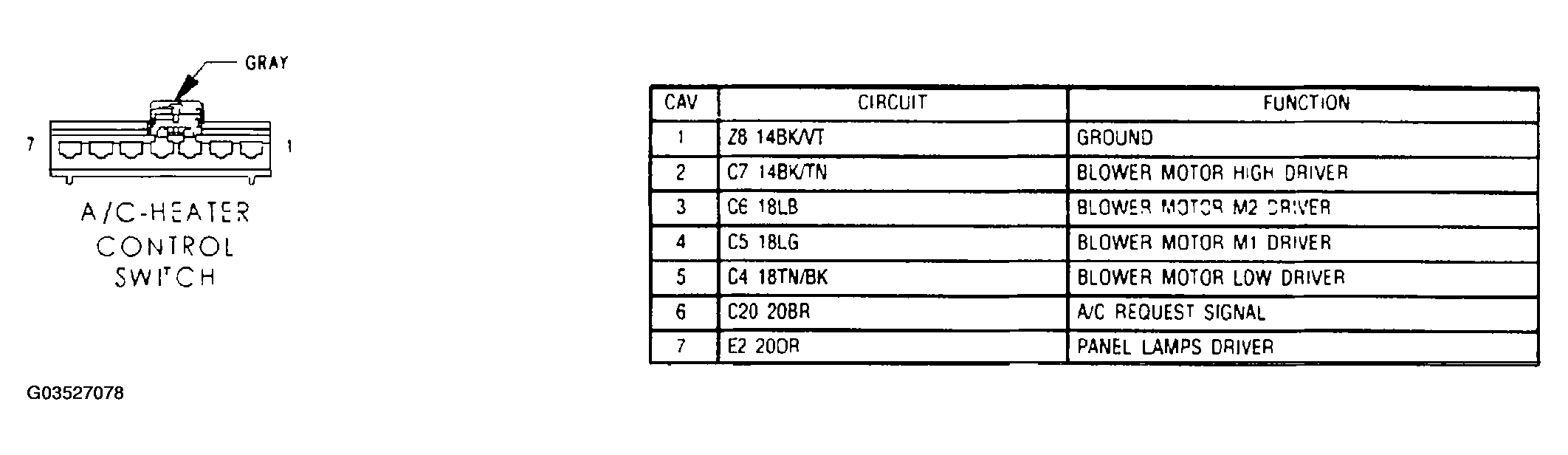

Fig 1: A/C Heater Control Switch Connector End View

G03527078

Courtesy of DAIMLERCHRYSLER CORP.
