Overhead Console Module Connector End View

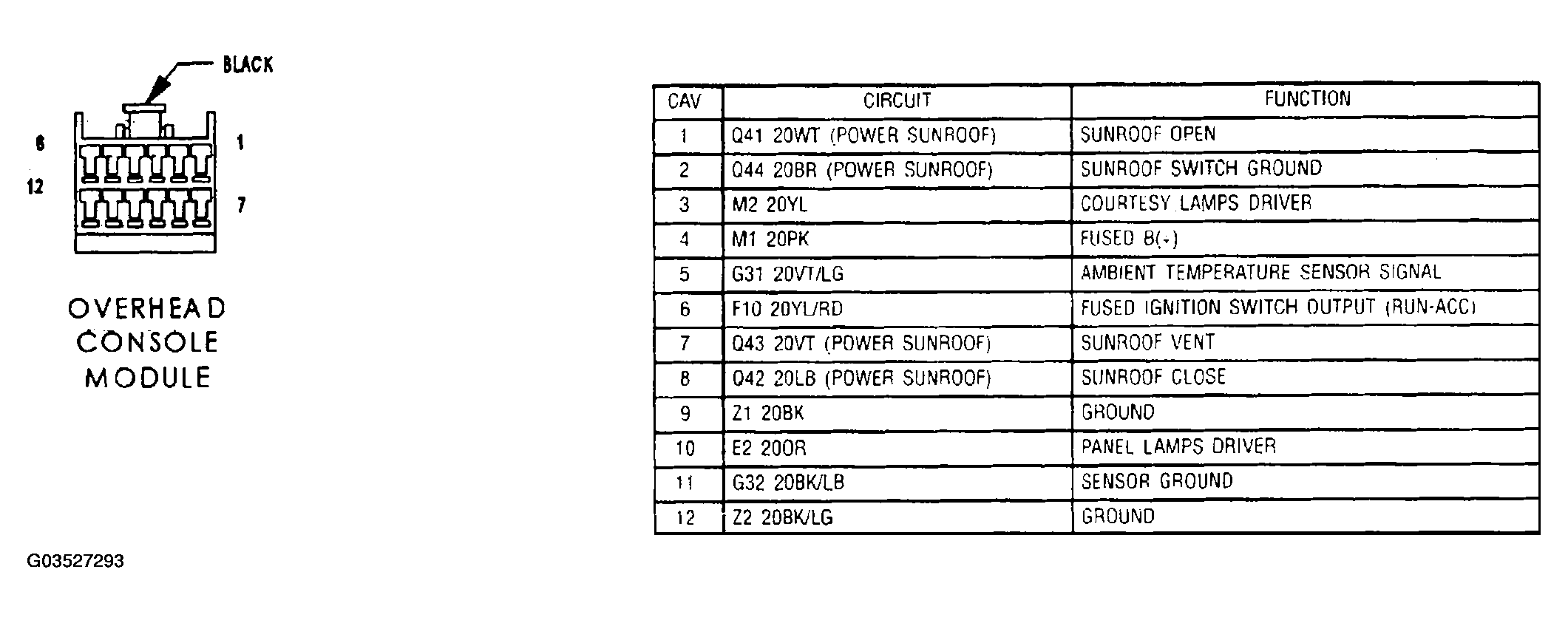

Fig 1: Overhead Console Module Connector End View

G03527293

Courtesy of DAIMLERCHRYSLER CORP.
