Data Link Connector Connector End View

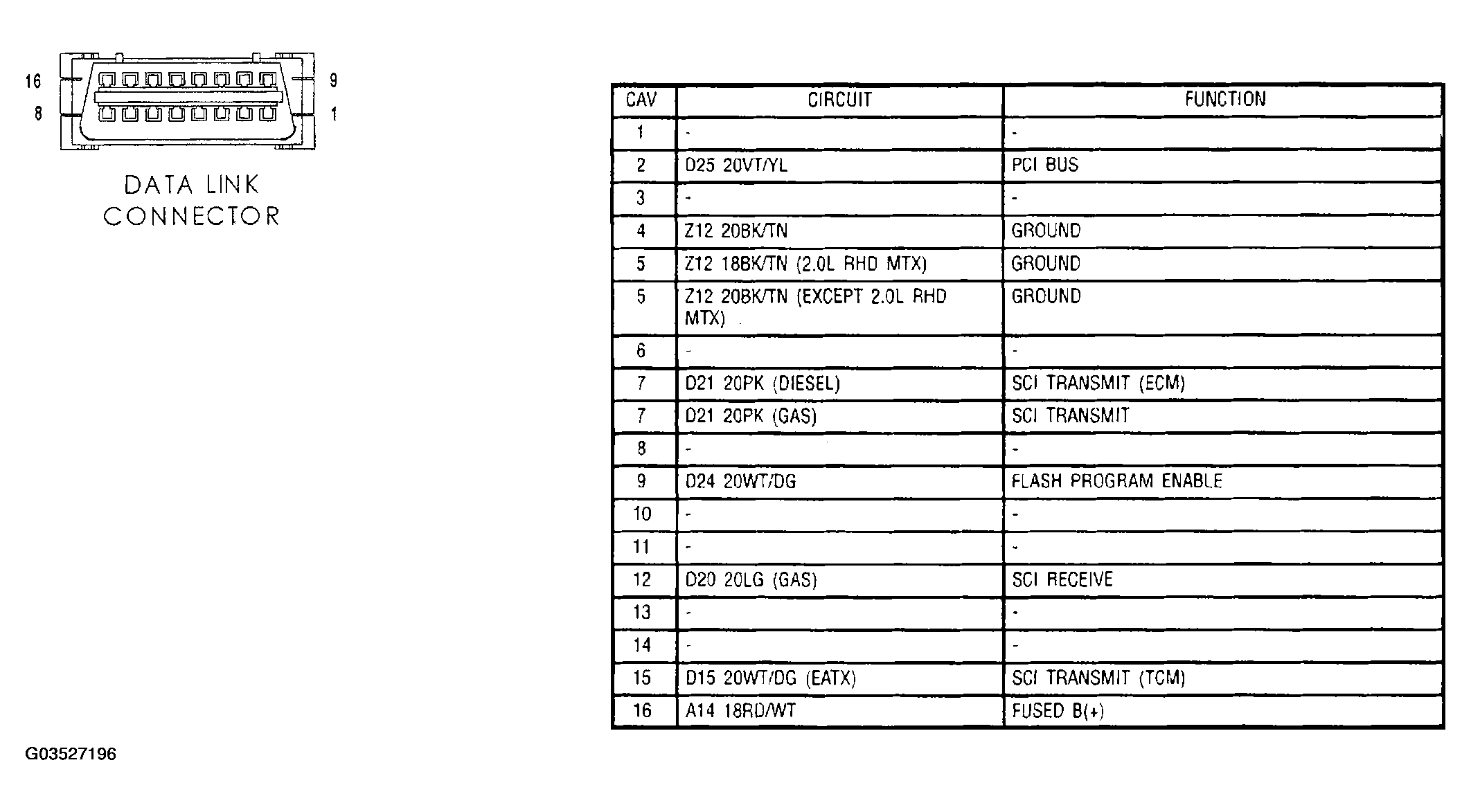

Fig 1: Data Link Connector End View

G03527196

Courtesy of DAIMLERCHRYSLER CORP.
