Controller Antilock Brake Connector End View

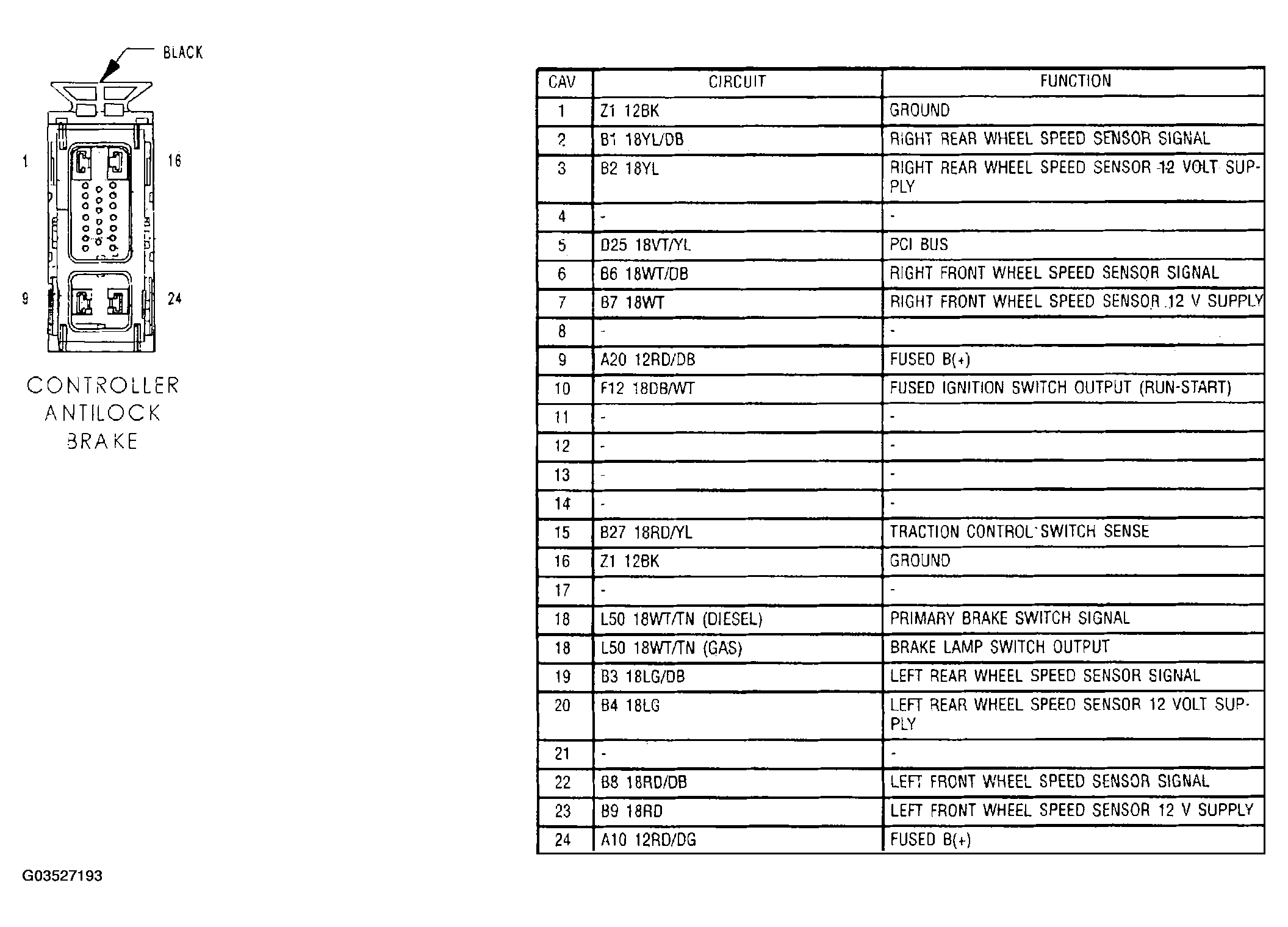

Fig 1: Antilock Brake Controller Connector End View

G03527193

Courtesy of DAIMLERCHRYSLER CORP.
