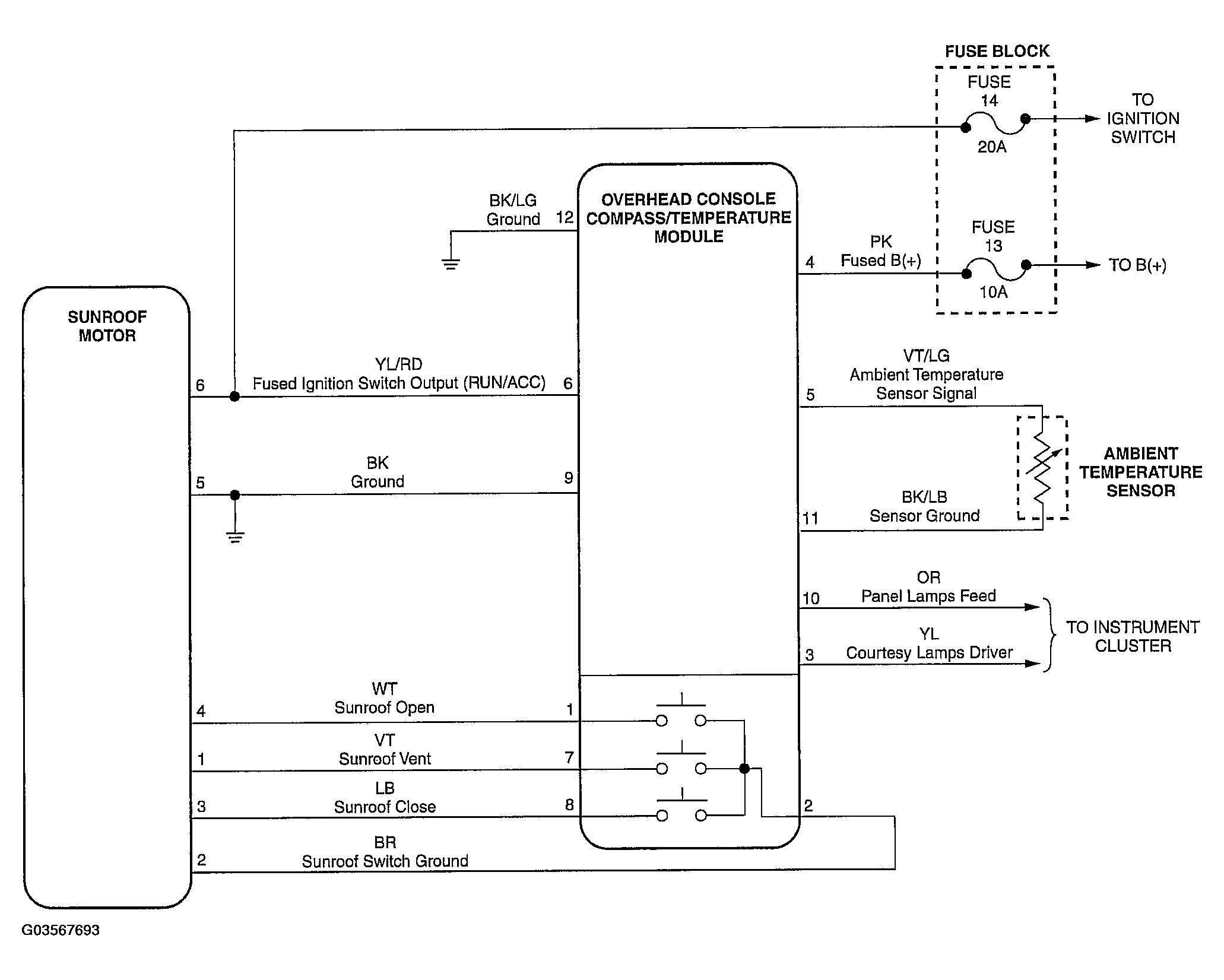

Home >> Chrysler >> 2004 >> PT Cruiser Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Schematic Diagrams >> Compass/Temperature Module
