Oxygen Sensor 1/2 Right Bank Down

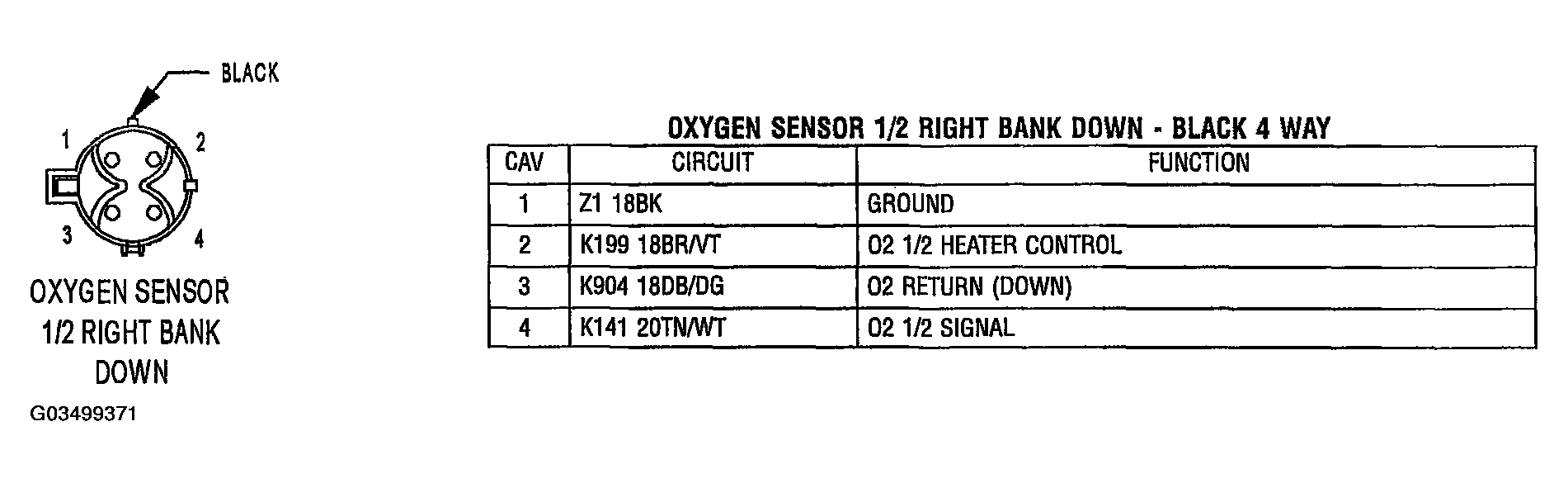

Fig 1: Identifying Oxygen Sensor 1/2 Right Bank Down Sensor Connector

G03499371

Courtesy of DAIMLERCHRYSLER CORP.
