Home >> Chrysler >> 2004 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

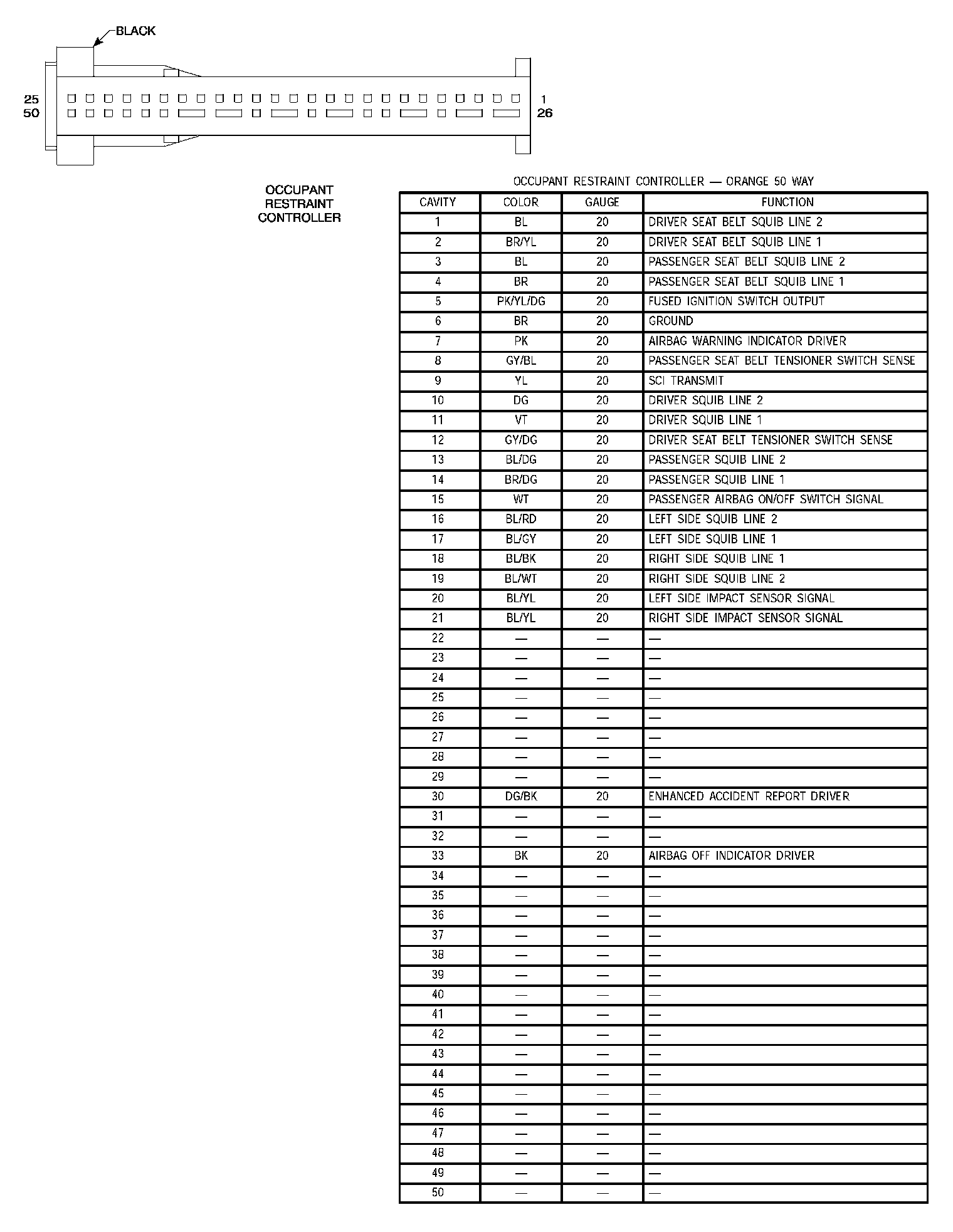

Air Bag Control Module

Coolant Restraint Controller:
