Engine Cooling System & Automatic Transmission Cooling System: Engine: Radiator: Installation

  1. Position the radiator in vehicle.
  2. Connect the lower radiator hose (7) and the coolant recovery reservoir hose (5).
  3. Connect the upper radiator hose (4).

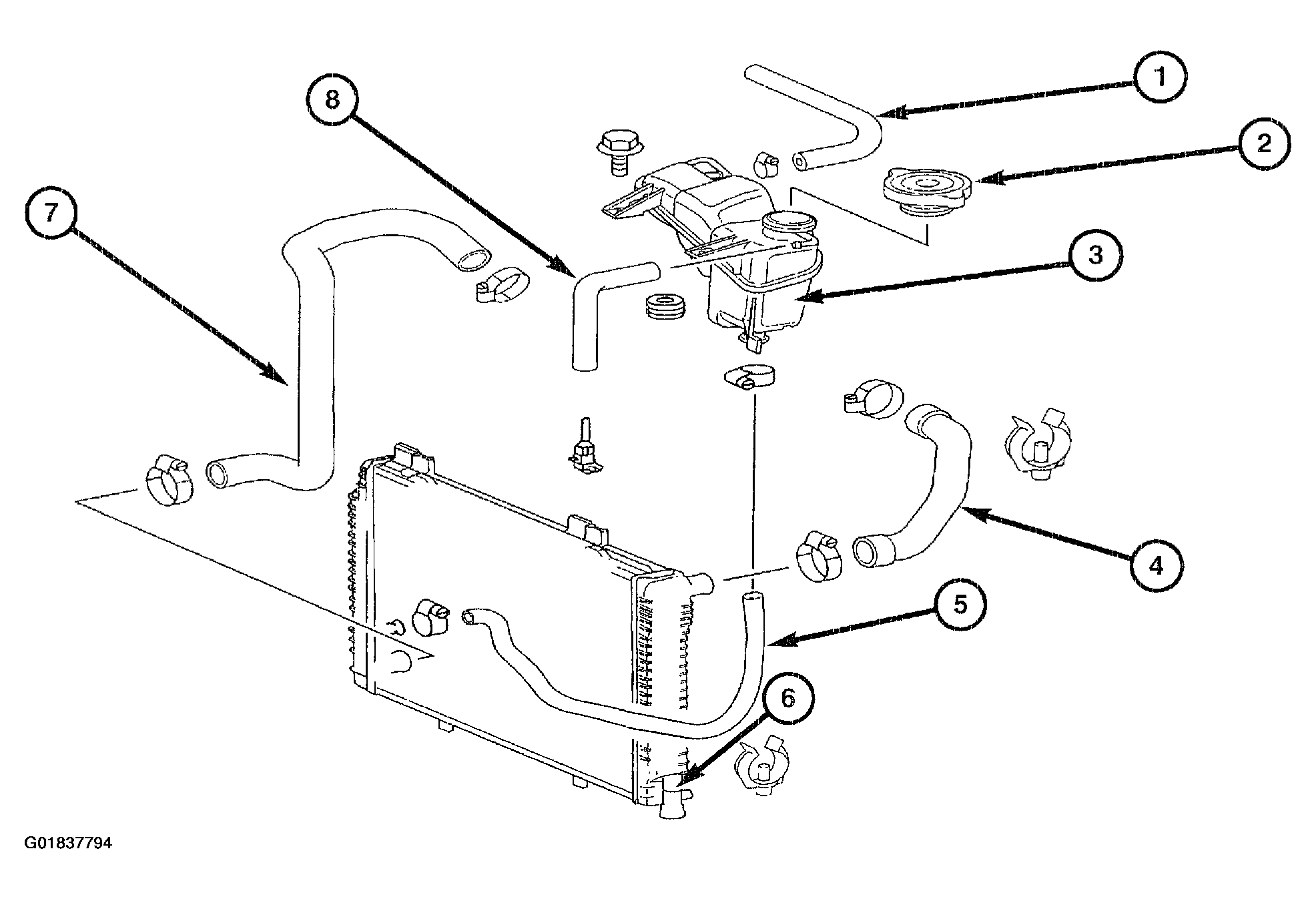

    Fig 1: Installing Radiator Components
    G01837794Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the A/C condenser to the radiator retaining bolts. Tighten the bolts to 10 N.m (89 in. lbs.).
  5. Install the radiator retaining clamps (1).

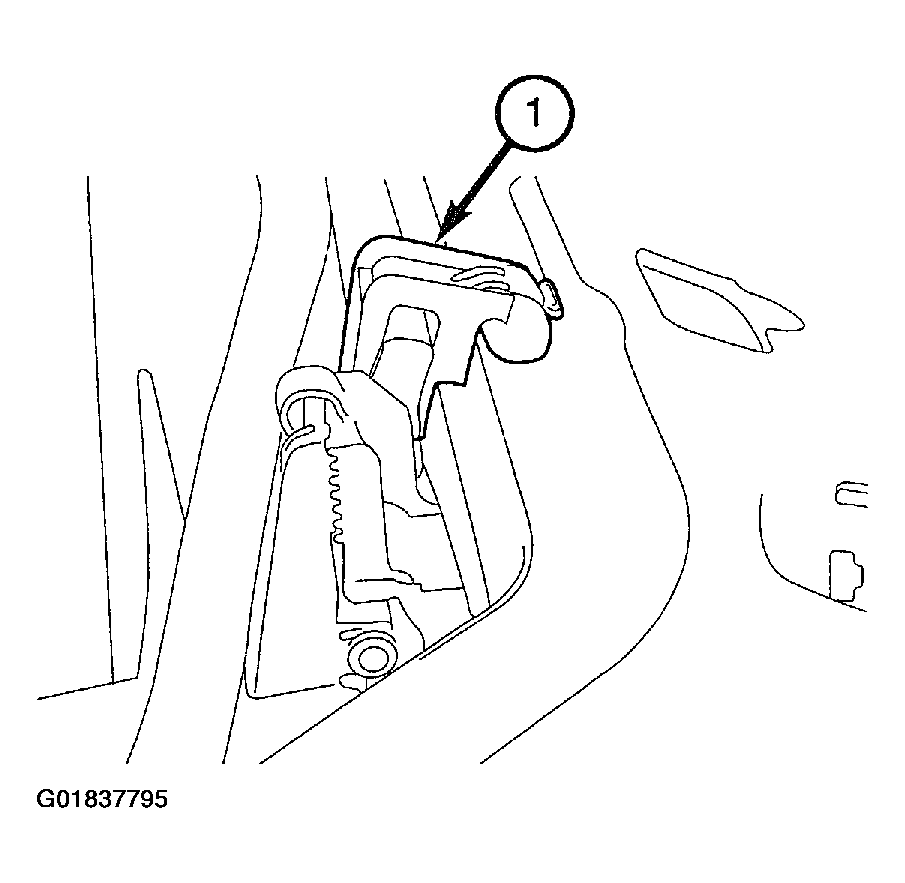

    Fig 2: Installing Radiator Retaining Clamps
    G01837795Courtesy of DAIMLERCHRYSLER CORP.
  6. Install the radiator fan. See RADIATOR FAN .
  7. Connect the transmission cooler lines (automatic transmission only). See TRANSMISSION COOLER LINES .
  8. Install the air inlet tubes.
  9. Fill the cooling system. See REFILLING COOLING SYSTEM .
  10. Connect the negative battery cable.
  11. Start the engine and check for coolant leaks.
  12. Recheck the coolant level.
