Engine Cooling System & Automatic Transmission Cooling System: Engine: Radiator: Description

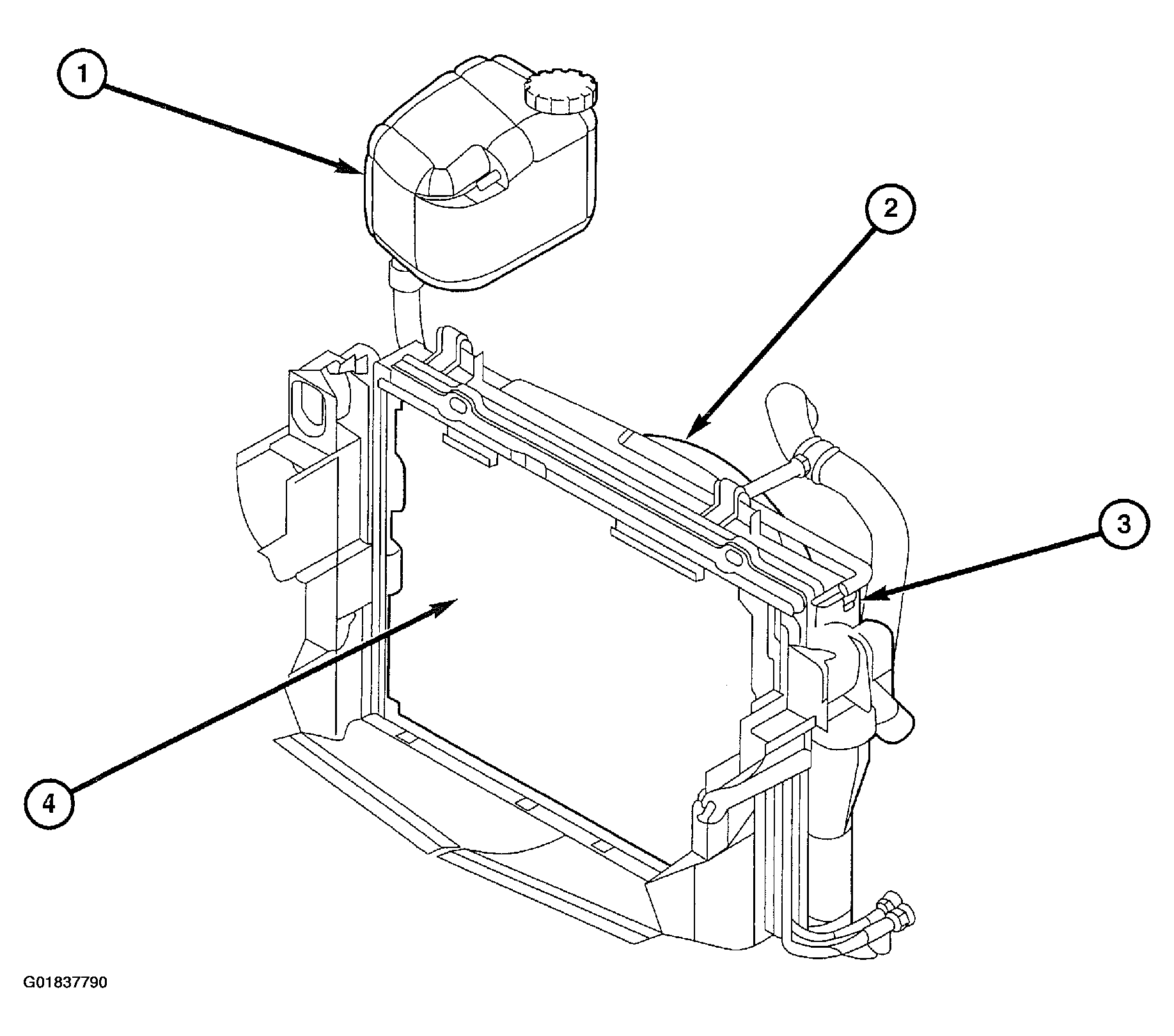

The Crossfire has a cross flow type radiator (4) with plastic side tanks (3).
Plastic tanks, while stronger than brass, are subject to damage by impact, such as from tools or wrenches. Handle radiator with care.
Courtesy of DAIMLERCHRYSLER CORP.
