Coolant Level Sensor: Installation

  1. Lubricate the new coolant level sensor O-ring with coolant.
  2. Push the coolant level sensor (2) into the coolant recovery reservoir until it snaps into place.
  3. Connect the coolant level sensor harness connector (1).

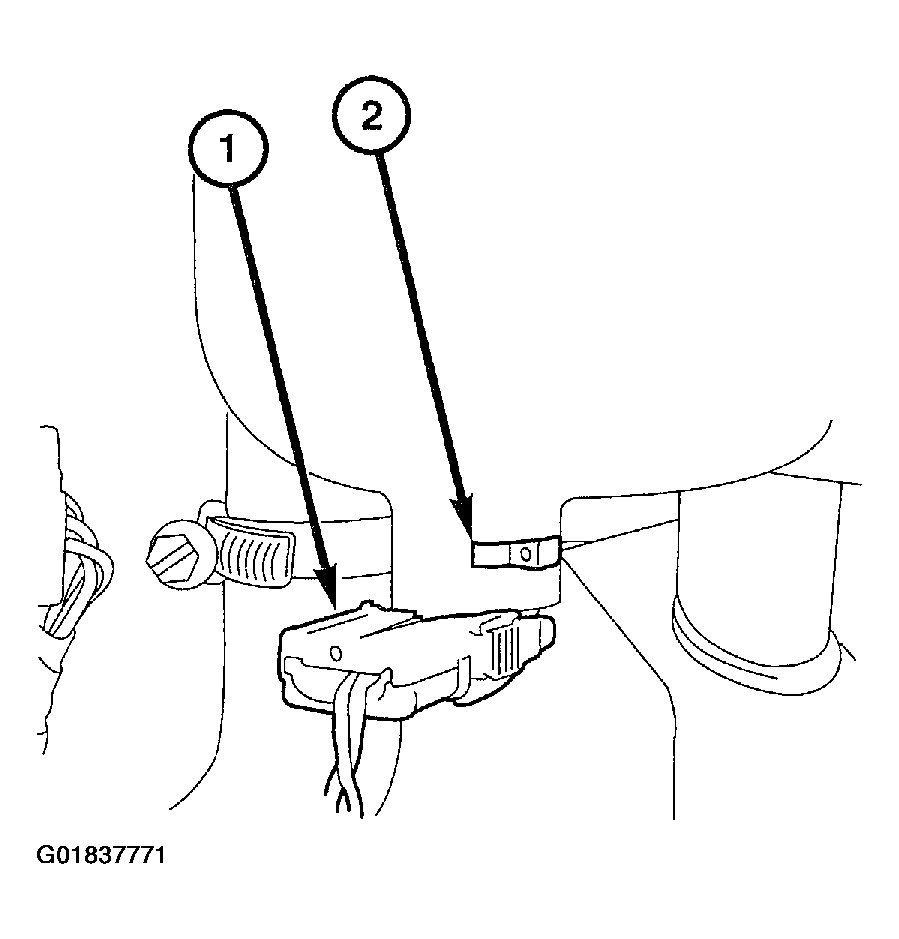

    Fig 1: Installing Coolant Level Sensor
    G01837771Courtesy of DAIMLERCHRYSLER CORP.
  4. Refill the cooling system. See STANDARD PROCEDURE - REFILLING COOLING SYSTEM .
  5. Start the engine and check for coolant leaks.
  6. Recheck the coolant level and adjust as necessary.
