Body Control Module Connector End View (C3)

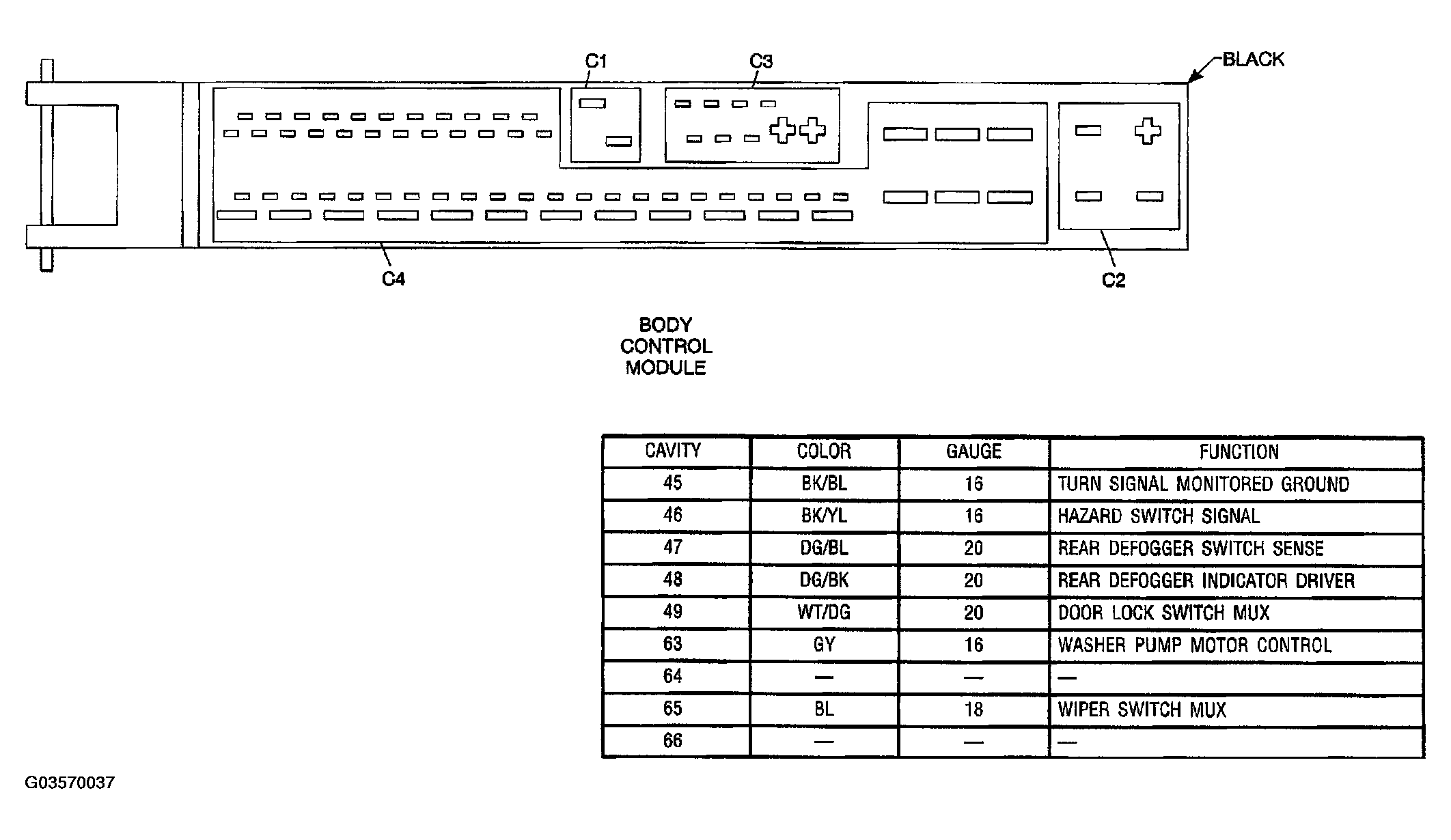

Fig 1: Body Control Module Connector End View (C3)

G03570037

Courtesy of DAIMLERCHRYSLER CORP.
