Power Lock Switch: Removal

WARNING: SEE AIR BAG RESTRAINT SYSTEMS ARTICLE BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect the negative battery cable.
  2. Remove the center console interior trim panel. See BODY .
  3. Disconnect the power lock switch harness connectors (1).

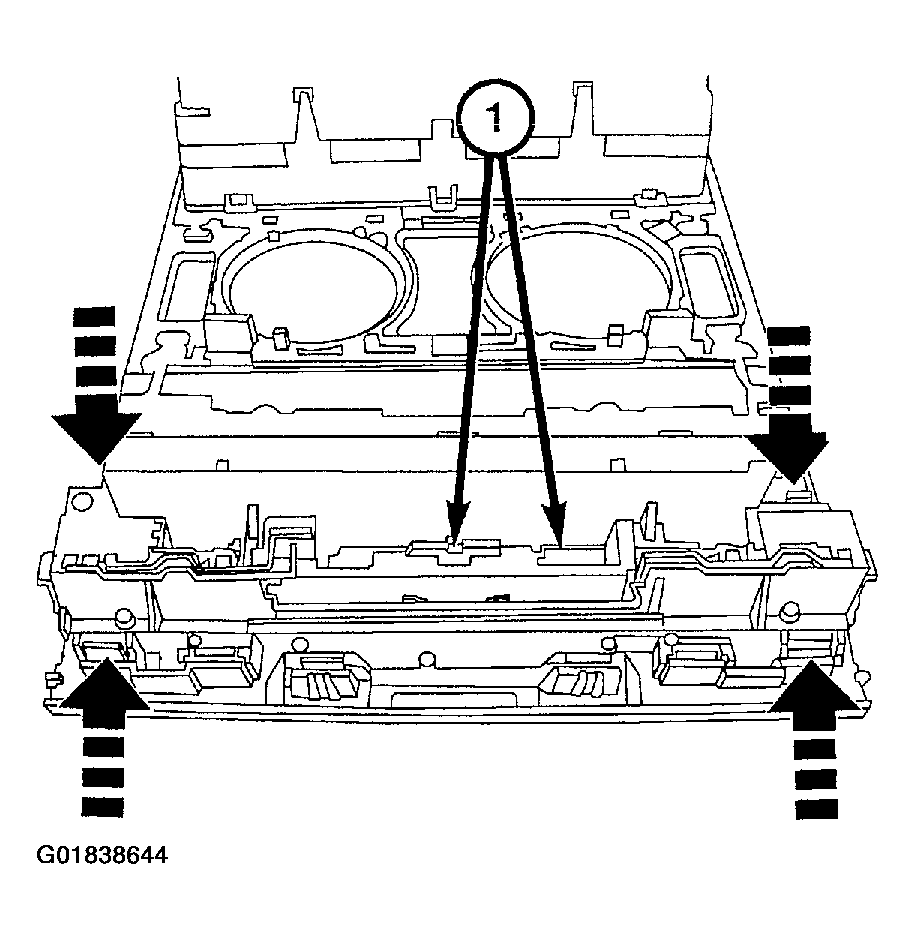

    Fig 1: Removing Power Lock Switch
    G01838644Courtesy of DAIMLERCHRYSLER CORP.
  4. Press the locking tabs inward and remove the outer gang of switches.
  5. Press the locking tabs inward and remove the power lock switch from the trim panel.
