Home >> Chrysler >> 2003 >> Voyager L4-2.4L VIN B >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

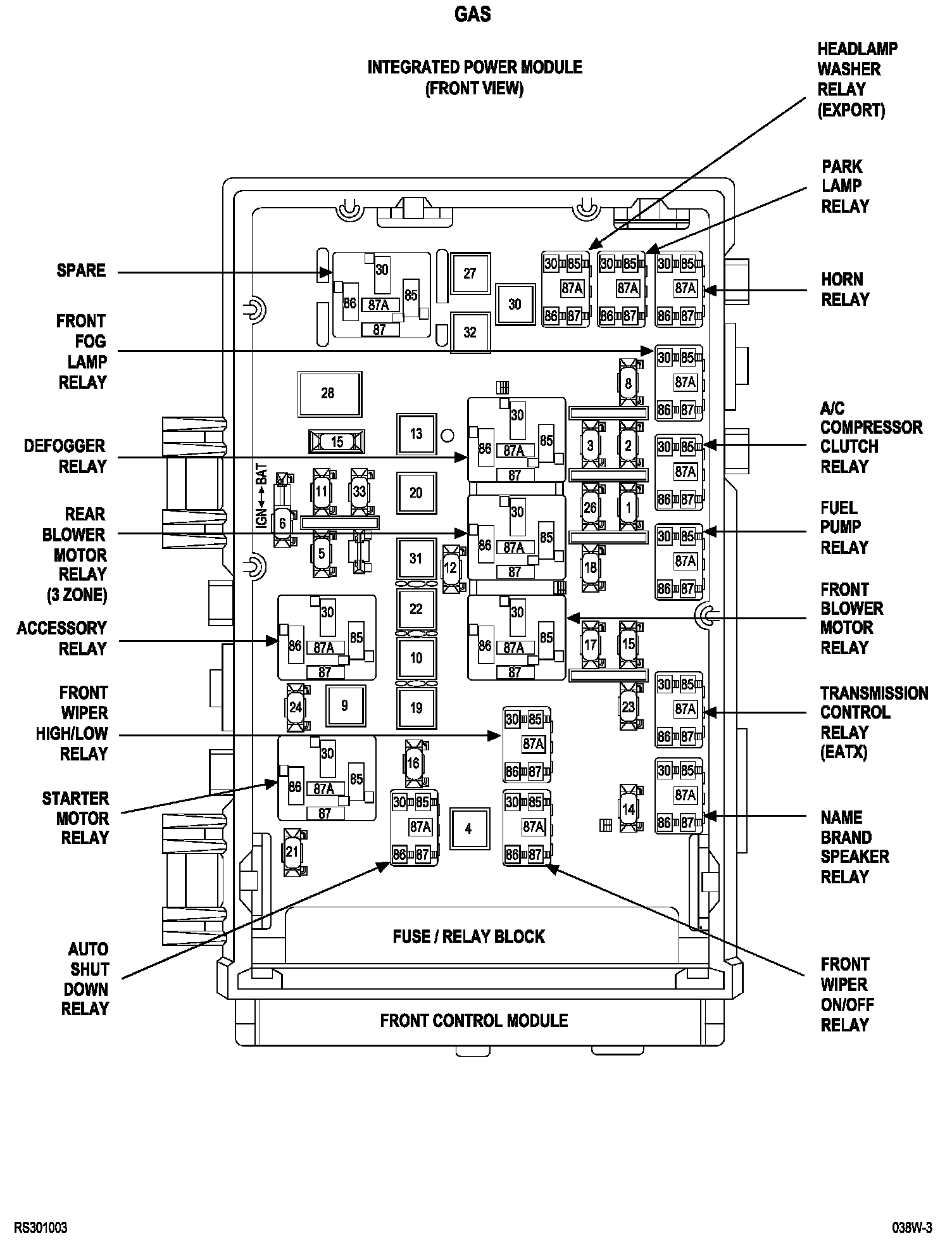

8w-10-3 Integrated Power Module (Front View):



Front Wiper High/Low Relay:
