Inspection Procedure Using an Oscilloscope
Inspection Procedure Using an Oscilloscope

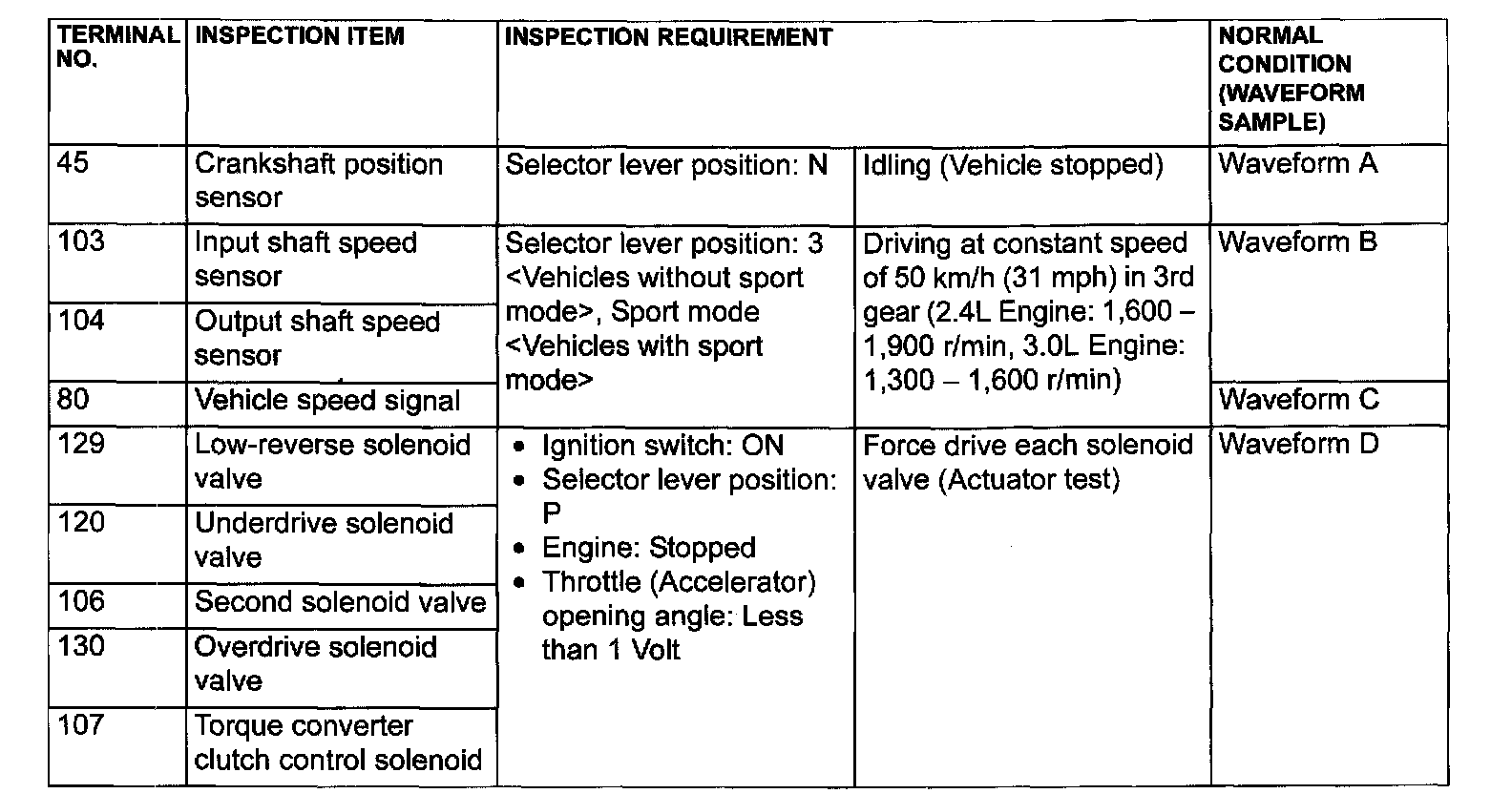

INSPECTION PROCEDURE USING AN OSCILLOSCOPE
Waveform sample
