Component Locations

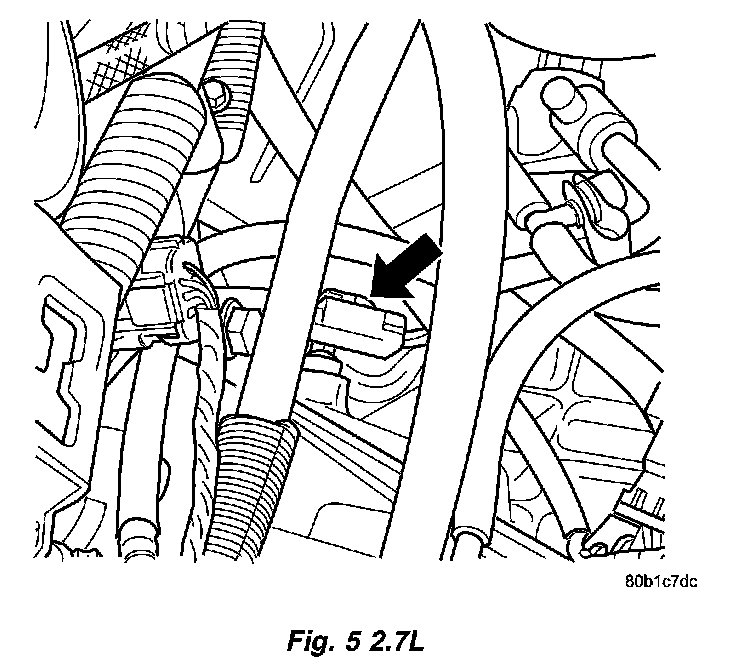

Fig.5 2.7L:




This crankshaft sensor is located on the rear of the transmission housing, above the differential housing.
