Home >> Chrysler >> 2003 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Specifications

Evaporative Emissions System: Specifications

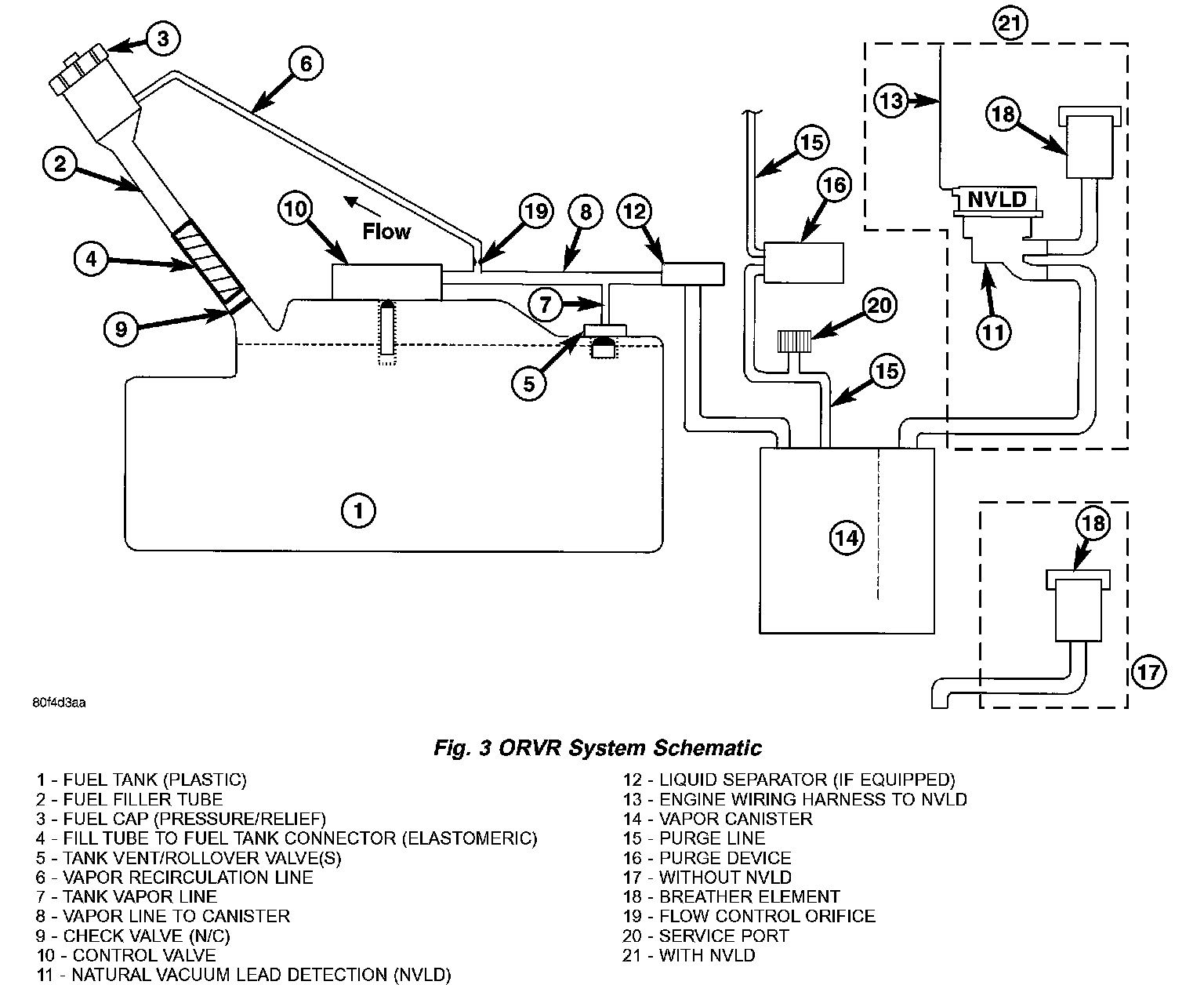

Fig.3 ORVR System Schematic:
